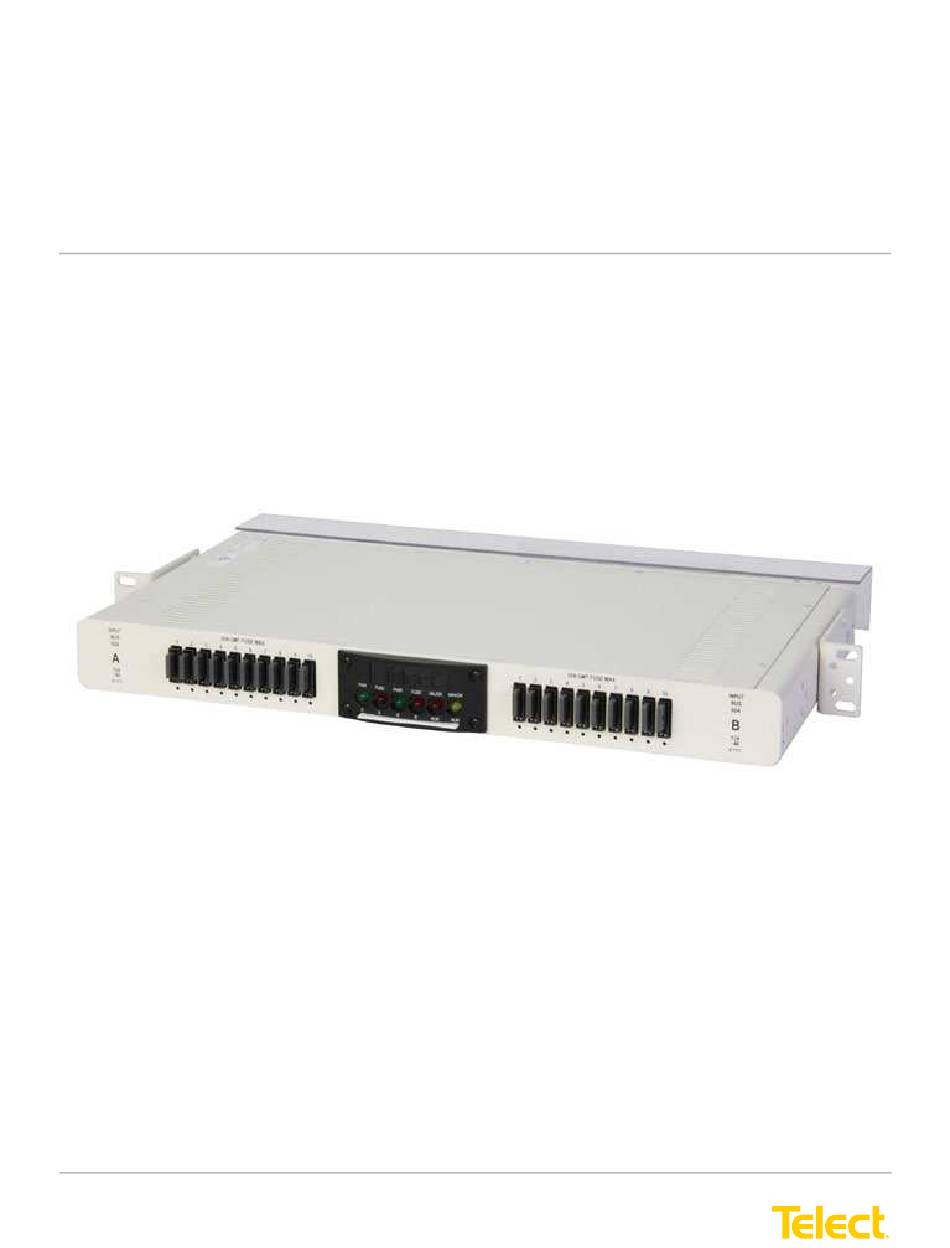

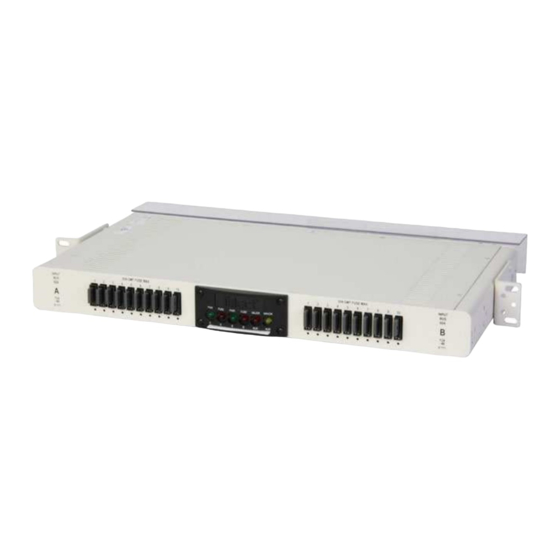

100A/60A Universal Voltage GMT Fuse Panels
With Enhanced Power/Fuse & Bay Alarms
Power :: HPGMTXX & GMTXX
Installation Guide
Applies to : GMT10 :: GMT10FA :: GMT20 :: GMT20S :: HPGMT10-BLK :: HPGMT20 :: HPGMT20RC :: HPGMT20S
© Telect, Inc., All Rights Reserved, 132152-12 A0
1.509.926.6000 :: telect.com
Advertisement
Table of Contents
Related Manuals for Telect HPGMTXX
Summary of Contents for Telect HPGMTXX
- Page 1 With Enhanced Power/Fuse & Bay Alarms Power :: HPGMTXX & GMTXX Installation Guide Applies to : GMT10 :: GMT10FA :: GMT20 :: GMT20S :: HPGMT10-BLK :: HPGMT20 :: HPGMT20RC :: HPGMT20S © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com...
-
Page 2: Table Of Contents
Figure 17 - HPGMT10 (Typical dimensions also for GMT10, HPGMT15, & HPGMT20S) .. 18 Figure 18 - HPGMT20 ......................19 Figure 19 - HPGMT10FA .....................20 Figure 20 - GMT10FA ......................21 © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 3: Overview
Major and minor bay alarm LEDs and wirewrap terminals are controlled via an on-board relay triggered by an external switch closure. All on-board relay contacts are dry Form-C. All LEDs and alarm relays and contacts are located on an easily removable alarm card. © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 4: Figure 2 - Gmt-Series Comparison Chart
With Enhanced Power/Fuse & Bay Alarms Power :: HPGMTXX & GMTXX Telect ships phoney fuses for each GMT fuse position. Visit our website (telect.com) to order GMT fuses, fuse designation pins, and other accessories. The following table shows a comparison of the GMT-series fuses. -
Page 5: Specifications
Dry Form-C contacts (1A @ 30 Vdc, 0.3A @ 100 Vdc, 0.5A @ 125 Vac) Max. Alarm Power Rating @24V: 72 mA (1.73W) @48V: 147 mA (7.06W) Alarm Wire Size #22 to #18 AWG Alarm Terminals Wirewrap © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... - Page 6 14 lb (6.25 kg) Models GMT10FA & HPGMT20 Installed 11lb (5kg) Shipping 14 lb (6.25 kg) Environment: Operating Temperature -10°C (14°F) to 55°C (131°F) Humidity 0 to 90% and noncondensing © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com...
-
Page 7: Important Installation Guidelines
When you receive the equipment, carefully unpack it and compare it to the packaging list. Please report any defective or missing parts to Telect Quality at quality@telect.com or call 1.509.926.6000. Telect is not liable for trasit damaged. If the product is damaged, please report it to the carrier and contact Telect Quality. -
Page 8: Installation
75A (for 60A-rated feeds) and maximum 125A (for 100A-rated feeds). All panels except Models GMT10FA and HPGMT20 can be mounted in 19-in. EIA racks. Telect also offers bracket kits for WECO and ETSI racks. (See our website at telect.com.) GMT10FA and HPGMT20 only fit 23-in. racks. -
Page 9: Figure 3 - Bracket Orientation
Bracket Oriented for 23-in. Rack WARNING! Failure to properly ground this equipment can create hazardous conditions for Figure 3 - Bracket Orientation installation personnel and for the equipment. Figure 4 - Rack Mounting © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 10: Figure 5 - Ground Lug Connection
Connect lugs to input BATT and RTN terminals on the panel. e. Torque KEPS nuts to ~50 in.-lb (~5.6 N•m), max. 11. Make sure GMT fuse positions are either empty or contain dummy fuses (phoney, inoperative, all-plastic slugs). © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 11: Figure 6 - Input Connections On A 100A Panel
ALERT! Only service personnel may replace fuses. The installer must verify that a readily accessible protection device is incorporated in the building wiring feeding the fuse panel: 125A (max.) protection device for a 100A panel; 75A (max.) for a 60A panel. © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 12: Figure 8 - Status Leds On Face Of
If required, lightly coat anti-oxidant on lug/wire and output BATT and RTN terminals, and then connect to terminals. Figure 10 - Output Connections © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 13: Figure 11 - Designation Card
7.5A not exceed 80% of the fuse rating and that the load for GMT fuse sizes between 10A and 20A not exceed 70% of the fuse rating. For example, the load for a 15A GMT fuse should not exceed 10.5A (15A x 0.70 = 10.5A). © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 14: Figure 12 - Alarm Schematics (Rear Of Designation Card)
TO ALARM TO ALARM TO ALARM TO ALARM CLOSURE SYSTEM SYSTEM SYSTEM SYSTEM BAY ALARM TERMINALS ENHANCED PANEL ALARM TERMINALS Figure 12 - Alarm Schematics (Rear of Designation Card) © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 15: Accessories & Alarm Card
1.6 Accessories & Alarm Card The following lists optional and replacement items for the panel. For compression lugs, please refer to Wire Sizing & Label Convention Chart (Telect Part No. 117995) included with your panel. WARNING WARNING! Use only UL-listed fuses or UL-recognized component secondary protection devices. -
Page 16: Single-Hole Lug Part Numbers For Gmt20 Output Terminals
• Burndy TP14-2Z with a flanged, straight, forked tongue, also for #16 - #14 AWG 1.5.3 GMT Fuses For additional dummy fuses, order part number 132748. For GMT safety (splash/splatter) covers, order part number 116915 for GMT fuses up to 15A. Telect recommends using only UL-recognized supplementary protectors. GMT Fuse Part Numbers GMT Fuse Colored Designation Pin Part No. -
Page 17: Alarm Card
Faceplate & screws are not part of alarm card assembly. Figure 13 - Alarm Card 1.7 Diagrams The diagrams that follow are representative of Telect’s GMT-Series of power panels. BATT INPUT A GMT OUTPUT A BATT FUSE... -
Page 18: Dimensions
With Enhanced Power/Fuse & Bay Alarms Power :: HPGMTXX & GMTXX 1.8 Dimensions The dimensioned drawings that follow are representative of Telect’s GMT-Series of power panels. NOTES: 1. All dimensions are in in. [mm]. 2. Panel includes phoney fuses. Actual DO NOT REMOVE PLASTIC CAPS fuses are sold separately. - Page 19 V - - - 17.00 [431.8] 18.31 [465.1] 19.00 [482.6] 22.31 [566.7] 23.00 [584.2] F R ONT V IE W HPGMT10 Figure 17 - Typical Dimensions for GMT10, HPGMT10-BLK, & HPGMT20S © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com...
-
Page 20: Figure 17 - Hpgmt10 (Typical Dimensions Also For Gmt10, Hpgmt15, & Hpgmt20S)
FUSE FUSE MINOR MAJOR V- - - V- - - 21.00 [533.4] 22.31 [566.7] 23.00 [584.2] HPGMT20 F R ONT V IE W Figure 18 - HPGMT20 / HPGMT20RC © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 21: Figure 20 - Gmt10Fa
24,-48 V- - - [15.9] 10-32 Studs With KEPS Nuts & Flat Washers Barrel Connector 21.00 [533.4] 22.31 [566.7] 23.00 [584.2] GMT10FA F R ONT V IE W Figure 20 - GMT10FA © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com... -
Page 22: Figure 19 - Hpgmt10Fa
100A/60A Universal Voltage GMT Fuse Panels With Enhanced Power/Fuse & Bay Alarms Power :: HPGMTXX & GMTXX This page intentionally left blank. © Telect, Inc., All Rights Reserved, 132152-12 A0 1.509.926.6000 :: telect.com...
