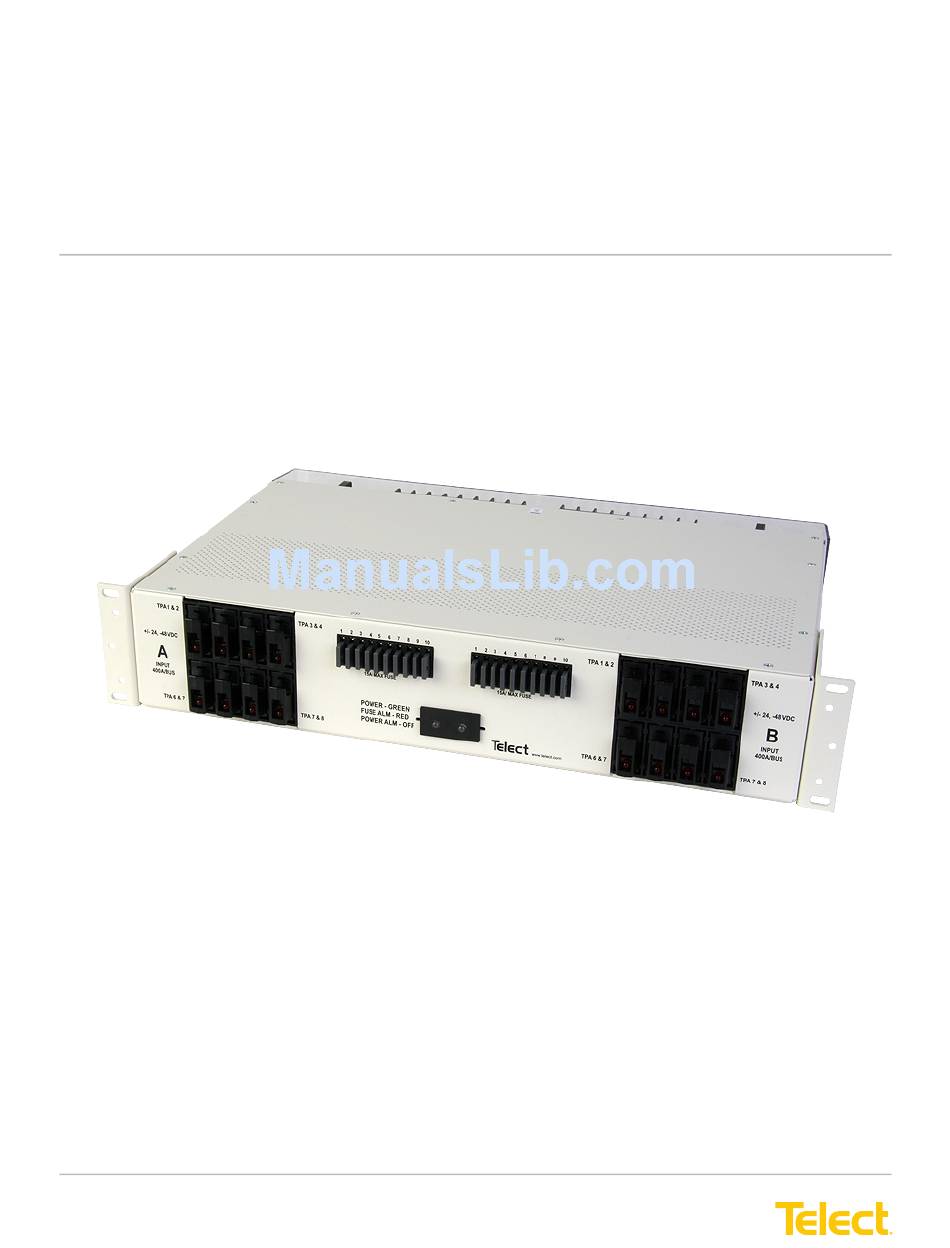

- Page 1 Dual-Feed 350A 8/8-TPA & 10/10 GMT Fuse Alarm Panel Power :: 009-8005-0810 User Manual Applys to : 009-8005-0810 © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com...
-
Page 2: Table Of Contents
Figure 8 - GMT Output Lug Connections ................7 Figure 9 - Installing TPA Fuses .....................8 Figure 10 - Installing GMT Fuses ..................8 Figure 11 - Wirewrap Alarm Terminal ..................8 © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 3: Overview
23-in. or 19-in., EIA or WECO rack. (The 19-in. rack must have an equipment mounting aperture of at least 17.5 in.) Visit our website for ordering Telect accessories: fuses (3A-50A TPA & ¼ A-15A GMT), ETSI bracket kit, spare alarm card, and more. - Page 4 * See Page 14 for exact dimensions Weight: Specifications: Weight, Without Packaging ~20 lb (~9 kg) Weight, Shipping ~22 lb (~10 kg) Environment: Specifications: Operating Temperature -10°C (14°F) to 55°C (131°F) © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com...
-
Page 5: Installation
Telect Quality at sopport@telect.com or call 1.509.926.6000. Telect is not liable for transit damaged. If the product is damaged, please report it to the carrier and contact Telect. © Telect, Inc., All Rights Reserved, 132505-5 A0... -
Page 6: Installation Procedure
5. Remove the cover WARNING Figure 3 - Rack Mounting WARNING! Failure to properly ground this equipment can create hazardous conditions for installation personnel and for the equipment. © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 7: Figure 4 - Ground Lug Connection
12. See Section “1.4.1 Compression Lugs” on page 11 to select your lugs. Insulate the lug barrels with UL94 V-0 rated heat-shrink tubing. 13. Clean the terminals and lugs with a non-abrasive, non-metallic pad. 14. If required, lightly coat anti-oxidant on lugs and input BATT and RTN terminals. © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 8: Figure 5 - Input Lugs
• Expect continuity (0Ω) between Terminals C and NC. Figure 6 - Disengaging a TPA Fuse Holder • Expect an open circuit (00Ω) between Terminals C and NO. FUSE FUSE To Alarm System To Alarm © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 9: Figure 7 - Tpa Output Lug Connections
7.5A not exceed 80% of the fuse rating and that the load for GMT fuse sizes between 10A and 15A not exceed 70% of the fuse rating. For example, the load for a 15A GMT fuse should not exceed 10.5A (15A x .70 = 10.5A). © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 10: Figure 9 - Installing Tpa Fuses
41. Turn on equipment loads one at a time to verify the To Alarm System To Alarm System proper operation of the loads. Figure 11 - Wirewrap Alarm Terminal Connections (Typical) © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 11: Accessories
1.3 Accessories The following tables list optional and replacement items for the panel. For wire sizing and labelling, please refer to Wire Sizing &, Label Convention Chart (Telect Part No. 117995) included with your panel. WARNING WARNING! Use only UL-listed fuses or UL-recognized component secondary protection devices. -
Page 12: Compression Lugs
(Burndy Die CodeL115) Panduit LCD400-38D-6 LCD500-38D-6 LCDN750-38D-6 (Panduit/T&B Die (Panduit/T&B Die (Panduit/T&B Die Code 76) Code 87) Code 106) (Burndy Die Code 19) (Burndy Die Code 20) (Burndy Die Code 24) © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... - Page 13 † 50 Count Table 6 - GMT Output Ring Lugs for #6 Screw Terminals (Nylon Insulated Except as Footnoted) #26-22 AWG #22-16 AWG #16-14 AWG Panduit PN22-6R-C Ring* PK18-6R-C Ring* ** PN14-6R-C Ring* 326878 36151 320561 Burndy YAE18N21BOX YAE14N43BOX * 100 Count ** KYNAR Insulation © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com...
-
Page 14: Schematic Drawing
REMOVABLE ALARM CARD PWR B FUSE GMT OUTPUT BATT B GMT OUTPUT RTN B TPA OUTPUT BATT B TPA FUSE HOLDER LEDS TPA OUTPUT RTN B BATT C GND INPUT B © Telect, Inc., All Rights Reserved, 132505-5 A0 1.509.926.6000 :: telect.com... -
Page 15: Assembly Drawing
TPA 7 & 8 FRONT VIEW Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
