Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel
Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L ::
009-1000-1033RE (End of Life June 30, 2015)
Installation Guide
Applies to: 009-8005-0404, 009-8005-0404G, 009-8005-0404L, and 009-1000-1033RE
© Telect, Inc., All Rights Reserved, 123518-9 A0
1.509.926.6000 :: telect.com

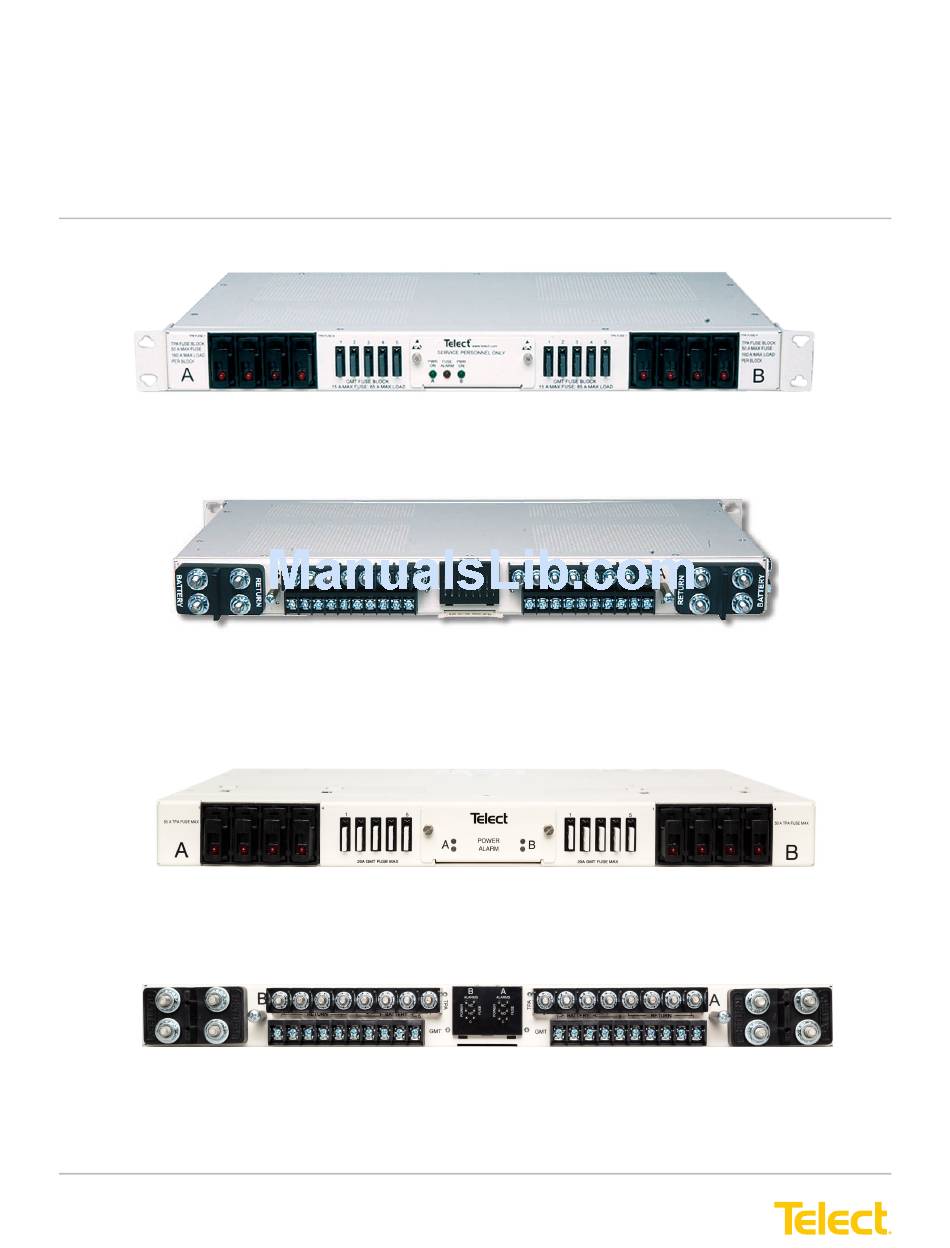

Fuse Alarm Panel - 009-8005-0404
Front view
Fuse Alarm Panel - 009-8005-0404
Rear view
Fuse Alarm Panel - 009-8005-0404G
Front view
Fuse Alarm Panel - 009-8005-0404G
Rear view
(End of Life June 30, 2015)
Advertisement
Table of Contents
Related Manuals for Telect 009-8005-0404
Summary of Contents for Telect 009-8005-0404
-
Page 1: Installation Guide
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L :: 009-1000-1033RE (End of Life June 30, 2015) Installation Guide Fuse Alarm Panel - 009-8005-0404 Front view Fuse Alarm Panel - 009-8005-0404 Rear view Fuse Alarm Panel - 009-8005-0404G... -
Page 2: Table Of Contents
Figure 7 - Disengaging a TPA Fuse Holder ................7 Figure 8 - Alarm Indicators 009-8005-0404 ................7 Figure 9 - Alarm Reference Card and Terminals 009-8005-0404 ..........8 Figure 10 - Alarm Indicators 009-8005-0404G ..............9 Figure 11 - Power Alarm Terminals 009-8004-0404G ............9 Figure 12 - TPA Output Lug Connections ................ -
Page 3: Specifications
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L Telect’s dual 200A fuse alarm panels provide power protection for a variety of telecommunications equipment. Panels include 8 TPA output fuse holders (4 per side) and 10 GMT fuse holders (5 per side). Sides A and... - Page 4 Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L GMT Outputs Specifications Max. GMT Output Fuse (ea.) 009-8005-0404 and 009-8005-0404L 009-8005-0404G Max. GMT Output Load (ea.) - continuous 009-8005-0404 and 009-8005-0404L 10.5A 009-8005-0404G Max. Total GMT Output Load...
- Page 5 Hardware is included for flush or extended mounting in 19" or 23" relay racks. Due to it’s depth and weight, mounting rails are recommended for model 009-8005-0404L. Visit our website to order Telect accessories and replaceable parts: output fuses (3A-50A TPA; 1⁄4A-20A GMT), dummy fuses, lugs, ETSI mounting kit, and more.
-
Page 6: Important Installation Guidelines
When you receive the equipment, carefully unpack it and compare it to the packaging list. Please report any defective or missing parts to Telect Quality at quality@telect.com or call 1.509.926.6000. Telect is not liable for transit damaged. If the product is damaged, please report it to the carrier and contact Telect Quality. -
Page 7: Installation
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 1.3 Installation Panel brackets provide flush or extended EIA or WECO mounting in a 19 or 23 in. rack. The panel is configured at the factory for 1 in. extended mounting in a 19 in. rack. -
Page 8: Figure 5 - Ground Lug Connection
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L If required, lightly coat anti-oxidant on the lug and grounding surface on the side of the panel. 8. Connect the lug using the 1⁄4"-20 bolt, split ring washer and flat washer provided, as shown in Figure 5. -
Page 9: Figure 7 - Disengaging A Tpa Fuse Holder
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 16. Make sure TPA and GMT fuse positions are either empty or contain dummy fuses (phoney, inoperative all-plastic slugs). If necessary, pull out the TPA carrier about an inch from its holder to disengage the TPA fuse, as shown in Figure 7. -
Page 10: Figure 9 - Alarm Reference Card And Terminals 009-8005-0404
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 18. At the rear of the panel, pull to extend plastic reference card below alarm terminals. (See Figure 9.) With PWR ON A lit (normal operation)—but with PWR ON B LED off (failure operation)—test power-fail relay and... -
Page 11: Figure 10 - Alarm Indicators 009-8005-0404G
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L For 009-8005-0404 and 009-8005-0404L, continue at step 24. 22. Enable the fuse or breaker at PDU (250A max.) to turn on Feed A to Side A. Also enable fuse... -
Page 12: Figure 12 - Tpa Output Lug Connections
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 24. Make sure none of the fuse positions contain operable fuses. 25. For TPA output wiring, crimp single-hole lugs onto one end of #18 to #6 AWG copper output wires, as required by NEC. -
Page 13: Figure 14 - Installing Tpa Fuses
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L ALERT ALERT! GMT fuses have a small inherent electrical resistance resulting in a small inherent power loss. For this reason, the GMT fuse manufacturer recommends that the load for GMT fuses up to and including 7.5A not exceed 80% of... -
Page 14: Figure 16 - Designation Card
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 37. If possible, • Temporarily replace one of the operable TPA fuses with a blown fuse to check that the FUSE ALARM and the TPA Fuse LEDs light red. Also,... -
Page 15: Accessories
WARNING! Use only UL-listed fuses or UL-recognized component secondary protection devices. The following lists optional and replacement items for the panel. For selecting conductors, please refer to Wire Sizing & Label Convention Chart (Telect Part No. 117995) included with your panel. Item... -
Page 16: Compression Lugs
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 1.4.1 Compression Lugs Table 1 - Input Power Lugs (1⁄4 in. Dual Holes on 3⁄4 in. Centers, Uninsulated) Item 2 AWG 1 AWG 1/0 AWG 2/0 AWG 3/0 AWG T&B... -
Page 17: Schematic Drawing
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 1.5 Schematic Drawing BATT INPUT A C GND TPA OUTPUT RTN A TPA OUTPUT BATT A TPA FUSE HOLDER LEDS GMT OUTPUT RTN A GMT OUTPUT BATT A Panel is not shipped with operable bay alarms. -
Page 18: Assembly Drawings
Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L 1.6 Assembly Drawings NOTES: Lug width 1/4 - 20 Hexhead Bolt 1.00 1. Dimensions are in or in. (cm) 0.46 (Use 7/16" Socket) (cm) [2.54] (1.17) #10 - 32 Stud &... - Page 19 Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L Applies to: 009-8005-0404G © Telect, Inc., All Rights Reserved, 123518-9 A0 1.509.926.6000 :: telect.com...
- Page 20 Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L Applies to: 009-8005-0404L and 009-1000-1033RE © Telect, Inc., All Rights Reserved, 123518-9 A0 1.509.926.6000 :: telect.com...
- Page 21 Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
- Page 22 Dual-Feed 200A 4/5 TPA/GMT Fuse Alarm Panel Power :: 009-8005-0404 :: 009-8005-0404G :: 009-8005-0404L © Telect, Inc., All Rights Reserved, 123518-9 A0 1.509.926.6000 :: telect.com...
