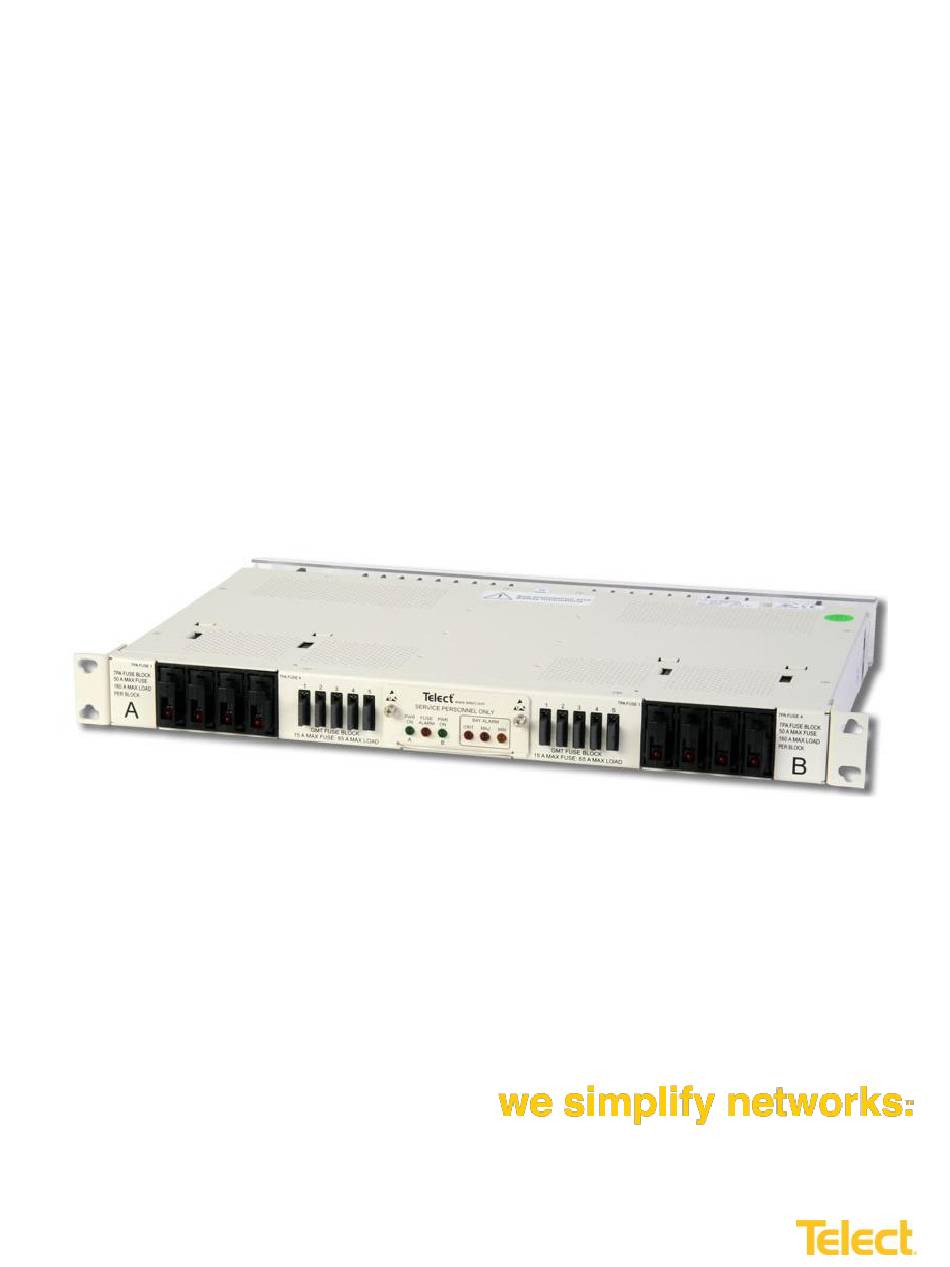

- Page 1 Dual 200A 4/5 TPA/GMT Fuse Alarm Panel with Bay Alarms Installation Guide...
- Page 2 22425 East Appleway Ave. # 11 Liberty Lake, WA 99019 Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights nor the patent rights of others. This document and the products described herein are subject to change without notice.
-
Page 3: Table Of Contents
1.6 Schematic Drawing ..........................11 1.7 Assembly Drawing ..........................12 List of Figures Figure 1 – Model 009-8005-1404 ........................1 Figure 2 – Bracket Orientation ........................4 Figure 3 – Rack Mounting ..........................4 Figure 4 – Ground Lug Connection ....................... 5 Figure 5 –... -
Page 4: Overview
Immediately report any shipping damage, defects or missing parts to Telect at 509-926-6000. Keep all documentation that comes with your shipment. Telect is not liable for shipping damage. If the product is damaged, please notify the carrier and call Telect Customer Service at 509-926-6000 for further recourse. -
Page 5: Specifications
Torque supplied bolt (using 7/16 in. or 12 mm socket) to 4 ft-lb dual-hole compression lug (5.42 N•m) Ground wire size Up to #4 AWG (depends on input interrupt device) © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... - Page 6 * See Page 12 for exact dimensions Weight: Specifications: Weight, without packaging ~14 lb. (~6 kg) ~15 lb. (~7 kg) Weight, shipping Environment: Specifications: Operating temperature range -10°C (14°F) to 55°C (131°F) © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com...
-
Page 7: Installation
WARNING! Failure to properly ground this equipment can create hazardous conditions for installation personnel and equipment. ALERT! Only use components and crimping tools approved by agencies or certifying bodies recognized in your country or region such as Underwriter’s Laboratories (UL), TUV, etc. © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... -
Page 8: Figure 4 - Ground Lug Connection
(Size of the ground depends on the input interruption device. Check local codes and/or operating company guidelines for proper ground wire and lug size.) 7. Telect recommends that you lightly coach antioxidant on lug and grounding surface on side of the panel. -
Page 9: Figure 6 - Disengaging A Tpa Fuse Holder
Expect an open circuit (∞Ω) between Terminals C and NO. 21. Repeat steps 17 through 20 to power up Side B. PWR ON A and PWR ON B must both be lit. Figure 8 – Alarm Terminals © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... -
Page 10: Figure 9 - Tpa Output Lug Connections
25. Clean the panel terminals and lugs with a nonabrasive, nonmetallic pad. 26. Telect recommends a light coat of antioxidant on the lugs and output BATTERY and RETURN terminals before connecting lugs to the terminals, as shown in Figure 9. (NEC specifies only one lug and load at each output terminal.) -
Page 11: Figure 11 - Installing Tpa Fuses
Likewise, replace one of the operable GMT fuses with a blown fuse to verify that the FUSE ALARM LED and FUSE ALARM terminals are also as specified above. Then, re-install the operable GMT fuse before proceeding. © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... -
Page 12: Figure 13 - Designation Card
LEDs, shown in Figure 13. 42. Turn on equipment loads one at a time to verify proper operation of loads. Figure 13 – Designation Card © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... -
Page 13: Accessories
Bay Alarms Installation Guide 1.5 Accessories The following lists optional and replacement items for the panel. For compression lugs, please refer to Wire Sizing & Label Convention Chart (Telect Part No. 117995) included with your panel. Item Description Part Number PWR / FUSE / BAY ALARM LEDs &... -
Page 14: Schematic Drawing
Input B sources. Either Input A or Input B is individually sufficient GMT OUTPUT for complete operation of all alarm circuits. BATT B TPA OUTPUT RTN B TPA FUSE HOLDER LEDS TPA OUTPUT BATT B INPUT B BATT © Telect, Inc. All rights reserved. 126152-5 5.3.17 509.926.6000 :: www.telect.com... -
Page 15: Assembly Drawing
FRONT VIEW Telect assumes no liability from the application or use of these products. Neither does Telect convey any license under its patent rights or the patent rights of others. This document and the products described herein are subject to change without notice.
