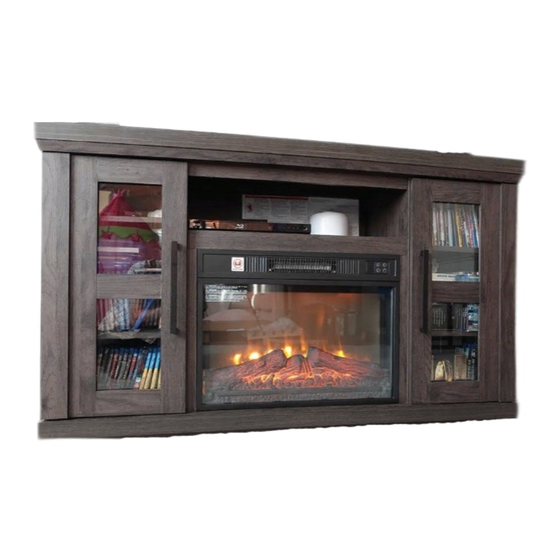

Summary of Contents for StyleWell VINEGATE 1007528574

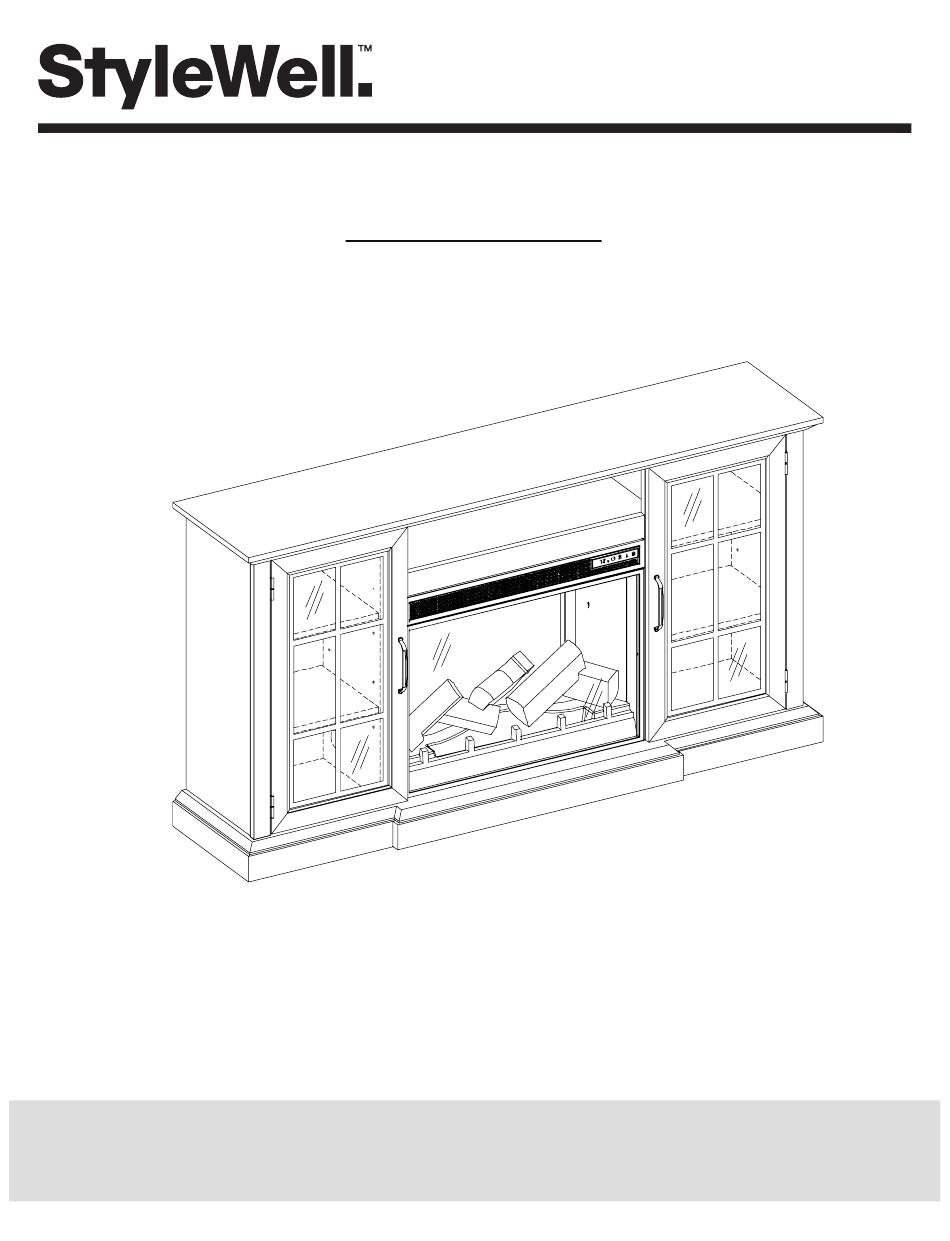

Page 1
THANK YOU We appreciate the trust and confidence you have placed in StyleWell through the purchase of this electric fireplace. We strive to continually create quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement...
Safety Information Please read and understand this entire manual before attempting to assemble, operate or install the product. If you have any questions regarding the product, please call customer service at 1-877-527-0313, 8 a.m.-7 p.m., EST, Monday-Friday, WARNING: Under no circumstances should this fireplace be 9 a.m.
Page 4
Safety Information (continued) NOTE: Use care in assembling your new fireplace. Take your time and use the hardware provided and a quality Phillips head screwdriver. Never overtighten bolts. Do not sit on any part of the mantel. It is recommended to work on a soft surface like a rug or to lay out a blanket to protect the furniture from getting scratched during the assembly process.
Warranty Warranty 1 Year Limited Warranty: The manufacturer warrants that your new electric fireplace is free from manufacturing and material defects for a period of one year from date of purchase, subject to the following conditions and limitations. Install and operate this appliance in accordance with the installation and operating instructions furnished with the product at all times.
Pre-Assembly HARDWARE INCLUDED Part Description Part Number Quantity USB output 980# PH28MMP90570-AA Screw- 3 x 12 mm PH-SCRBLK004 Screw- 3 x 12 mm PH-SCRBLK007 Screw- 4 x 50 mm PH-SCRBLK006 Magnetic Catch PH-MCHBRW001 Screw- 3 x 15 mm PH-SCRBLK010 Screw- 3 x 16 mm PH28MMP90570-GG Back Panel Bracket PH-BKTBRW017...
Pre-Assembly (continued) PACKAGE CONTENTS NOTE: All panels are labeled left and right as viewed from the front of unit. Part Description Quantity Base Left Side Partition Middle Shelf Right Side Partition Left Partition Right Partition Top Panel Side Back Panels Center Back Panel Left Door Right Door...
Assembly Installing the USB port Slide the USB output (AA) through the opening in the Middle Shelf (C). Gently secure the USB output (AA) in place using Screws (BB) and a Phillips screwdriver. Attaching the center assembly Align the Middle Shelf (C) between the Left and Right Side Partitions (B and D).
Page 9
Assembly (continued) Attaching the base Align the Base (A) with the center assembly. Insert Screws (DD) through the Base (A) and into the pre-drilled holes on the edges of the center assembly as shown. Securely tighten using a Phillips screwdriver. Attaching the sides to the main assembly Align the pre-installed wood dowel in the Left Partition (E) with the edge of the bottom shelf.
Page 10
Assembly (continued) Attaching the door handles Each Door Handle (II) has pre-attached screws. Remove these screws and place handles over the pre-drilled holes in the Left and Right Doors (J and K). Place the pre-attached screws on the other side of the Left and Right Doors (J and K) and tighten with a Phillips screwdriver through the door and into the handle.
Page 11
Assembly (continued) Attaching the top panel Locate the Top Panel (G) and align the pre-drilled screw holes on the top panel with the pre-installed screws on the top edges of the main assembly. After inserting the screws into the holes, tighten the fasteners from underneath the Top Panel (G) using a Phillips screwdriver as shown.
Page 12
Assembly (continued) Inserting the adjustable shelves Locate the four Adjustable Shelves (L). Insert the Shelf Pins (KK) into the pre-drilled holes on the inside of each cabinet side panel at your desired height. Align all pins to the same height to ensure your shelf is level.
Page 13
Assembly (continued) Installing the tipping restraint hardware When the Tipping Restraint Hardware (JJ) is properly installed, it can provide protection against unexpected tipping of the unit due to small tremors, bumps or climbing. Each Tipping Restraint Hardware (JJ) includes one Unit Anchor, one Wall Anchor, one Anchor Tether, and two Anchor Screws.
Operation Operation NOTE: The control panel can be accessed at the upper-right corner of the insert. Powering the fireplace Adjusting the flame There are 5 brightness levels that can be selected and OFF Push the Power button to supply power to all (00) setting.
Page 15
Operation (continued) Replacing the remote control battery Disposing of used batteries The battery may contain hazardous substances that When the remote control stops operating or its range could endanger the environment and human health. seems reduced, it is time to replace the batteries with new ones.
Page 16
Operation (continued) Power cord information This heater is for use on 120 volts. The cord has a plug as shown in the figure. Connect to properly grounded outlets only. Do not use a two-prong adapter. Never use with an extension cord or relocatable power tap (outlet/ power strip).
FCC/IC Information WARNING: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void user’s authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for Class B digital device, pursuant to part 15 of the FCC Rules.
Troubleshooting PROBLEM ROOT CAUSE CORRECTIVE ACTION Fireplace has reached set temperature. Fireplace stopped heating before Set the fireplace to a higher temperature or Temperature around fireplace might be a few reaching the desired temperature. always “on”. degrees higher than other area in the room. Unplug the fireplace, remove the back panel of the fireplace and check that the The thermostat sensor is...
Page 19
Troubleshooting (continued) PROBLEM ROOT CAUSE CORRECTIVE ACTION Flame effect works but heater With the power on press and hold the Power function does not and the emberbed button on the control panel for 10 seconds. The heater is disabled. flashes when the Heater button is Once re-enabled the emberbed lights will pressed.
Replacement Parts For replacement parts, call our customer service department at 1-877-527-0313, 8 a.m.-7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m., EST, Saturday. Part Description Qty. Part Number Flame Circuit Board Y21-S307-P40 Flame Generator Driver Mode P10-6-QCF Control Circuit Board Y21-S306-P184CF Ember Bed with Log Set Y21-S306-P02CF...
Page 21
Notes HomeDepot.com Please contact 1-877-527-0313 for further assistance.
Page 23
Notes HomeDepot.com Please contact 1-877-527-0313 for further assistance.
Page 24
Questions, problems, missing parts? Before returning to the store, call StyleWell Customer Service 8 a.m. - 7 p.m., EST, Monday - Friday, 9 a.m. - 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
