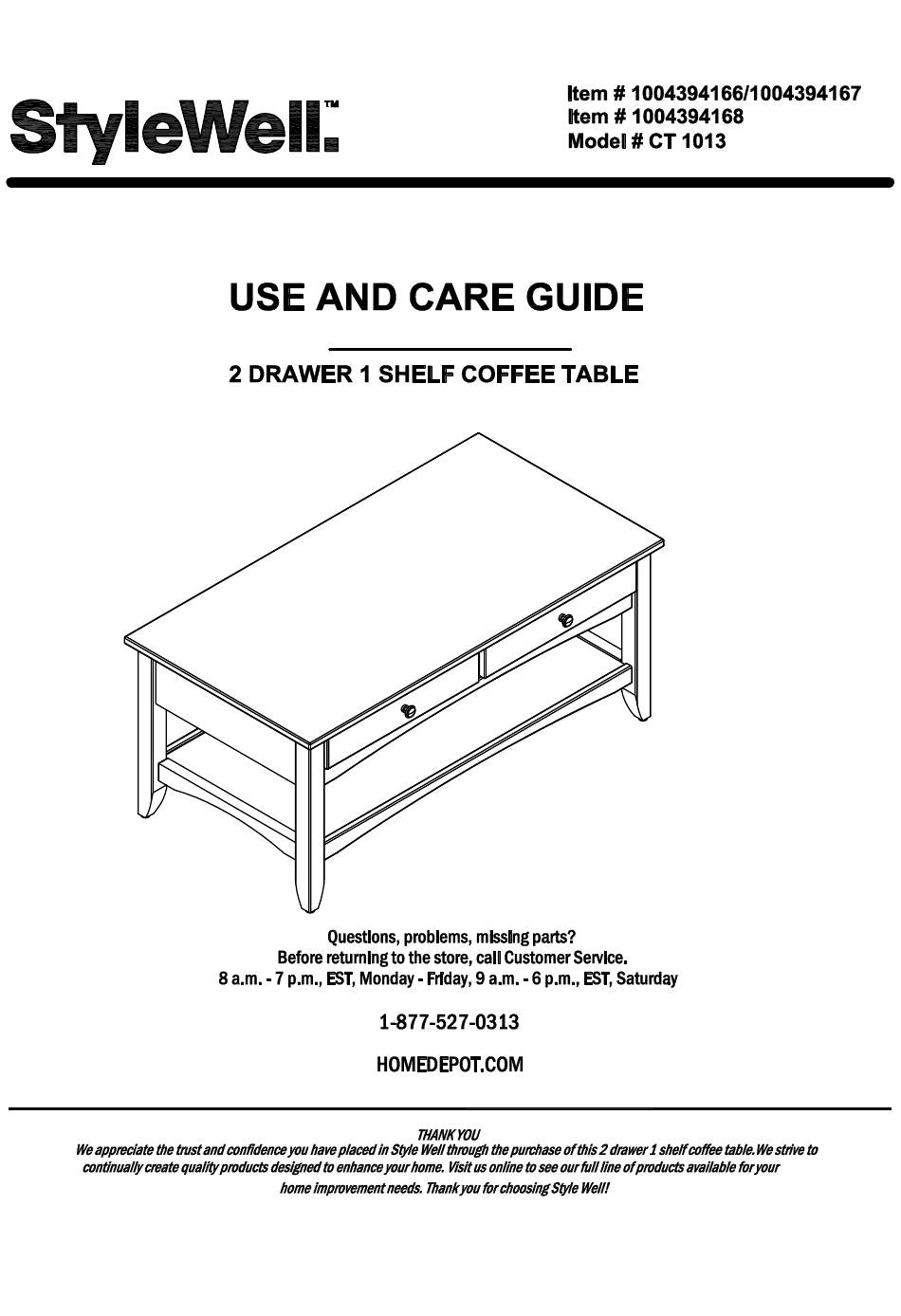

Summary of Contents for StyleWell CT 1013
-
Page 2: Table Of Contents
Table of Contents Tools Required ................. 3 Table of Contents ............2 Safety Information ............2 Hardware Included ..............3 Warranty ................. 2 Pre-assembly (continued) ..........4 1 Year Warranty ................ 2 Package Contents ..............4 What is Covered ............... 2 Assembly ............... -
Page 3: Pre-Assembly
Pre-assembly PLANNING ASSEMBLY Remove all Packaging materials , staples and packing straps form the carton . Refer to Parts List and Hardware List , and ensure parts and hardware are correct before assembly . Contact customer service for missing parts . Place all wooden parts on a clean , flat , and soft surface (e.g.carpet or rug) to prevent scratch and damage to parts . -
Page 4: Pre-Assembly (Continued)
Pre-assembly (continued) PACKAGE CONTENTS Part Quantity Descrlption Table top Side panel Divider panel layer box Rail panel Bottom panel Bottom rail panel Drawer front panel Drawer side panel Drawer bottom panel... -
Page 5: Assembly
Assembly Locked cam bolts(CC) and attached wooden dowel(BB) to side panel(B)as shown Lock cam bolts(CC) to the top panel(A),attached wooden dowel(BB)to divider panel(C) HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance. - Page 6 Assembly (continued) Attached wooden dowel(BB)to bottom panel(F) and layer box(D),locked cam bolt(CC) to layer box(D) Locked cam bolt(CC) to rail panel(E) and bottom rail panel(G) as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 7 Assembly (continued) Connect bottom rail panel(G) and bottom panel(F) with cam lock(DD) as shown Connect rail panel(E) and layer box(D) with cam lock(DD) as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 8 Assembly (continued) Connect side panel(B) with cam lock(DD) from step 6 DDX3 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 9 Assembly (continued) Connect bottom panel(F) to side panel(B) with cam lock(DD) from step 7 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 10 Assembly (continued) Connect side panel(B) with cam lock(DD) from step 8 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 11 Assembly (continued) Connect divider panel(C) with cam lock(DD) from step 9 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 12 Assembly (continued) Connect table top panel(A) with cam lock(DD) from step 10 DDX9 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 13 Assembly (continued) Locked cam bolt(CC) to drawer front panel(H),connect drawer side panel(I) to drawer front panel(H),insert drawer bottom panel(J) and tighten drawer front panel with cam bolt(DD),aseembly the knob (FF) with screw (EE) as shown DDX4 DDX4 HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
- Page 14 Assembly (continued) Locked drawer support(AA) as shown HOMEDEPOT.COM Please contact 1-877-527-0313 for further assistance.
-
Page 15: Maintenance
Maintenance Keep the product away from direct heat and sunlight . Prolonged exposure to heat sources may cause scorching, or even cause color to fade . Regular vacuuming or light brushing helps to remove dirt and prevent soil build-up, which increases the appearance of wear . Periodically (every 90 days) make sure that the screws arefully tightened . - Page 16 Questions, problems, missing parts? Before returning to the store, call Customer Service 8 a.m. – 7 p.m., EST, Monday – Friday, 9 a.m. – 6 p.m., EST, Saturday 1-877-527-0313 HOMEDEPOT.COM Retain this manual for future use.
