Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts, which
may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS
LIST and/or HARDWARE LIST shown below.
Caution: Please read the instructions thoroughly before assembly.
1. We recommend that you assemble this product with the assistance of another person: this will make the
assembly easier, and will help eliminate damage to the product or injury to persons during assembly.
2. Please do not over tighten screws or bolts until the assembly is completed.
3. Please put all parts on a non-abrasive floor before assembly, and follow the assembly steps to assemble your
newly purchased product correctly and efficiently
PARTS LIST
NO:
COMPONENT
A
Chair Back
B
Seat
C
Feet
D
Arm L
E
Arm R
Assembly Instructions

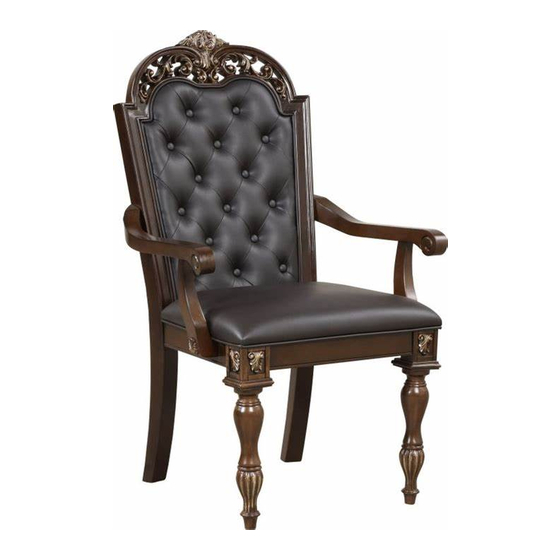

D1754-21 Maximus Dining Arm Chair
DRAWING
Q'TY
2PCS
2PCS
4PCS
2PCS
2PCS
MADE IN VIETNAM
HARDWARE LIST
NO:
COMPONENT
Bolt Ø5/16"x70mmL
1
2
Lock Washer Ø5/16"
3
Flat Washer Ø5/16"x19mm
4
Open Wrench 90*12
5
Bolt Ø1/4"x44mmL
6
Lock Washer Ø1/4"
7
Flat Washer Ø1/4"x16mm
8
Allen key 4mm
DRAWING
Q'TY
16pcs
16pcs
16pcs
2pcs
14pcs
14pcs
10pcs
2pcs
PAGE: 1OF2
