Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts
which may have come loose inside the carton during shipment. Identify and count all items and compare with the
PARTS LIST and/or HARDWARE LIST shown below.
CAUTION: Read the instructions carefully before assembly.
1. We recommend that you assemble this product with the assistance of another person to eliminate damage to the
product during assembly.
2. When you want to reposition the product, please always "LIFT & MOVE".
NO. DESCRIPTION
A
SEAT FRAME
LEFT SIDE
B
FACING (LSF)
ARM
RIGHT SIDE
C
FACING (RSF)
ARM
D
BACKREST
SEAT
E
CUSHION
LEG
F
SUPPORT
G
LEG
Revised date: 01/07/2024
ASSEMBLY INSTRUCTIONS
PARTS LIST
SKETCH
CONSTAINTINE COLLECTION

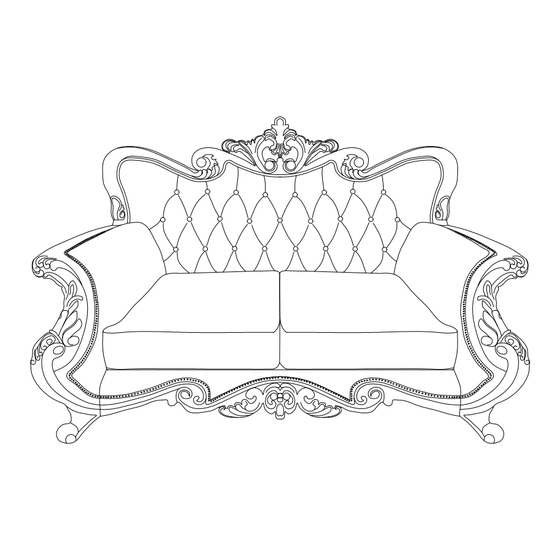

U532T-30 CONSTAINTINE SOFA
Q'TY
NO.
(PCS)
1
1
2
1
3
1
4
1
5
2
6
2
7
2
8
HARDWARE LIST
DESCRIPTION
SKETCH
FLAT
WASHER
Ø5/16x3/4''
WASHER
Ø5/16x1/2''
ALLEN KEY
1
Ø5/16x3
''
4
BOLT
1
Ø5/16x3
''
4
THREAD BOLT
1
Ø5/16x3
''
4
HEX NUT
Ø5/16x1/2''
WRENCH
1
1/2''x 3
''
2
SCREWS
3
D4x 2
''
4
Q'TY
(PCS)
12
12
1
10
2
2
1
4
PAGE 1/6
Advertisement
Related Manuals for Royal Classics CONSTAINTINE U532T-30
Summary of Contents for Royal Classics CONSTAINTINE U532T-30
- Page 1 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA Thank you for purchasing this quality product. Be sure to check all packing materials carefully for small parts which may have come loose inside the carton during shipment. Identify and count all items and compare with the PARTS LIST and/or HARDWARE LIST shown below.
- Page 2 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA STEP 1: Place the seat frame (A) upside down. Assemble the legs (F) to both left and right back side of the seat frame (A) by using the Allen Key (3) with hardware 1, 2, and 4. 1 2 4 STEP 2: Lay the seat frame (A) on its backside to reach the holes to secure the bolts for the arms.
- Page 3 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA STEP 3: Assemble and secure the front legs of the LSF arm (B) and RSF arm (C) to the seat frame (A) by using a screwdriver with hardware 8. STEP 4: Place the backrest (D) on its backside. Install the thread bolt (5) into the hole on the bottom of the backrest (D) by using your hands to rotate the bolt about 1/2 inches (25 mm) into the backrest (D).
- Page 4 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA STEP 5: Place the frame up right to install the backrest (D) with the LSF arm (B) and RSF arm (C) by align and slide the metal bracket on the backrest (D) to the metal brackets on the arms. Please make sure brackets are inserted all the way and secured.
- Page 5 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA STEP 7: Screw the support legs (G) to the bottom of seat frame (A). STEP 8: Place the upholstery up right and install the seat cushion (E) to the seat frame (A). Revised date: 01/07/2024 PAGE 5/6...
- Page 6 ASSEMBLY INSTRUCTIONS CONSTAINTINE COLLECTION U532T-30 CONSTAINTINE SOFA FINISH Revised date: 01/07/2024 PAGE 6/6...
