LED Zusatzscheinwerfer / Auxiliary headlights
BMW R 1250 GS
(2018-)
Artikel Nr.: / Item-no.:
6514
731
00 01
BMW R 1200 GS LC
(2013-)
Artikel Nr.: / Item-no.:
665 00 01
731
INHALT

CONTENTS

1x 700009350
LED Zusatzscheinwerfer Set:
bestehend aus
2x Scheinwerfer
2x Halteschelle ø22-ø39mm
2x Halteschelle ø40-ø53mm
Befestigungsschrauben
1x 700008245
Halter links
1x 700008246
Halter rechts
1x 700007883
Kabelbaum
1x 700012315
Schraubensatz:
10 Kabelbinder
2
Zylinderschraube M6x40
2
Zylinderschraube M5x35
2
U-Scheibe ø6,4
2
U-Scheibe ø5,3
Großes Bild zeigt Ion Blue Scheinwerfer.

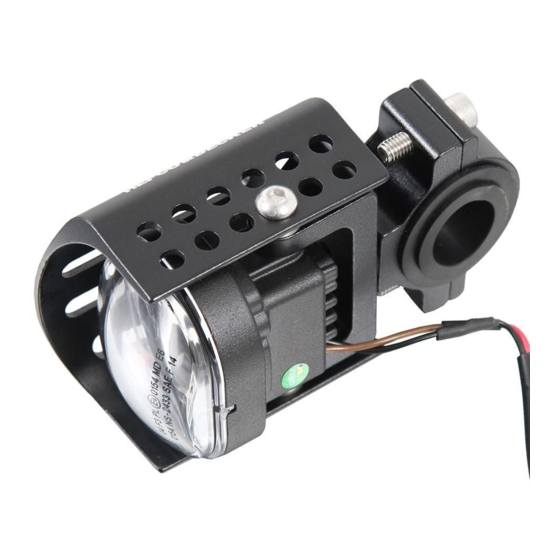

LED Scheinwerfer siehe kleines Bild.
The big picture shows Ion Blue headlights.
LED headlight see small picture.
BMW R 1250 GS
Adventure
(2019-)
Artikel Nr.: / Item-no.:
6519
731
00 01
BMW R 1200 GS
Adventure
(2014-)
Artikel Nr.: / Item-no.:
671 00 01
731
schwarz/black
1x 700009350
LED auxiliary headlights set:
including
2x spotlights
2x holding clip ø22-ø39mm
2x holding clip ø40-ø53mm
screw set
1x 700007883
wire harness
1x 700008245
holder left
1x 700008246
holder right
1x 700012315
screw kit:
10 cable ties
2
allen screw M6x40
2
allen screw M5x35
2
washer ø6,4
2
washer ø5,3
1
