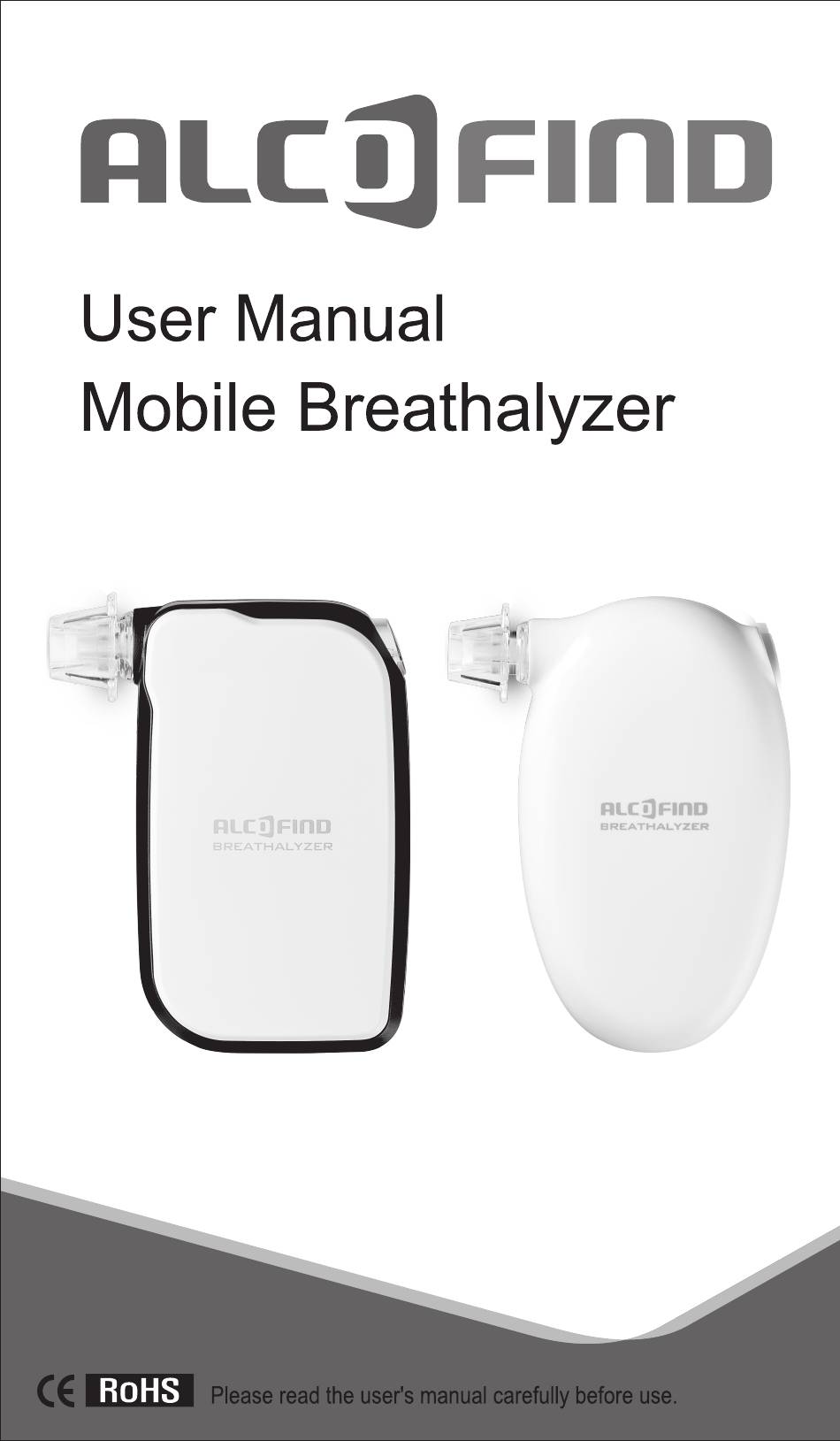

- Page 1 AFM-5 AFM-P3...
-
Page 2: Important Safety Information
IMPORTANT SAFETY INFORMATION - Before using the device, read all instruction manual carefully and then perform the test. - The device should be recalibrated by expert every 12 months or when 500 tests have performed before reaching 12 months. Using without periodic calibration may result in incorrect results. - Page 3 - In case the test result is higher than 0.1 %BAC (1.0 g/L) and you try again without any interval, then the warm up time might be delayed. - Blowing hard may cause damage to the sensor as saliva can flow into the sensor. - Perform a test within the operating temperature which is specified in the instruction manual.
-

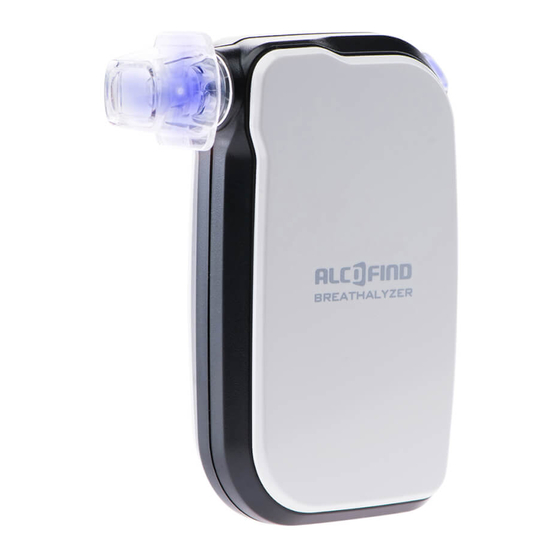

Page 4: Name Of Each Part
CONTENTS - Mobile Breathalyzer - An AAA battery - 6 pieces of mouthpiece - Carrying case - Instruction manual NAME OF EACH PART Mouthpiece slot <AFM-5> Mouthpiece Power button Battery cover <Back> <Front> Mouthpiece slot <AFM-P3> Mouthpiece Power button Battery cover <Back>... - Page 5 PREPARATION 1. Installing a battery <AFM-5> Step 1. Push up the bottom part of battery cover to open it. Step 2. Install an AAA battery in the battery compartment by paying attention to the battery polarity. Step 3. Insert bulging parts of the battery cover into the slits, and then push down its cover so that it is tightly closed.
- Page 6 <AFM-P3> Step 1. Press and pull up the battery cover by using any plastic card to open it.
- Page 7 Step 2. Install an AAA battery in the battery compartment by paying attention to the battery polarity. Step 3. Press down the battery cover so that it is tightly closed.
- Page 8 2. Inserting a mouthpiece Step 1. Insert a mouthpiece into the slot on the side of the alcohol tester. Ensure whether it securely fits or not. It is highly recommended to use an extra mouthpiece for every test for sanitary reasons. <AFM-5> <AFM-P3>...
- Page 9 3. Installing the app Step 1. Download "ALCOFIND" app from App store (iOS) or Google Play Store (Android). Note Minimum requirements of Smartphone - iPhone 4S running iOS 7 and above - Android devices running OS 4.3 and above *The device is not compatible with any tablet devices.
- Page 10 Step 2. To turn on the device, press and hold Power button for a second until the Blue, Green and Red LEDs appear on the device as shown in the picture below. (Blue) (Blue) (Green) (Red) (Green) (Red) <AFM-5> <AFM-P3>...
- Page 11 Step 3. The Blue LED will blink during pairing process. (Blue) (Blue) <AFM-5> <AFM-P3> If pairing is successful, Green and Red LEDs appear on the device, and the screen on your smartphone will show "START TEST". Tap "START TEST" on your smartphone(or press Power button on the device).
- Page 12 Note: In case of the first pairing process, a PIN Code request will be displayed. Input "000000" for PIN Code. Note: The app is set to remember and search the device that has paired last time for 30 seconds. If the app is not able to find the previously paired device for 30 seconds, the app will show the following message.
- Page 13 Step 4. Choose a user. Each test result will be saved separately according to the selection of the user. All history of saved test results are viewable from the Graphic Icon at the bottom of the menu. Step 5. The circular bar on the app indicates the progress of warm-up.
- Page 14 Step 6. When "Start blowing" is displayed, blow for 5 seconds into the mouthpiece until the gage reaches 100 or you feel the air has been pulled through the air pump in the device with a click. Note: If the camera feature is enabled, the camera will automatically capture the image of a user once the...
- Page 15 Step 8. The estimated BAC level will be displayed on the app in a few seconds. (It may vary depending on the BAC level.) In this page, the app enables you to make a memo which is viewable with test results from the Graph icon, and the test results can be also shareable via Text message, Facebook, or Twitter.
- Page 16 Note: The device will turn off automatically if the device is not in use for 2 minutes. Note: If you exit the app while the device is working with the app, all Blue, Red and Green LEDs on the device will flicker together.
- Page 17 Step 1. To turn on the device, press and hold Power button for a second until the Blue, Green and Red LEDs appear on the device as shown in the picture below. (Blue) (Blue) (Green) (Red) (Green) (Red) <AFM-5> <AFM-P3>...
- Page 18 A Blue LED keeps blinking until the warm-up process is completed. (Blue) (Blue) <AFM-5> <AFM-P3> Note: If the device doesn't have the set value of "Limit line", all Blue, Red and Green LEDs will flicker together after the warm-up process. Pair the device with the app and set "Limit Line"...
- Page 19 5 seconds into the mouthpiece until a Blue LED disappears. (Blue) (Blue) <AFM-5> <AFM-P3> Step 4. If a sufficient breath sample is taken correctly, Green and Red LEDs will blink in turns and the test result will be displayed in a few seconds.
- Page 20 (Green) (Red) <AFM-P3> Note: If an insufficient breath sample is taken or the blowing session is timed out, all Blue, Red and Green LEDs will flicker together. Press Power Button to retest. Step 5. Test results will be displayed with indications of Red or Green LEDs according to the set value of "Limit Line"...
- Page 21 Note: If "Limit Line" is set as 0.02%BAC, the indication of pass will be displayed as 2 levels - PASS (HIGH) & PASS (MIDDLE). If "Limit Line" is set as 0.01%BAC, the indication of pass will be displayed as 1 level - PASS (HIGH). Note: The device saves up to 30 test results, and the oldest test results will be deleted automatically if memory is full.
-
Page 22: Specification
One AAA size alkaline battery Power supply Sensor Fuel cell sensor Connectivity Bluetooth 4.0 LE AFM-5: 41.5mm x 68mm x 16.9mm Dimensions (WxHxD) AFM-P3: 44.56mm x 77mm x 20mm Weight 43g including batteries Calibration Every 12 months or After 500 tests ℃... -
Page 23: Warranty
WARRANTY CUSTOMER SERVICE... - Page 24 Part No. 801AM51000...
