Instruction Manual

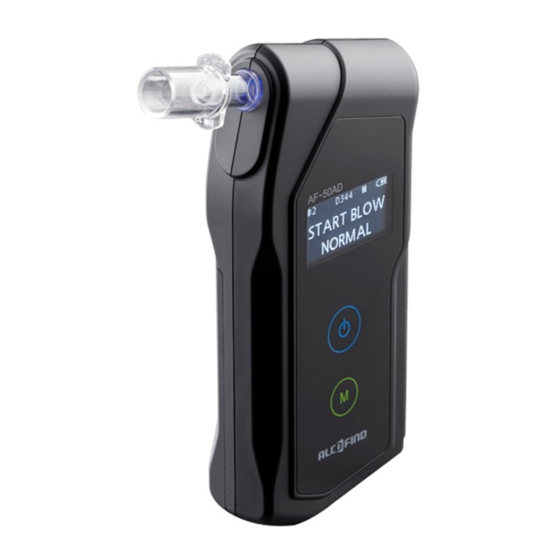

Digital Breathalyzer AF-50 AD
· KEY FEATURES
- OLED DISPLAY
Helps to read various information including total test number, date, unit and other options
- 100 TEST MEMORIES
Saves the test result including test date and time
- USER-FRIENDLY INTERFACE
Enables to change device setting easily
- GRAPH MODE
Allows to track all test results efficiently
- CALIBRATION REMINDER
Helps get on-time calibration by letting users know about the remaining days to the next
calibration
* Please read the user's manual carefully before use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AF-50 AD and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Alcofind AF-50 AD

Summary of Contents for Alcofind AF-50 AD

  • Page 1 Instruction Manual Digital Breathalyzer AF-50 AD · KEY FEATURES - OLED DISPLAY Helps to read various information including total test number, date, unit and other options - 100 TEST MEMORIES Saves the test result including test date and time - USER-FRIENDLY INTERFACE...

  • Page 2: Table Of Contents

    Table of contents 1. Important Safety Information 2. Introduction 3. Contents 4. Name of each part 5. Basic Operation 5.1 Preparation 5.2 Operation with app 5.3 Operation without app 5.4 Symbols & Readings 6. Basic Menu Options 6.1 TEST RESULT 6.2 TEST RESULT-G 6.3 ALARM LIMIT 6.4 UNIT...

  • Page 3: Important Safety Information

    1. Important Safety Information - Before using the alcohol tester, read all instruction manual carefully and perform the test. - Recommended to use calibration service every 12 months or after 500 times tests by experts. The use without periodic calibration service may result in invalid result. - The test should be performed after 30 minutes after eating, drinking or smoking.

  • Page 4: Introduction

    2. Introduction Thank you for purchasing our alcohol tester, which is a professional use alcohol tester with high- reliability. It can be used in the law enforcement, hospital, school and many other industrial fields. It measures estimated B.A.C (Blood Alcohol Content) in human breath by means of a premium fuel cell sensor which is highly durable and providing accurate breath alcohol results.

  • Page 5: Basic Operation

    1. Mouthpiece 2. Mouthpiece slot 3. Status LED 4. High-Quality OLED Display 5. Power button 6. Menu button 7. Battery cover 5. Basic Operation 5.1 Preparation Press and push down the cover to open Insert two AA batteries (1.5V Alkaline)

  • Page 6: Operation With App

    Install two AA Batteries in the battery compartments by paying attention to the battery polarity. Insert a mouthpiece into the slot on the side of the alcohol tester. Ensure whether it securely fits or not. Extra mouthpieces should be used for other person’s testing for sanitary reasons. 5.2 Operation with app Step 1.
  • Page 7 Note. -In case of the first pairing process, a PIN Code request will be displayed. Input "000000" for PIN Code. Note. -The app is set to remember and search the device that has paired last time for 30 seconds. -If the app is not able to find the previously paired device for 30 seconds, the app will show the following message.
  • Page 8 -If you want the app to find another device, press "OK", and if you want the app to keep finding the previously paired device, press "Cancel". Step 4. Choose a user. Each test result will be saved separately according to the selection of the user.
  • Page 9 Step 6. When "Start blowing" is displayed, blow for 5 seconds into the mouthpiece until the gage reaches 100 or you feel the air has been pulled through the air pump in the device with a click. Note. - If the camera feature is enabled, the camera will automatically capture the image of a user once the blowing has been completed.
  • Page 10 Note. - If insufficient sample is taken, an error message will displayed. To test again, press "OK" on the app. - In the graph, the test results performed without app will be shown as "D". Step 8. The estimated BAC level will be displayed on the app in a few seconds. In this page, the app enables you to make a memo which is viewable with test results from the Graph icon, and the test results can be also shareable via Text message, Facebook, or Twitter.

  • Page 11: Operation Without App

    Icon at the bottom menu. Step 10. Press and hold Power button on the device for 2 seconds to turn it off when you have finished testing. Note. - The device will turn off automatically if the device is not in use for 2 minutes. - If you exit the app while the device is working with the app, all Blue, Red and Green LEDs on the device will flicker together.
  • Page 12 with a bar graph, which enables you to check visually whether your test results are higher than the alarm limit that you have set in the menu. Step 3. Measurement Blow through the mouthpiece until the device beeps twice. Note. The blowing time may vary depending on set value. Step 4.
  • Page 13 Test result Step 6. After test After displaying the test result for 4 seconds, the display will change to enable you to conduct the following functions: 1) RETEST - Press the power button shortly if you want to test again, 2) GRAPH - Press the menu button shortly if you want to check the 10 previous test results with a bar graph, which enables you to check visually whether your test results are higher than the alarm limit that you have set in the menu.
  • Page 14 5.4 Symbols & Troubleshooting Status Display Total number Remaining Remaining of tests calibration battery power performed date Troubleshooting guide MESSAGE WHAT IT MEANS ACTION The sampling volume or blow power is Press the power button to not enough to analyze the breath perform a new retest.

  • Page 15: Basic Menu Options

    testing cannot performed Contact your local distributor because the device has tested more or customer service center for than 10,000 times. proper recalibration service. 6. Basic Menu Options *How to enter the menu options - In Warm-up process (Step 2), press the menu button for 2 seconds. *How to move/select/exit the menu options.

  • Page 16: Test Result-G

    1. Test Number 2. Test result 3. Test date 4. Test time The test results can be checked with test number, date and time. Note: The most recent test result will appear first. * To see the previous result, press the power button shortly. * To see the next result, press the menu button shortly.

  • Page 17: Alarm Limit

    The test results can be checked with a bar graph, which enables you to check visually whether your test results are higher than the alarm limit that you have set in the menu. * To see the previous page, press the power button shortly. * To see the next page, press the menu button shortly.

  • Page 18: Unit

    6.4 UNIT The measurement unit can be set in this menu. The settable value range: ug/L, mg/L, ‰, mg/100mL, %BAC. * To move the cursor up, press the power button shortly. * To move the cursor down, press the menu button shortly. * To save the setting and return to the menu list, press and hold the power button and the menu button together for 2 seconds.

  • Page 19: Sound

    * To move the cursor down, press the menu button shortly. * To save the setting and return to the menu list, press and hold the power button and the menu button together for 2 seconds. * To return to the menu list without saving, press the menu button for 2 seconds. 6.6 SOUND The sound can be set in this menu.

  • Page 20: Pin Code

    The following information about the device can be checked in this menu. 1. Version of Firmware 2. The calibration date 3. The total number of tests performed * To return to the menu list, press the menu button for 2 seconds. 6.8 PIN CODE In this menu, the correct PIN code must be entered to move into the advanced menu option.

  • Page 21: Advanced Menu Options

    7. Advanced Menu Options 7.1 TEST LIMIT The maximum number of measurements allowed can be set in this menu. The settable value range: 50 ~ 1000 tests * To raise the test limit, press power button shortly. * To reduce the test limit, press the menu button shortly. * To save the setting and return to the advanced menu list, press and hold the power button and the menu button together for 2 seconds.

  • Page 22: Date Limit

    * To raise the number of time and date, press the power button shortly. * To reduce the number of time and date, press the menu button shortly. * To save the setting and return to the advanced menu list, press and hold the power button and the menu button together for 2 seconds.

  • Page 23: Specification

    The PIN code can be set in this menu. The settable value range: 0000 ~ 9999. * To change digits of PIN code, press the power button for 2 seconds. * To raise the number of PIN code, press the power button shortly. * To reduce the number of PIN code, press the menu button shortly.

  • Page 24: Contact Information

    DA Tech Co., Ltd Manufacturer 39, Pyeongcheon-ro 141beon-gil, Bupyeong-gu, Incheon, Korea Web: www.alcofind.com / Tel: +82-32-868-0844 / Fax: +82-32-868-0846 FCC Statements This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions : (1) this device may not cause harmful interferece, and (2) this device must accept any interference received, including interference that may cause undesired operation.
  • Page 25 DECLARATION OF CONFORMITY Directive 2014/53/EU We, DA Tech Co., Ltd having its principal office at 39 Pyeongcheon-ro 141 beon-gil, Bupyeong-gu, Incheon, Korea, declare under our sole responsibility that the following product: Product Name : Breathalyzer Model number : AF-50 is in conformity with the following essential requirements and other relevant provisions of the Directive 2014/53/EU: Essential Requirement Applicable Standards / Specifications...
