  • Page 1 Digital Breathalyzer DA-9000 Series ADMINISTRATOR’s MANUAL Thank you for choosing ALCOFIND DA-9000. We hope you will experience state of the art technology by Fuel Cell sensor accuracy and reliability. In order to more accurate and reliable test result, we recommend...
  • Page 2: Table Of Contents

    TABLE OF CONTENTS Basic Operation Introduction & Option of DA-9000 Precautions Name of each part Preparation Operation Symbols & readings Menu Flow Basic Menu Options Last tests Information/Language PIN mode Advanced Menu Options Instrument Change PIN Test Limit/Power Off Set Date Limit / Set Time Entering PIN mode Unit/BAC limits...
  • Page 3: Basic Operation

    Basic Operation Introduction ALCOFIND DA-9000 is a professional alcohol tester with extremely high-reliability. It can be used not only for law enforcement but also in the hospital, school and many other industrial fields. It measures estimated B.A.C(Blood Alcohol Content) in human breath by means of a premium fuel cell sensor which is high durable and providing accurate test results.
  • Page 4: Precautions

    Basic operation Precautions Read the instruction manual carefully before use. Wait at least 20 minutes after drinking, eating or smoking before testing. Do not blow smoke, food, liquid or condensation into the device, which will damage the sensor. Maintenance and calibration should be performed by experts. We recommend to you replace the disposable mouthpiece for sanitary reason.
  • Page 5: Name Of Each Part

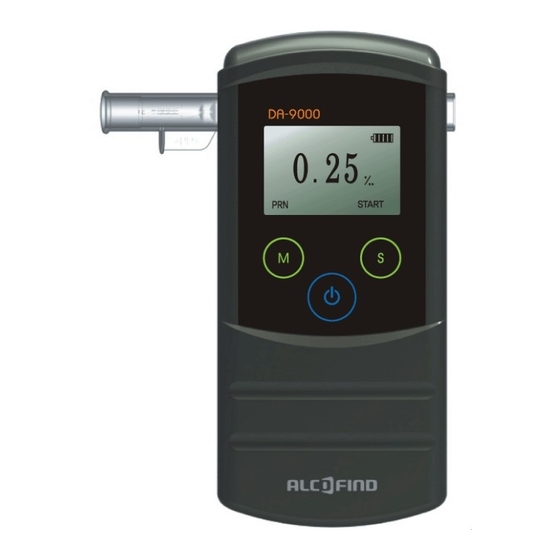

    Basic Operation Name of each parts DA-9000 1. Mouthpiece 2. Display 3. Menu / Printer / Down button 4. Start / Up button 5. Power / Select button 6. Infrared Window 7. Battery cover 8. USB connector 9. Hand Strap...
  • Page 6: Preparation

    Basic Operation Preparation Install two AA batteries in the battery compartment by paying attention to the battery polarity. Press and pull the cover to open Two AA batteries (1.5V Alkaline) Insert a mouthpiece into the port on the back of the alcohol tester.
  • Page 7: Operation

    Basic Operation Operation Press and hold button for more than 1 second till 10:00 PM the initial screen displays. The countdown starts and displays total number of tests in the lower right-hand corner. Menu No. 000 During the countdown you can go into "Menu mode", if you press button for 1 second.
  • Page 8: Symbols & Readings

    Basic Operation Symbols & readings Battery symbol : Warns when battery is low or must be replaced. Full battery Battery capacity 75% Battery capacity 50% Battery capacity 25% Empty battery Calibration error message : Calibration procedure was not successfully finished. Try again recalibration procedure.
  • Page 9 Basic Operation If the tester does not work within the time set in the Menu "Power off set", it will be turned off automatically Time Out after the "Time Out" is flickering three times with three beep tones . Flow Under 1.3L Blow Again : it appears, when the Flow Under 1.3L blown flow rate for measuring is less than 1.3L.
  • Page 10: Menu Flow

    Basic Operation Menu Flow BASIC MENU OPTION LAST TESTS CAL.DATE CONFIGURE INFORMATION S/W VER. ENGLISH LANGUAGE JAPANESE PIN ENTER PIN MODE ADVANCED MENU OPTION UNIT BAC LIMITS CHANGE PIN TEST LIMIT INSTRUMENT POWER OFF SET DATE LIMIT SET TIME SOLUTION TYPE CALIBRATION CALIBRATE...
  • Page 11: Basic Menu Options

    Basic Menu Options Entering Basic Menu Options Turn on the device by pressing button for 1second To enter the basic menu options, press button for 1 second Last tests 10:00 PM Information Language PIN mode Exit Menu No. 000 Last tests L a s t t e s t s 0010 Last tests...
  • Page 12: Information/Language

    Basic Menu Options Press button to enter "Last tests" menu. The most recent test results information appears. By pressing , the next results will be shown. The tester will recall up to last 250 test results. If the memory is full, the oldest test result is deleted automatically.
  • Page 13: Pin Mode

    Basic Menu Options PIN mode Last tests PIN mode Information Language PIN mode Exit PIN mode is a first step to the "Advanced Menu Options" by entering password. Default value is "0000". * You can change PIN in the "Advanced Menu Options", which will be described in detail from the next pages.
  • Page 14: Advanced Menu Options

    Advanced Menu Options More various user adjustable options are available in "Advanced Menu Options". In the Basic Menu option, select "PIN mode" and input password. (default is "0000") Initial screen of "Advanced Menu Options" you can see. Entering Advanced Menu Option Last tests Unit PIN mode...
  • Page 15: Test Limit/Power Off Set

    Advanced Menu Options Test Limit Instrument Test Limit Unit Change PIN BAC Limits *NONE Test Limit Instrument Power Off Set Calibration Date Limit Exit Set Time Exit Exit In this menu option, you can adjust the Test Limit to announce that the tester needs to be recalibrated.
  • Page 16: Date Limit / Set Time

    Advanced Menu Options Date Limit Menu and Set Time Menu are available only for the testers with RTC (OPTION 1) Date Limit Instrument Date Limit Unit Change PIN BAC Limits Test Limit Instrument Power Off Set Calibration Month(s) Date Limit Exit Set Time Exit...
  • Page 17: Entering Pin Mode

    Advanced Menu Options Entering "PIN mode" PIN mode Last tests Unit Information BAC Limits Language Instrument 0000 PIN mode Calibration Exit Exit <Basic menu option> <Advanced menu option> Unit Unit Unit * mg/L BAC Limits Instrument %BAC Calibration mg /100ml Exit ug/ L Exit...
  • Page 18: Solution Type

    Advanced Menu Options Entering "Calibration" mode Unit Last tests PIN mode BAC Limits Information Language Instrument 0000 Calibration PIN mode Exit Exit Calibration must be done by the experts who are fully qualified with certified equipment. Please contact your local distributor or customer service if it required.
  • Page 19: Calibrate

    Advanced Menu Options Calibrate Unit Calibration Calibrate Solution type Solution type BAC Limits Instrument Calibrate Calibration Exit Start Exit Exit In other to calibrate the device, please enter the menu, "Calibration -> Calibrate -> Start" in other, Set CAL Date Set Time Calibration Calibration...
  • Page 20: How To Use Printer

    Power off Keep button pressed for more than 1 second, the tester switches off. If the tester does not work within the time set in the Menu "Power Off Set", it will be turned off automatically after the "Time Out" is flickering three times with three beep tones .
  • Page 21 Print Instant test result printout 10:00 PM 10:00 PM 0000 %BAC START You can printout your test results right after measurement displayed, simply by hold button for 3 seconds. Recorded test result printout Last tests 0010 Last tests 005/25 0 Information 2011.
  • Page 22: Attaching The Wrist Strap

    Strap Mount Attaching the Wrist Strap Please refer to the following pictures how to attach the wrist strap...
  • Page 23: Menu Guide

    Menu Guide BASIC MENU OPTION S/W MENU OPTION Last TESTS START PC MODE CAL. DATE MAIN END PC MODE CONFIGURE INFORMATION EXIT S/W VER. READ TEST RESULT ENGLISH OPEN DATA FILE LANGUAGE JAPANESE EXPORT TO EXCEL DATA PIN MODE CLEAR TEST RESULTS TEST NUMBER MENU PIN ADVANCED MENU OPTION...
  • Page 24: Specification

    Specifications 0.000 ~ 0.500%BAC 0.00 ~ 5.00 Indication of B.A.C. 0.00 ~ 2.50mg/l +/- 0.005%BAC at 0.1%BAC at 25 C Accuracy +/- 0.05 at 1.0 at 25 C +/- 0.025mg/l at 0.50mg/l at 25 C Within 12 seconds at 0.50g/l( Warm up time warm up time may vary depending...
