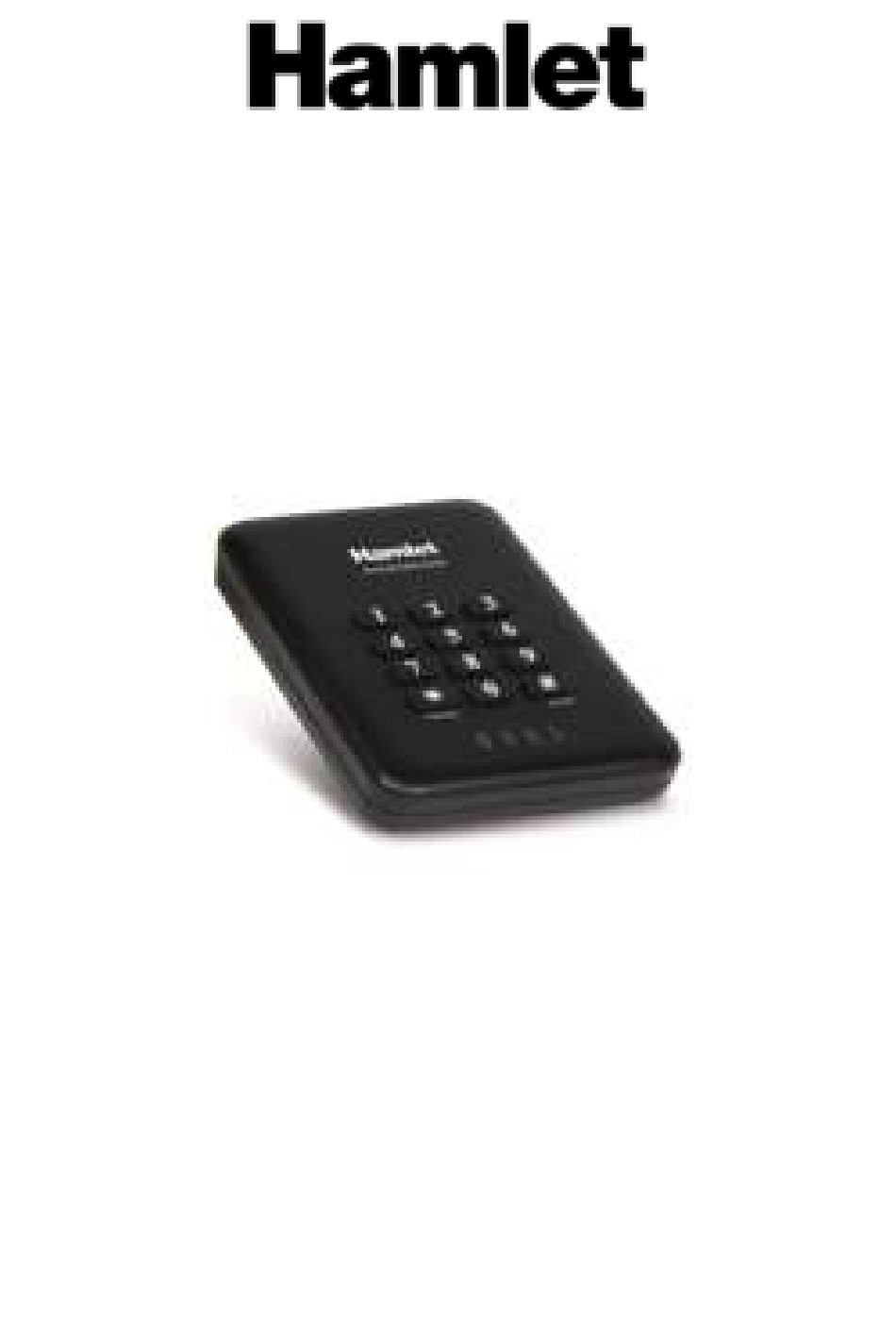

- Page 1 PASSWORD DISK USB 3.0 Encrypted Enclosure for 2.5” SATA Hard Disk USER MANUAL HEXD25U3KK www.hamletcom.com...
- Page 2 The information on the importer for your country are available in the “About Us” section of the Hamlet website at www.hamletcom.com. Trademarks and changes All trademarks and company names mentioned in this manual are used for description purpose only and remain property of their respective owners.
- Page 3 User’s Manual. Important information Any loss, corruption or destruction of data while using a Hamlet drive is the sole responsibility of the user, and under no circumstances will Hamlet be held liable for the recovery or restoration of this data.
- Page 4 1. Introduction Password Disk USB 3.0 is an external enclosure for 2.5" SATA Hard Disk equipped with a keypad to protect your data with a personal password from 4 to 12 digits. The data will be protected from unauthorized access with 256-bit AES international standard encryption.
- Page 5 Product overview...
- Page 6 Numeric keypad The following table describes the use of buttons of the built-in numeric keypad. Button Description The numbers from 0 to 9 are valid for password. * (cancel) Use this button in case of entering a wrong number. # (enter) Use this button to confirm an operation.
-
Page 7: Hard Disk Installation
2. Hard disk installation The installation of the hard disk in the HEXD25U3KK enclosure can be performed without screwdriver as the box consists of two parts that fit together. The enclosure comes with the two plastic parts already separated. To install the disk, proceed as follows. 1. - Page 8 Password setup 1. Press “1” and “3” numbers together and with numbers pressed, connect the enclosure to the computer with the USB cable. 2. Keep pressed “1” and “3” numbers for at least 20 seconds. Within 20s the green LED blinks and then turn on. After 20 seconds the red and green LEDs are both on.
- Page 9 4. Input now the password you want to set and press the ENTER (#) button to save it. The password length must be between 4 and 12 digits. If password setup procedure is successful, the orange LED turns off. 5.
- Page 10 Once you set the password encryption on the device, you must unlock the hard disk in order to read and write data. 1. Connect Hamlet Password Disk to the computer with the included USB cable. The red and green LEDs turn on.
-
Page 11: Change The Password
3.3 Change the password If you need to change the password, follow the steps below. 1. Press the CANCEL (*) button and connect the enclosure to the computer with the USB cable. Keep pressed the “*” button for about 5 seconds until red, green and orange LEDs turn on. -
Page 12: Questions And Answers
4. Questions & Answers Can I access the data if the password is lost or forgotten? No. If the password is lost/forgotten the data become unrecoverable. Can the HDD be used when password is lost? Yes, but data will be lost. How to access the data if the external enclosure is damaged? You have to buy a new HEXD25U3KK external enclosure with same firmware, install the encrypted hard drive into the new...
