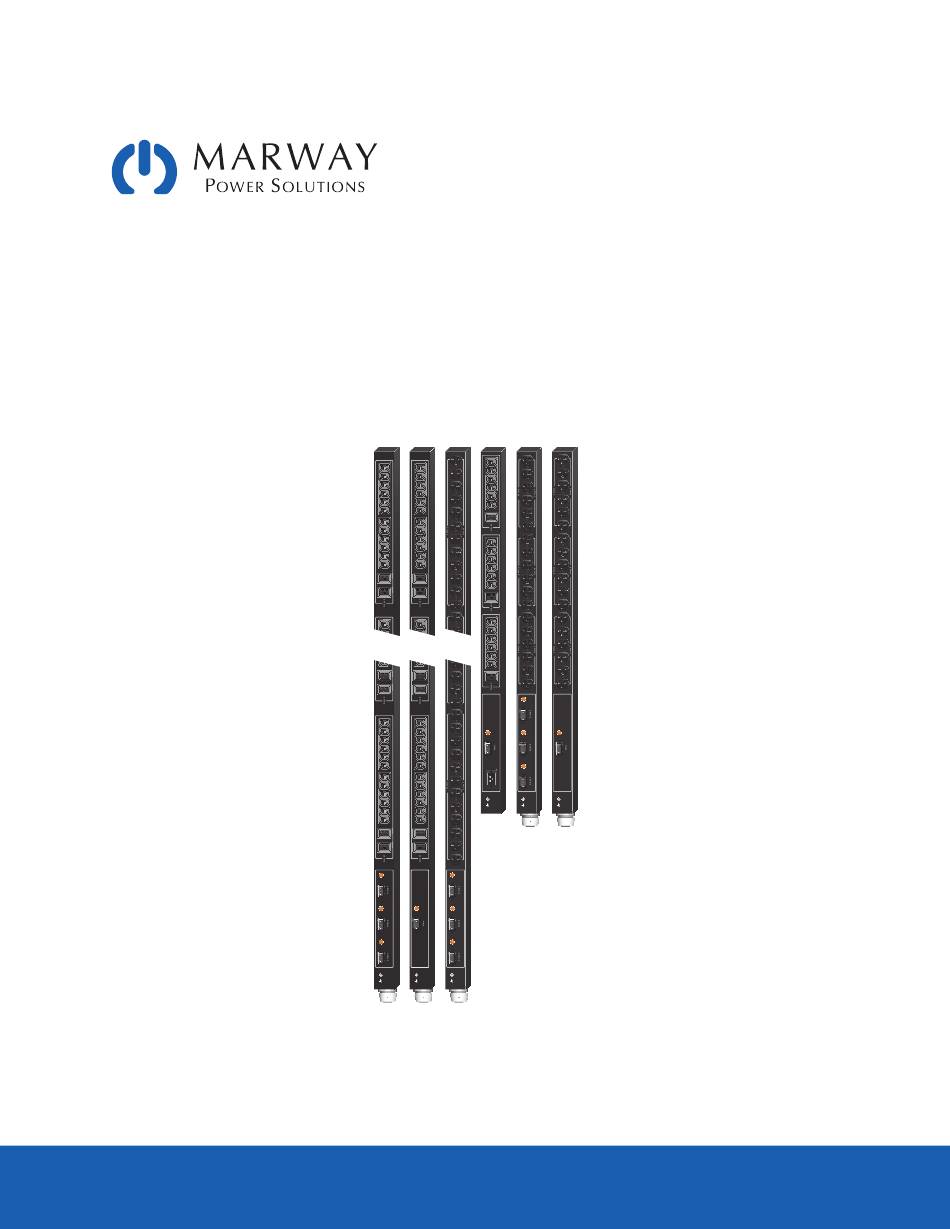

- Page 1 Optima 529 Series ™ Power Distribution Units Operating Guide and Reference Aug 2022 : P/N 501036-000 Rev D...
-
Page 2: Table Of Contents
1.7 Product Ratings ..............6 Installation 2.1 Installation Notes..............7 Operation 3.1 Startup ..................8 3.2 Breakers .................. 8 Specifications Contact and Support 5.1 Repairs .................. 10 5.2 Contact Options ..............10 5.3 Two Year Warranty ..............10 Page 2 Optima 529 Series... -
Page 3: General
• Disconnect all power to the product prior to servicing control signal cabling. • Do not open this product as it contains no user serviceable parts inside. All service concerns should be directed to Marway Power Solutions. • I f this product is used in a manner which does not comply with this instruction manual, the ... -
Page 4: Symboles De Documentation (Fr)
• D ébranchez toute alimentation électrique du produit avant d’effectuer l’entretien du câblage des signaux de commande. • N ’ouvrez pas ce produit, car il ne contient aucune pièce réparable par l’utilisateur. Tous les problèmes de service doivent être adressés à Marway Power Solutions. • S i ce produit est utilisé d’une manière non conforme au présent manuel d’instructions, la protection fournie par l’équipement peut être compromise. • Tous les travaux sur les connexions doivent être effectués sous une tension nulle et ne doivent être effectués que par des techniciens qualifiés et compétents. Des actions inappropriées peuvent ... -
Page 5: General Description
1.5 General Description The Optima 529 Series (model numbers MPD 529XXX) is a family of 16 power distribution units (PDUs) designed for use with a single-phase supply power of either 120 Vac, 110–240 Vac, or 200–240 Vac. Each PDU receives mains power through an inlet located at the bottom. Power is distributed to all outlets on one, two, or three branches depending on the model. A variety of inlet and outlet connectors is available. -
Page 6: Product Ratings
• 16 A continuous (20 A max.) total per outlet group (regardless of 529008 24 A continuous receptacle count used) 529016 • 24 A continuous (30 A max.) total per unit (regardless of receptacle (30 A maximum) count used) Page 6 Optima 529 Series... -
Page 7: Installation
NEMA 5-20P 16 A 20 A NEMA L5-20P 16 A 20 A NEMA L6-20P 16 A 20 A IEC C20 16 A 20 A NEMA L5-30P 24 A 30 A NEMA L6-30P 24 A 30 A Page 7 Optima 529 Series... -
Page 8: Operation
Switch the PDU’s breaker(s) to the On position, and the indicator(s) will be lit. All outlets are now powered. 3.2 Breakers Various models have one breaker or three breakers. When there is a single breaker, in effect this behaves like a main breaker, protecting the whole unit, and providing on/off control for the whole unit. When there are three breakers, each breaker protects one group of outlets. Outlets are organized into identical groups. Following the length of the PDU from the inlet, the first breaker operates the first group of outlets, etc. Each breaker has it’s own indicator. When lit, power is being supplied to the correlating outlet group. All models use 2-pole breakers with both line and neutral routed through the breaker. Page 8 Optima 529 Series... -
Page 9: Specifications
• All multi-breaker models are wired with one outlet group per breaker. Environment 2.50" • Operating Temperature: 32°F to 122°F • Maximum Altitude: 6,562 feet 3.50" • Relative Humidity: 5% to 85% non-condensing 2.50" Page 9 Optima 529 Series... -
Page 10: Contact And Support
Transferability — This warranty is fully transferable to the end user if the purchaser is an original equipment manufacturer and the Marway unit is a component of their product or system sold to an end user. Further Limitations — Marway’s liability under the terms of this warrenty and the purchase and sale of its units is limited to the repair or replacement of its units. Marway shall in no situation be liable for any special, consequential damages ... - Page 11 © 2021–2022, Marway Power Systems, Inc. All rights reserved. Optima™, Optima RCM™, Commander™, TwinPower™, mPower™, and mPower DC™ are trademarks of Marway Power Systems, Inc. All other trademarks are the property of their respective owners. Global Support Contacts Web: www.marway.com Email: support@marway.com...
