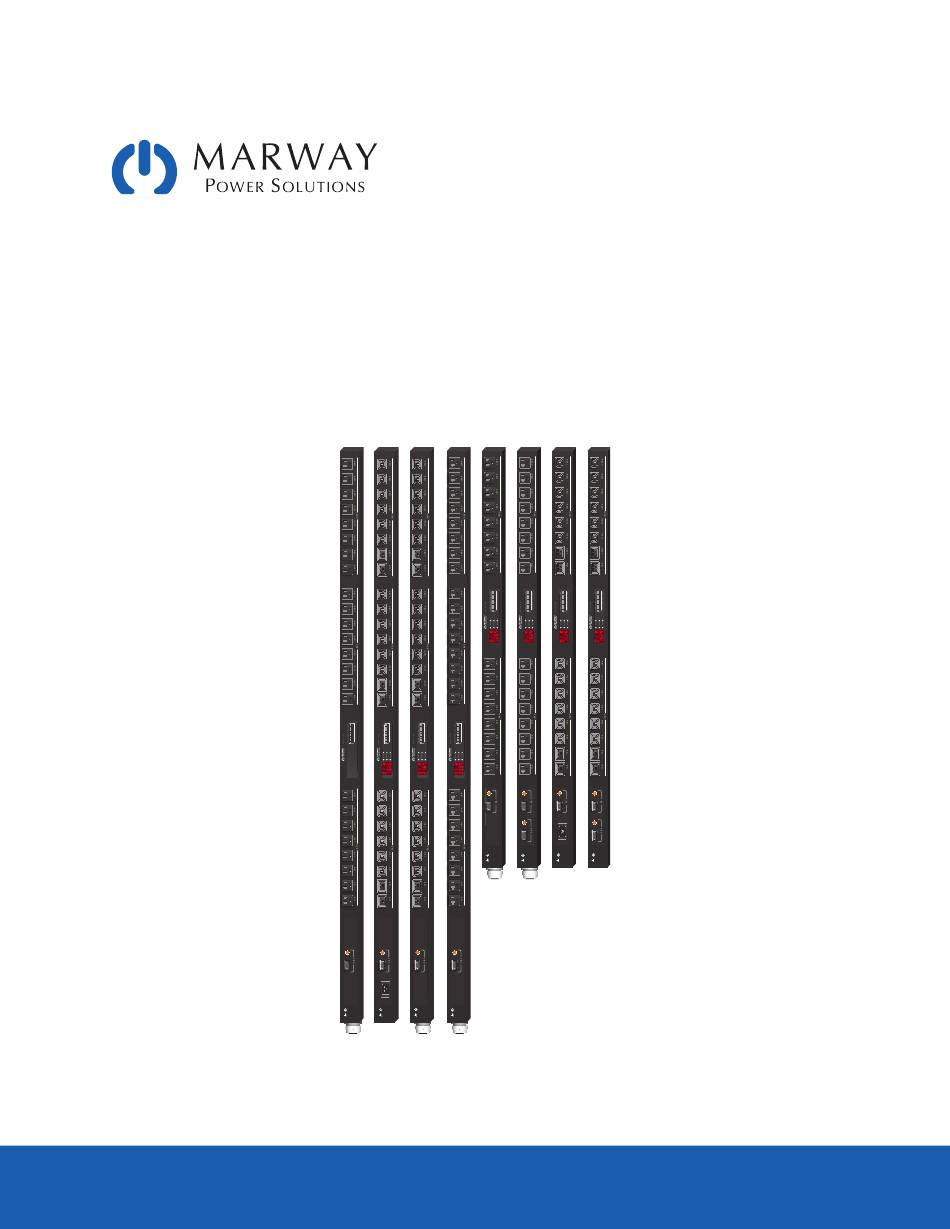

- Page 1 Optima 829 Series ™ Power Distribution Units Operating Guide and Reference Sep 2021 : P/N 501056-000 Rev B...
-
Page 2: Table Of Contents
Installation 2.1 Installation Notes..............7 Operation 3.1 Startup ..................8 3.1.1 Startup Without Configuring the Software ..... 8 3.1.2 Startup to Configure the Software ......... 9 3.2 Ethernet and Serial Control ........... 9 3.3 Breakers .................. 9 3.4 Digital Power Meter Option ............ 9 Specifications Page 2 Optima 829 Series... -
Page 3: General
• This product is intended for installation in a restricted access location by a skilled person. • This product is intended for use by an instructed person. • The equipment is only approved for use within the connection limits stated on the product label. • The ratings for all output receptacles are marked on the chassis. Be sure to observe the ratings for all connected load equipment. Page 3 Optima 829 Series... -
Page 4: Symboles De Documentation (Fr)
• T ous les travaux sur les connexions doivent être effectués sous une tension nulle et ne doivent être effectués que par des techniciens qualifiés et compétents. Des actions inappropriées peuvent entraîner des blessures mortelles et des dommages matériels graves. • C e produit est conçu pour une utilisation à l’intérieur uniquement et ne doit pas être exposé à une humidité excessive. Évitez toute utilisation de liquides à proximité de l’équipement et les conditions susceptibles de provoquer de la condensation. • C e produit est destiné à être installé par une personne qualifiée dans un endroit à accès restreint. • C e produit est destiné à être utilisé par une personne qui a reçu des instructions appropriées. • L ’utilisation de l’équipement est approuvée uniquement dans les limites de connexion indiquées sur l’étiquette du produit. • L es valeurs nominales de toutes les prises de sortie sont indiquées sur leur boîtier. Assurez-vous de respecter les valeurs nominales de tous les équipements de charge raccordés. Page 4 Optima 829 Series... -
Page 5: General Description
5-20P cord Short Height (52.5”) NEMA 829015 PSW / NSW L5-20P cord 829016 PSW / NSW L5-30P cord * A complete part number follows the format of 829NNN-RRR-000 where: • NNN is part of the base part number from the list of models. • RRR defines the RCM capabilities where: Page 5 Optima 829 Series... -
Page 6: Product Ratings
• 100–120 Vac, 1 ɸ , 12 A continuous (15 A max.) per 5-15R receptacle 829007 16 A continuous • 16 A continuous (20 A max.) total per unit (regardless of receptacle 829014 count used) (20 A maximum) 829015 • 100–120 Vac, 1 ɸ , 16 A continuous (20 A max.) per 5-20R receptacle ɸ 100–120 Vac, 1 , 50/60 Hz • 16 A continuous (20 A max.) total per outlet group (regardless of 829008 24 A continuous receptacle count used) 829016 • 24 A continuous (30 A max.) total per unit (regardless of receptacle (30 A maximum) count used) Page 6 Optima 829 Series... -
Page 7: Installation
NEMA 5-20P 16 A 20 A NEMA L5-20P 16 A 20 A NEMA L6-20P 16 A 20 A IEC C20 16 A 20 A NEMA L5-30P 24 A 30 A NEMA L6-30P 24 A 30 A Page 7 Optima 829 Series... -
Page 8: Operation
In the sections below, a startup process is described suitable for first-time network setup, or running without the software. The breaker(s) can be used to manually cut power from the outlets. However, even with the circuit breaker(s) Off, as soon as the inlet of the PDU is plugged into a live facility outlet, the control system of the PDU is powered, and the software will start running. 3.1.1 Startup Without Configuring the Software It is assumed the PDU is not plugged into the facility power source. 1. Switch all breakers on the PDU control panel to the Off position. 2. If there is a facility disconnect switch for the PDU inlet, switch that Off. 3. Insert the PDU’s inlet connector into the facility mains power source. If there is a facility power disconnect, switch that to the On position. 7.1. At this point, the PDU control system is energized. Outlets will not have power, because the PDU’s breaker(s) are off, but the software will begin its startup process. The default factory setting configures the software to switch the outlet relays on, however, while the breaker(s) are off, power is not actually delivered to the outlets. Allow about a minute for the software to switch on the relays. 4. Switch the breaker(s) to the On position, and the indicator(s) will be lit. This indicator does not necessarily mean power is applied to the outlets. It simply means the breaker is on and power is available to that branch’s outlets. The internal outlet control relays are able to prevent power from reaching the outlets. However, with a factory default setup, power should now be applied to all outlets. The PDU can continue to be used in this way as long as needed. The software can be configured later, or can be left unconfigured if it will not be used. Page 8 Optima 829 Series... -
Page 9: Startup To Configure The Software
The Ethernet connection supports 10/100 Base-T, IPv4 DHCP and manual addressing. It is recommended to use a manual address, or DHCP in conjunction with MAC ID reservations so that the IP address stays consistent. The Serial interface is RS-232 implemented in an RJ45 connector. A protocol conversion cable with a USB connection at one end and an RJ45 at the other end is ideal for connecting a computer to the Serial port. Marway offers these cables as part number 311118-000. They can also be found on many online cable retailer web sites. 3.3 Breakers Various models have one or two breakers. When there is a single breaker, in effect this behaves like a main breaker, protecting the whole unit, and providing on/off control for the whole unit. When there are two breakers, each breaker protects one group of outlets. Outlets are organized into identical groups. Following the length of the PDU from the inlet, the first breaker operates the first group of outlets, etc. Each breaker has it’s own indicator. When lit, power is being supplied to the correlating outlet group. All models use 2-pole breakers with both line and neutral routed through the breaker. 3.4 Digital Power Meter Option If the PDU is equipped with an inlet power monitoring system, the front control panel will include a digital display and keypad. The display will default to showing the amperage being drawn by the system as a whole (all outlets, plus the internal control system). It will update approximately every 3 seconds. The keypad can be used to navigate through power values for volts, amps, watts, voltamps, voltamps reactive, power factor, and Hertz. For complete display and keypad details, refer to the document Optima RCM User Guide : Software and Basic Controls Reference located on our website at http://www.marway.com/docs. Obtain that document, and review the Display and Keypad Operation c Page 9 Optima 829 Series... -
Page 10: Specifications
• RESTful API • Access to power data, alarms, • Telnet/SSH Web Interface outlet switching • SNMP • HTTP, HTTPS Alerts Other Protocols Command Line Interface • Email over SMTP • SNTP, SNMP, FTP • Telnet, SSH, RS-232 • SMS over SMTP • SNMP v2/v3 Traps Page 10 Optima 829 Series... - Page 11 © 2021, Marway Power Systems, Inc. All rights reserved. Optima™, Optima RCM™, Commander™, TwinPower™, mPower™, and mPower DC™ are trademarks of Marway Power Systems, Inc. All other trademarks are the property of their respective owners. Global Support Contacts Web: www.marway.com Email: support@marway.com...
