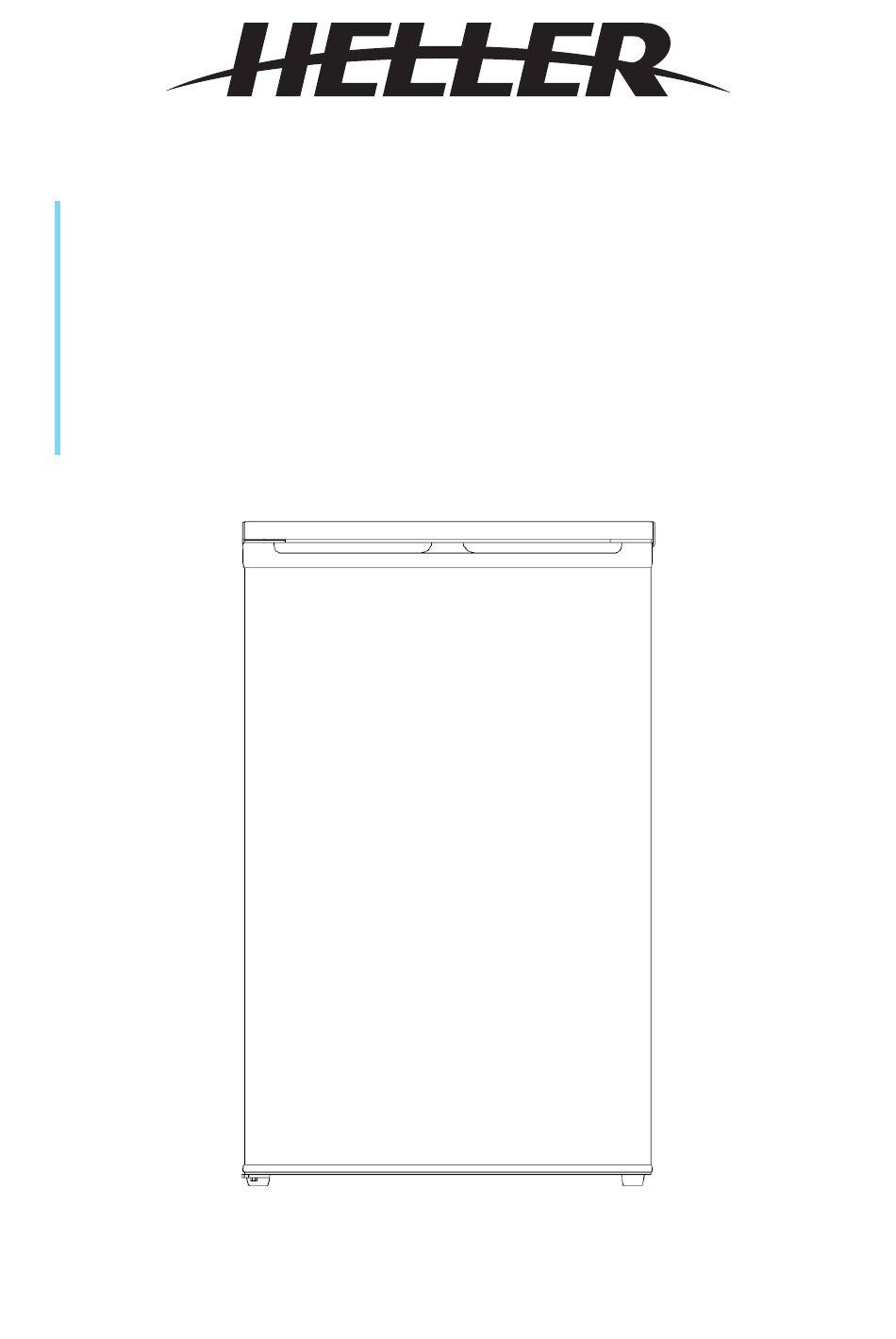

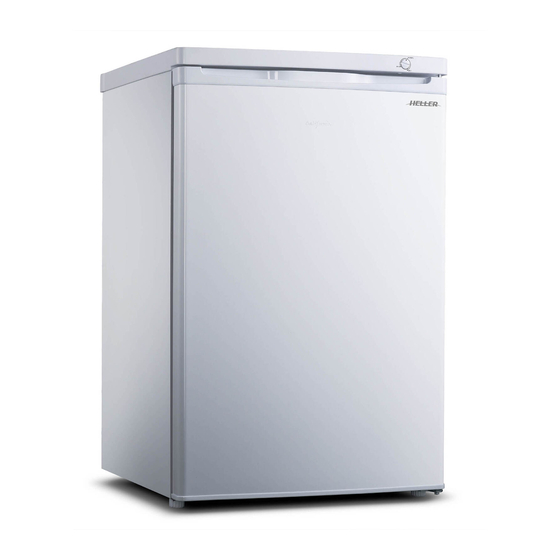

- Page 1 Instruction Manual 91L Bar Freezer Model No.: H91F Read this instruction manual before using your product for the first time. Ensure you save this manual in a safe place for future reference.
-
Page 2: Safety Information
Safety Information In the interest of your safety and to ensure correct use of the product, before installing and first using the appliance, read this instruction manual carefully, including hints and warning. To avoid potential hazards or accidents, it is important to ensure that all people using this appliance are thoroughly familiar with the safety features and operation of the product. - Page 3 Safety Information WARNING! Do not touch the light bulb if it has been on for an extended period of time as it can become very hot. • Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
-
Page 4: Care And Cleaning
Safety Information Daily Use • Do not let hot items to come into contact with the plastic parts and components of the appliance. • Do not place food products directly against the rear wall. • Frozen food must not be re-frozen once it has been thawed out. •... -
Page 5: Energy Saving
Safety Information Service • Any electrical work required to service the appliance should be carried out by a qualified electrician or certified personnel. • This product must be serviced by an authorised service center, and only genuine spare parts must be used. •... - Page 6 Overview Note: The above diagram is meant for reference only. Actual appliance may be different.
-
Page 7: Reverse Door
Reverse Door Tool(s) required: Phillips screwdriver, Flat-bladed screwdriver, Hexagonal spanner • Ensure the unit is unplugged and empty. • To remove the door, it is necessary to tilt the unit backwards. It is highly recommended to rest the unit on something solid, so that the appliance will not slip during the door reversing process. - Page 8 Reverse Door 4. Unscrew the bottom hinge. Then, remove the adjustable feet from both sides (1). 5. Remove the top cover and thermostat knob then place it aside. 6. Refit the bracket belonging to the bottom hinge pin. Replace both adjustable feet. 7.
-
Page 9: Space Requirement
Reverse Door 8. Return the top cover to its original position and fix it with the 2 screws that were previously removed. 9. Fix the thermostat knob. Installation Space Requirement • Ensure there is enough space for the door to open. -
Page 10: Electrical Connection
Installation Positioning Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating place of the appliance. Location The appliance should be installed a safe distance away from sources of heat such as radiators, boilers, direct sunlight etc. -
Page 11: Daily Use
Daily Use First Use Cleaning the interior Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand new product, then dry thoroughly. Important! Do not use detergents or abrasive powders, as these will damage the finish. -
Page 12: Helpful Hints And Tips
Daily Use Helpful hints and tips Hints for freezing To help you make the most of the freezing process, here are some important hints: • The maximum quantity of food which can be frozen in 24 hours is shown on the rating plate. -
Page 13: Defrosting The Freezer
Daily Use Important! Ethereal oils and organic solvents can deteriorate plastic parts, e.g. lemon juice or the juice from orange peels, butyric acid, cleansers that contain acetic acid. • Do not clean the appliance or any appliance parts with abrasive cleaners or the above mentioned substances. - Page 14 Daily Use Troubleshooting Caution! Before troubleshooting. disconnect the power supply. Only a qualified electrician must perform troubleshooting that is not outlined in this manual. Important! There are some sounds during normal use (compressor, refrigerant circulation). If the malfunction shows again, contact the Service Center.
-
Page 15: R600A Refrigerant Warning
R600a Refrigerant Warning • This appliance contains a small quantity of R600a refrigerant which is environmentally friendly, but flammable. It does not damage the ozone layer, nor does it increase the greenhouse effect. • During transportation and installation, ensure that the tubing of the refrigerant circuit is not damaged.
