  • Page 1 H20B User’s Manual...
  • Page 2 This manual might have typographical errors, and its content can be changed without prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the contents of the User̓ s Manual.
  • Page 4 InBody Test Posture Stretch out your arms. Avoid contact with your waist. Put your thumb on the round electrodes. Place your heel at the end of the heel electrodes and allow the rest of your foot to point forward.

  • Page 5: Table Of Contents

    Contents Precautions Product Components and Set-Up Instructions A. Product Components B. Installing InBody App C. Pairing InBody H20B with InBody App Weight Measurement III. InBody Test A. Precautionary Steps B. Test Posture C. Test Instructions D. Understanding InBody Outputs Troubleshooting A.

  • Page 6: Precautions

    Co., Ltd. is not liable for any incidental or consequential damages that occur. 2. Place the InBody on a flat and vibrationless floor. Placing it on an uneven floor, like a carpet or a mattress can result in incorrect measurements. For long-term storage, remove the battery pack, and place it on a flat surface.

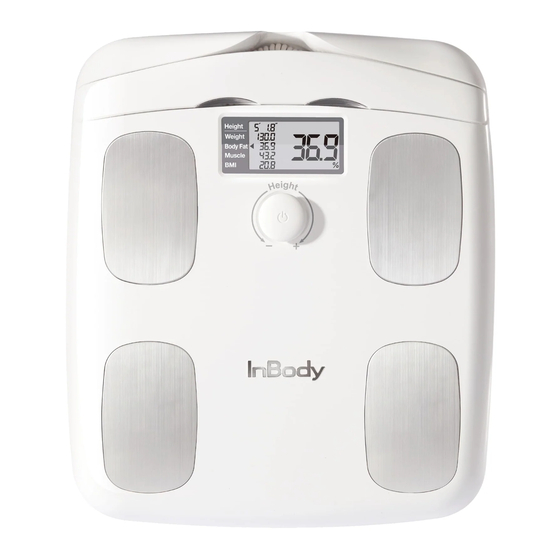

  • Page 7: Product Components

    User stands on the device, placing the back of heels on the rear electrodes. Footplate: Measures the weight of the user. Battery insert: The InBody H20B takes 4 AA batteries. Open the cover to insert the batteries. Back cover: Do not open, dismantle or attempt to repair your device yourself.

  • Page 8: Installing Inbody App

    Scan the QR code below. For an Android phone, turn on NFC (Read/Write) and tap the NFC mark to move to the app download page automatically. Once the download is complete, open the InBody App and register as a new user. Keep the Bluetooth ON to use the InBody H20B.

  • Page 9: Pairing Inbody H20B With Inbody App

    II. Product Components C. Pairing InBody H20B with InBody App...
  • Page 10 II. Product Components * The InBody H20B will automatically transfer data to the InBody App once syncing is complete.

  • Page 11: Weight Measurement

    When the device is being calibrated, a scrolling rectangle will appear on the screen. If you want to test on the InBody H20B immediately after measuring weight, turn the dial and input height. Then, hold the hand electrodes and stand with the correct test...

  • Page 12: Inbody Test

    IV. InBody Test A. Precautionary Steps Do not eat immediately before testing on the InBody. Test in the morning, if possible. Test after going to the bathroom. Test prior to working out. Test prior to taking a shower, bath or using a sauna.

  • Page 13: Test Posture

    IV. InBody Test B. Test Posture Arms and legs aren’t Arms are extended Arms are too high Arms are too low touching each other Arms are bent Do not let your arms touch your stomach and make sure your arms are Hold the hand electrodes extended from your body and wear light clothes with sleeves.

  • Page 14: Test Instructions

    IV. InBody Test C. Test Instructions Power ON: Press the dial to turn the power on. Open InBody App: Initiate the InBody Test through the app.
  • Page 15 IV. InBody Test Step on the InBody H20B to begin testing.
  • Page 16 Hold the hand electrodes as previously described. After finishing the weight measurement, it will beep twice and the InBody Test will initiate. The Test runs for about 10 seconds and is finished when it rings. Once “End” appears on the screen, step down from the footplate.
  • Page 17 IV. InBody Test Check Test Results Data will automatically sync between the InBody H20B and InBody App.

  • Page 18: Understanding Inbody Outputs

    IV. InBody Test D. Understanding InBody Outputs Body fat mass and muscle mass change with diet and exercise. • Weight : Total body mass Weight is the total mass of the human body. • Percent Body Fat : Total mass of fat mass divided by total body mass A person’s body fat percentage is the total fat mass divided by the person’s weight.

  • Page 19: Troubleshooting

    V. Troubleshooting A. Error Message The InBody displays an error message on the LCD screen if a disruption occurs. Error messages caused by incorrect testing posture If the following error messages appear, check your testing posture and try again. Error messages caused by internal malfunction of the InBody H20B...

  • Page 20: Solving Simple Problems

    V. Troubleshooting B. Solving Simple Problems If the problem still persists, please contact us at info.us@inbody.com for assistance. Q1. The power does not turn on after pressing the dial. This can happen when the batteries are dead. Replace the batteries.

  • Page 21: Frequently Asked Questions (Faq)

    Maintain this posture until the Test is complete. If you have dry hands and/or feet, clean them with an InBody Tissue before testing. InBody recommends testing during the same time of day, under the same conditions for accuracy.
  • Page 22 Q6. How do you make the results stay on the screen longer? InBody Test results are shown on the LCD screen for 100 seconds. If you want to see it for a longer period of time, turn the dial.

  • Page 23: Others

    VII. Others A. Classification Body Composition Analyzer of Direct Segmental Multi-frequency Bioelectrical Impedance Analysis Method. • Type of protection against electric shock: Internal Power Supply • Degree of protection against water infiltration: Standard Equipment (No special protection against external water infiltration) •...
  • Page 24 InBody Co., Ltd. under the copyright laws. This manual might have typographical errors, and its content can be changed without prior notice. InBody Co., Ltd. shall not be liable for any errors, incidental, or consequential damages that occurred by not complying with the contents of the Users̓ Manual.

  • Page 25: Product Warranty

    1. This product undergoes a strict review process to ensure quality control 2. The warranty period of this product follows the warranty period policy of the manufacturer. 3. If the product malfunctions under normal use, InBody will repair it, free of charge during the warranty period.
  • Page 28 © 2020 InBody Co., Ltd. All rights reserved. BM-USA-G5-C-210316...
