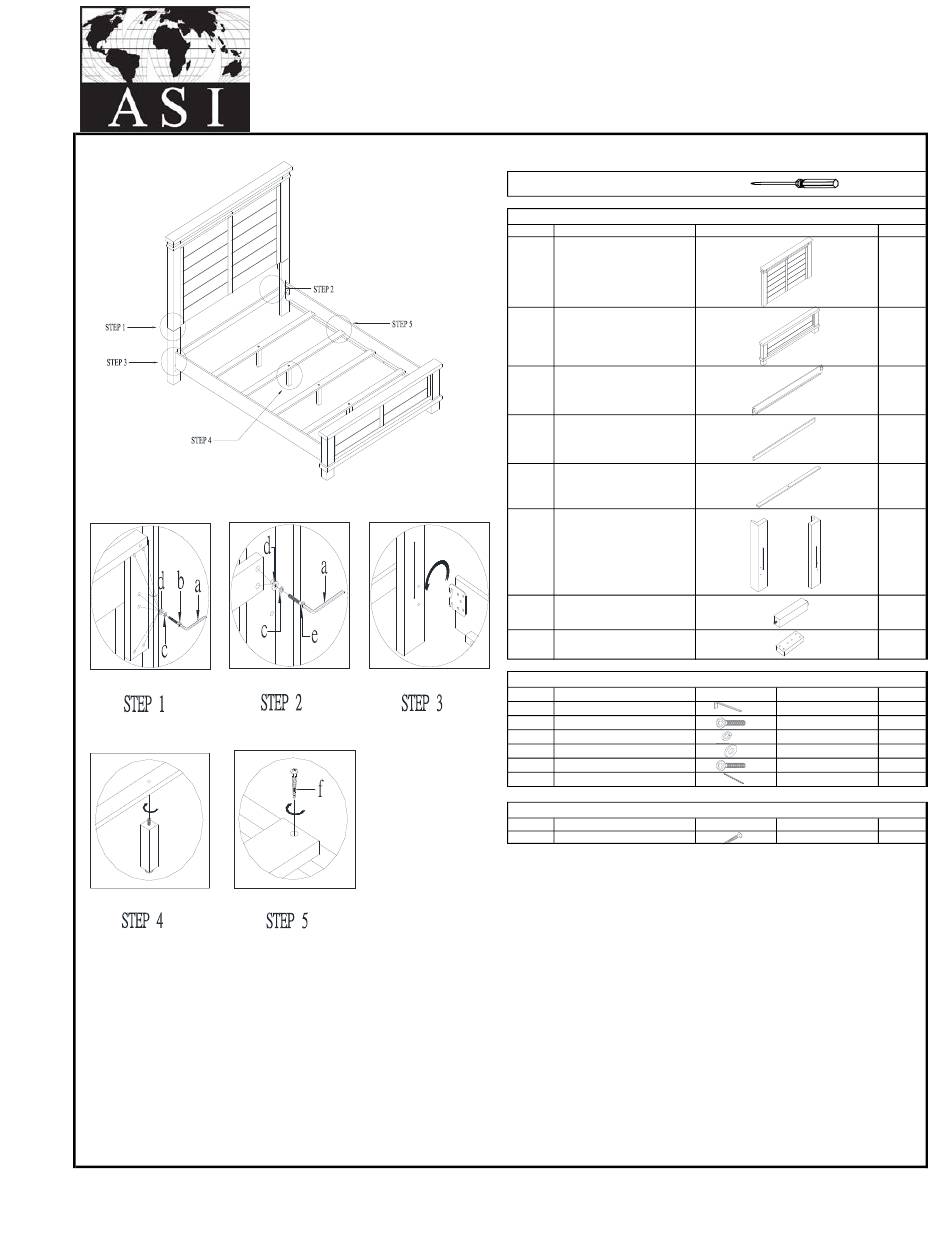

ASI 2650-21H Assembly Instructions

Thank you for purchasing this quality product. Be sure to check all packing material carefully
for small parts that may have come loose inside the carton during shipment.
STEP 1: ATTACH CONNECT PANEL (H) TO HEADBOARD POST (F) AND HEADBOARD (A) BY USING ALLEN KEY (a), BOLT (b), SPRING WASHER (c) AND FLAT WASHER (d).
STEP 2: ATTACH CROSS BAR (D) TO THE HEADBOARD POST (F) BY USING ALLEN KEY (a), BOLT (e), SPRING WASHER (c) AND FLAT WASHER (d).
STEP 3: HANG SIDE RAILS (C) TO THE HEADBOARD POST (F) AND FOOTBOARD (B).
STEP 4: ATTACH SUPPORT LEG (G) TO SLATS (E) BY TURNING CLOCKWISE.
STEP 5: ATTACH SLATS (E) TO SIDE RAILS (C) BY USING SCREW (f).
IMPORTANT NOTE:
1. HARDWARE BAG FOR HEADBOARD IS PACKED WITH HEADBOARD.
2. HARDWARE BAG FOR FOOTBOARD AND SLATS IS PACKED WITH FOOTBOARD.
Page 1 of 1
EXCLUSIVE AMERICAN SIGNATURE DESIGN-DO NOT REPRODUCE WITHOUT WRITTEN PERMISSION
ASSEMBLY INSTRUCTIONS
ITEM NO.: 2650-21H/21F/21R
QUEEN BED W/REGULAR FOOTBOARD & RAILS
TOOLS REQUIRED (NOT PROVIDED):
PHILLIPS SCREWDRIVER
Parts List
NO. DESC
A HEADBOARD
B
FOOTBOARD
C
BED SIDE RAILS
D CROSS BAR
E BED SLATS
HEADBOARD POST
F
（L + R）
G
SUPPORT LEG
H
CONNECT PANEL

HARDWARE LIST FOR HEADBOARD

NO. DESCRIPTION
a Allen Key
b Bolt
c Spring Washer
d Flat Washer
e Bolt
g STRAIGHT ALLEN KEY

HARDWARE LIST FOR FOOTBOARD AND SLATS

NO. DESCRIPTION
f Screw
SKETCH
SKETCH SIZE
∮1/4"x 15 x 45mm
4 x 74 x 29mm
∮1/4"x∮11x 2mm T
∮1/4"x∮18 x 2mm T
∮1/4"x 15 x 38mm
4*100mm
SKETCH SIZE
#8 x 30mm
Made In Vietnam
Q'TY
1 PC
1 PC
2 PCS
1 PC
4 PCS
2 PCS
4 PCS
2 PCS
Q'TY
1 PC
12 PCS
16 PCS
16 PCS
4 PCS
1 PC
Q'TY
8 PCS
