VELARE™ BTM SURFACE MOUNTED FILLER MODULE INSTALLATION GUIDE (PG 1 of 2)
IMPORTANT: READ THESE INSTRUCTIONS COMPLETELY PRIOR TO BEGINNING
INSTALLATION. SAVE FOR FUTURE REFERENCE.

INSTALLATION OF MOUNTING HARDWARE

Appropriate wall reinforcement must be prepared prior to initiating the Velare™ BTM System installation.

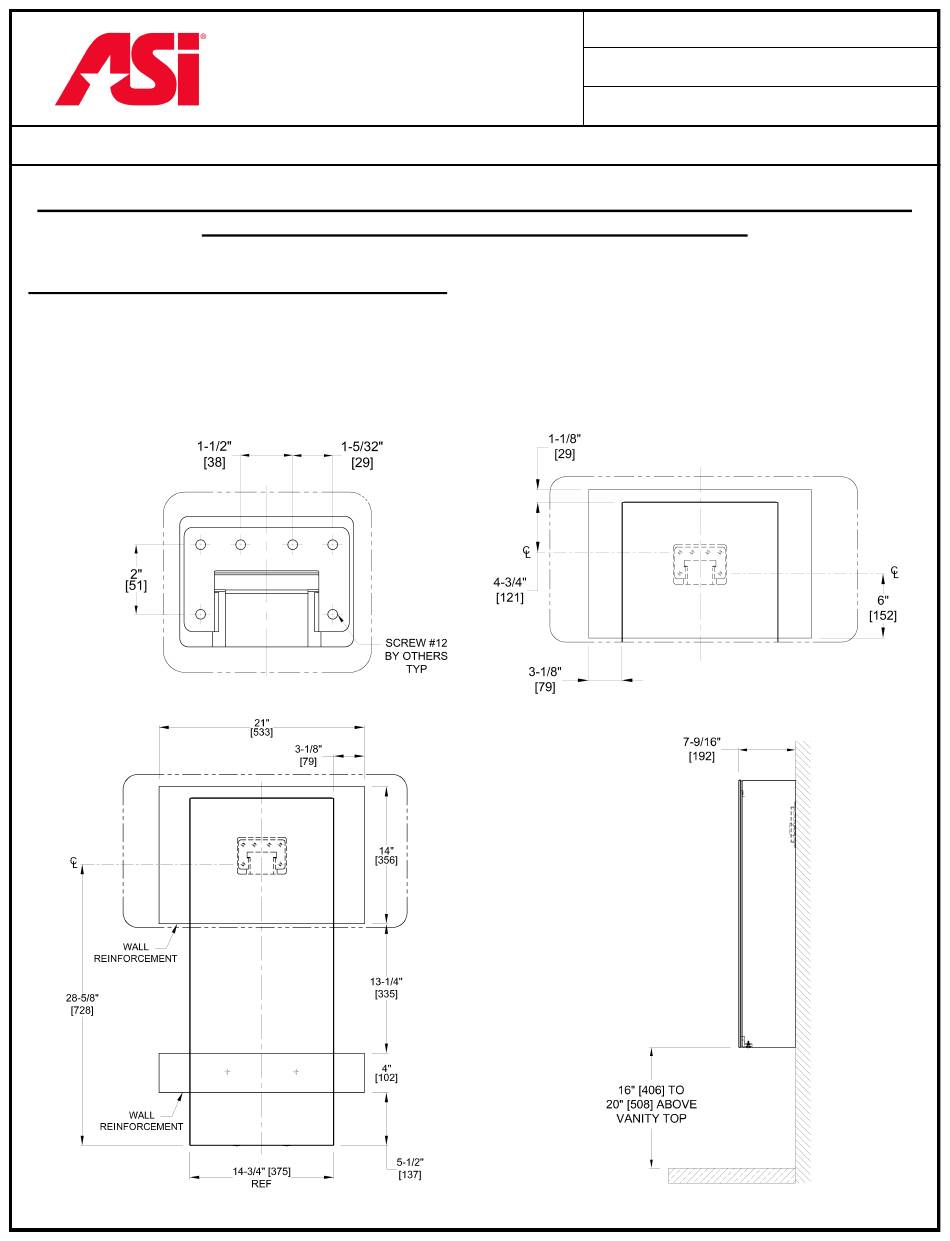

Install the mounting plate on wall using six (6) № 12 self-threading, pan-head screws (by others) ( Fig. 1) into appropriate anchoring and
wall reinforcements (Fig. 2). Hang cabinet on wall mounting hanger hook (Fig. 3). Suggested mounting height is to position bottom of
module 16" [406] to 20" [508] above vanity top so bottom aligns with Model №'s 0661-X or 0663-X on either side of Filler Module (Fig.
4). Install two (2) №12 self-tapping locking screws (by others) into appropriate anchoring to prevent unit from being lifted off hanger
hooks (Fig. 2).
AMERICAN SPECIALTIES, INC.
441 Saw Mill River Road, Yonkers, NY 10701
(914) 476.9000 • (914) 476.0688
www.americanspecialties.com
FIG. 1
FIG. 2
THIS MANUFACTURER RESERVES THE RIGHT TO MAKE CHANGES IN DESIGN OR DIMENSIONS WITHOUT FORMAL NOTICE
MODEL №: 0661-FM-14
ISSUED:
18 MAR 2019
REVISED:
FIG. 3
FIG. 4
