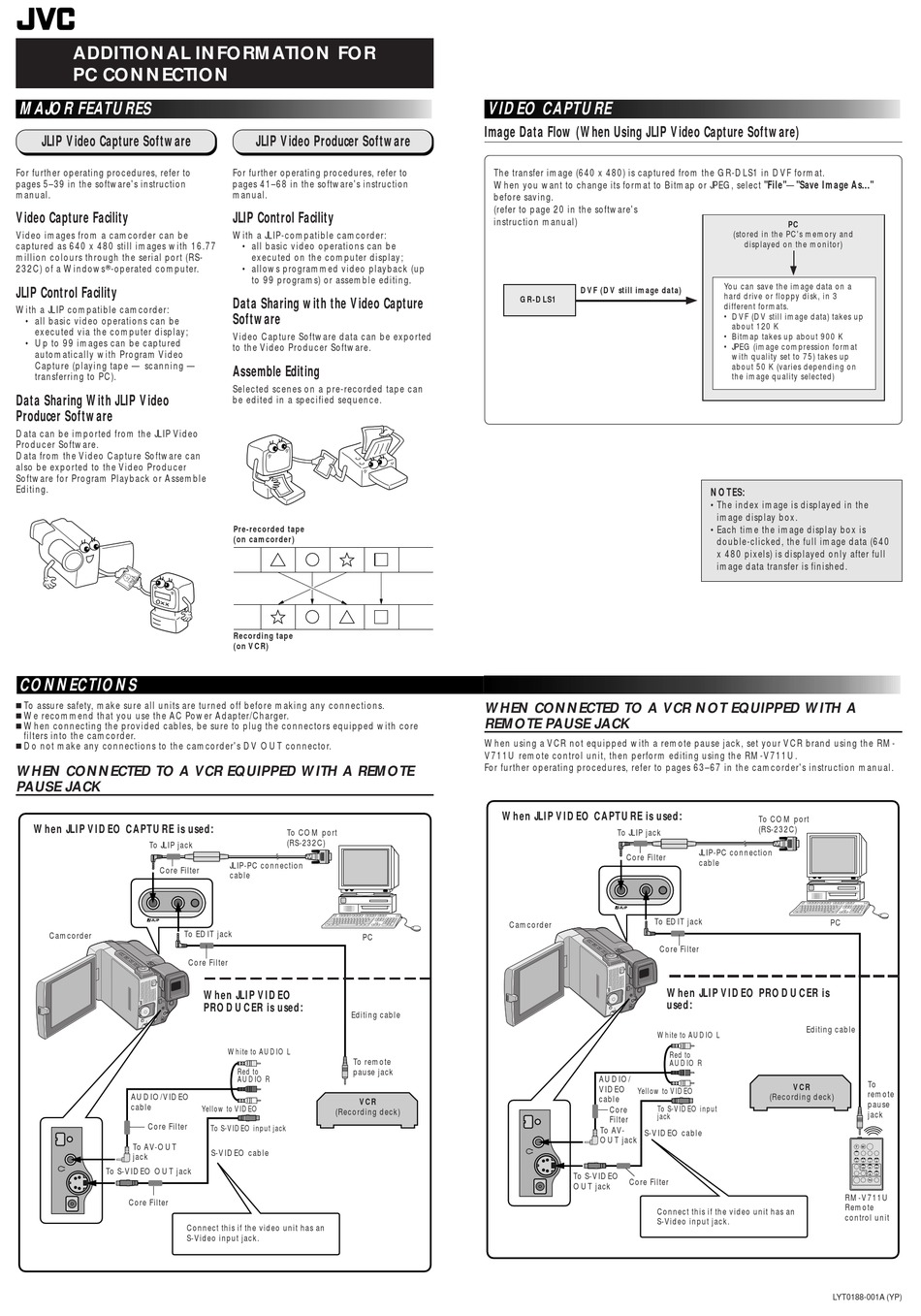

JVC GR-DLS1EK Additional Information

ADDITIONAL INFORMATION FOR
PC CONNECTION

MAJOR FEATURES

JLIP Video Capture Software
For further operating procedures, refer to
pages 5–39 in the software's instruction
manual.
Video Capture Facility
Video images from a camcorder can be
captured as 640 x 480 still images with 16.77
million colours through the serial port (RS-
232C) of a Windows -operated computer.
JLIP Control Facility
With a JLIP compatible camcorder:
• all basic video operations can be
executed via the computer display;
• Up to 99 images can be captured
automatically with Program Video
Capture (playing tape — scanning —
transferring to PC).
Data Sharing With JLIP Video
Producer Software
Data can be imported from the JLIP Video
Producer Software.
Data from the Video Capture Software can
also be exported to the Video Producer
Software for Program Playback or Assemble
Editing.
CONNECTIONS
To assure safety, make sure all units are turned off before making any connections.
We recommend that you use the AC Power Adapter/Charger.
When connecting the provided cables, be sure to plug the connectors equipped with core
filters into the camcorder.
Do not make any connections to the camcorder's DV OUT connector.
WHEN CONNECTED TO A VCR EQUIPPED WITH A REMOTE
PAUSE JACK
When JLIP VIDEO CAPTURE is used:
To JLIP jack
Core Filter
To EDIT jack
Camcorder
Core Filter
AUDIO/VIDEO
cable
Core Filter
To AV-OUT
jack
To S-VIDEO OUT jack
Core Filter
Connect this if the video unit has an
S-Video input jack.
JLIP Video Producer Software
For further operating procedures, refer to
pages 41–68 in the software's instruction
manual.
JLIP Control Facility
With a JLIP-compatible camcorder:
• all basic video operations can be
executed on the computer display;
• allows programmed video playback (up
to 99 programs) or assemble editing.
Data Sharing with the Video Capture
Software
Video Capture Software data can be exported
to the Video Producer Software.
Assemble Editing
Selected scenes on a pre-recorded tape can
be edited in a specified sequence.
Pre-recorded tape
(on camcorder)
Recording tape
(on VCR)
To COM port
(RS-232C)
JLIP-PC connection
cable
PC
When JLIP VIDEO
PRODUCER is used:
Editing cable
White to AUDIO L
To remote
pause jack
Red to
AUDIO R
VCR
Yellow to VIDEO
(Recording deck)
To S-VIDEO input jack
S-VIDEO cable
VIDEO CAPTURE
Image Data Flow (When Using JLIP Video Capture Software)
The transfer image (640 x 480) is captured from the GR-DLS1 in DVF format.
When you want to change its format to Bitmap or JPEG, select "File"—"Save Image As..."
before saving.
(refer to page 20 in the software's
instruction manual)
DVF (DV still image data)
GR-DLS1
WHEN CONNECTED TO A VCR NOT EQUIPPED WITH A
REMOTE PAUSE JACK
When using a VCR not equipped with a remote pause jack, set your VCR brand using the RM-
V711U remote control unit, then perform editing using the RM-V711U.
For further operating procedures, refer to pages 63–67 in the camcorder's instruction manual.
When JLIP VIDEO CAPTURE is used:
To JLIP jack
Core Filter
To EDIT jack
Camcorder
White to AUDIO L
AUDIO/
VIDEO
Yellow to VIDEO
cable
Core To S-VIDEO input
jack
Filter
To AV-
S-VIDEO cable
OUT jack
To S-VIDEO
Core Filter
OUT jack
Connect this if the video unit has an
S-Video input jack.
PC
(stored in the PC's memory and
displayed on the monitor)
You can save the image data on a
hard drive or floppy disk, in 3
4
different formats.
• DVF (DV still image data) takes up
about 120 K
• Bitmap takes up about 900 K
• JPEG (image compression format
with quality set to 75) takes up
about 50 K (varies depending on
the image quality selected)
NOTES:
•The index image is displayed in the
image display box.
•Each time the image display box is
double-clicked, the full image data (640
x 480 pixels) is displayed only after full
image data transfer is finished.
To COM port
(RS-232C)
JLIP-PC connection
cable
PC
Core Filter
When JLIP VIDEO PRODUCER is
used:
Editing cable
Red to
AUDIO R
VCR
(Recording deck)
LYT0188-001A (YP)
To
remote
pause
jack
T W
RM-V711U
Remote
control unit
