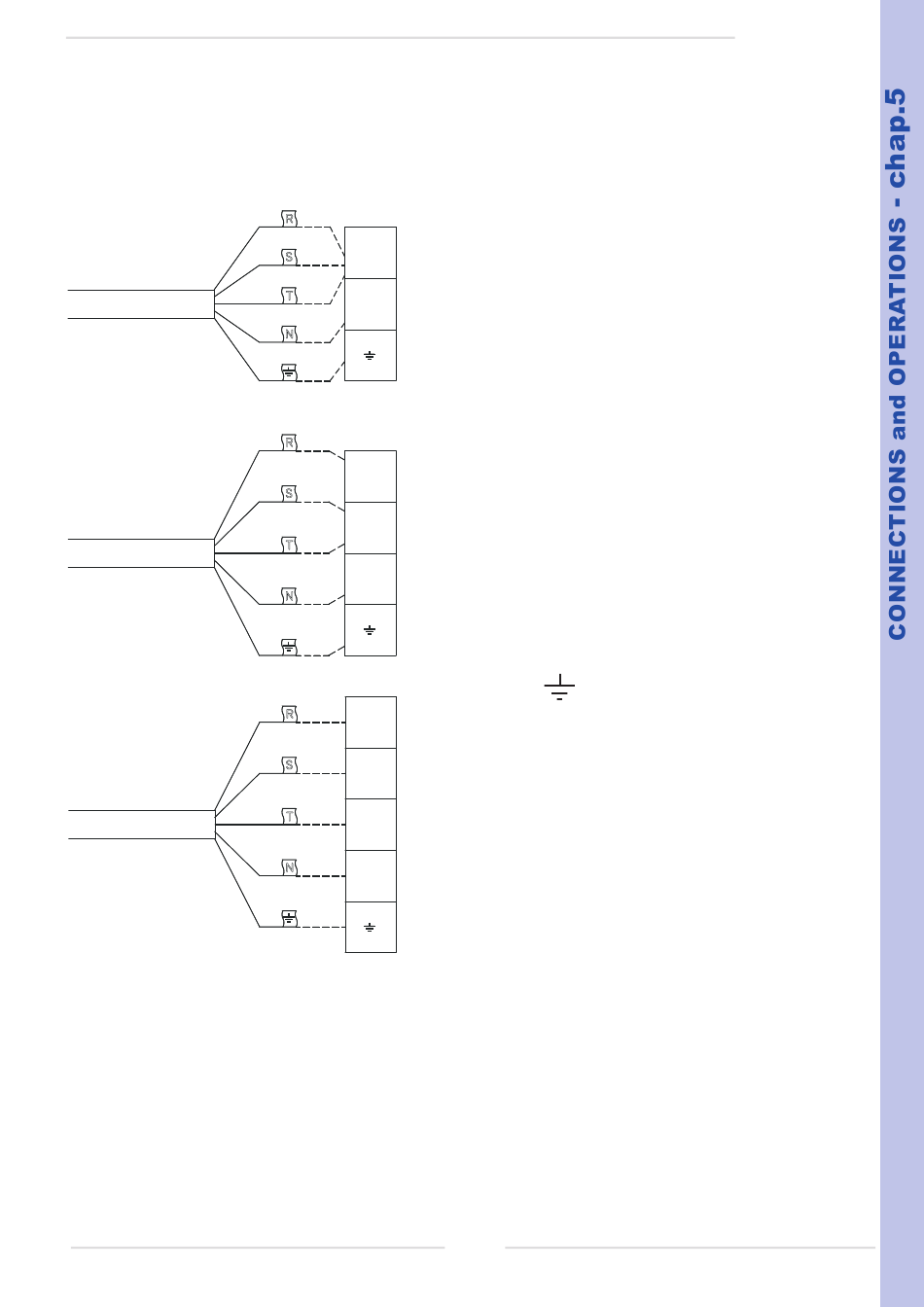

SINGLE-PHASE 230V
MONOFASE 230V
+ EARTH
+ TERRA
C
TRIFASE 230V THREE-PHASE 230V
+ EARTH
+ TERRA
C
THREE-PHASE 400V
TRIFASE 400V
+ NEUTRAL
+ NEUTRO
+ EARTH
+ TERRA
C
MA
D
NE
NE
F
N
BL
GV
MA
R
NE
S
F
NE
T
BL
GV
MA
R
NE
S
F
NE
T
BL
N
GV
11
english
LEGEND
MA
Brown
Ne
Black
BL
Blue
GV
Yellow-Green
C
Machine cable
F
Electricity mains
R-S-T
Phase
D
Phase
N
Neutral
Earth
