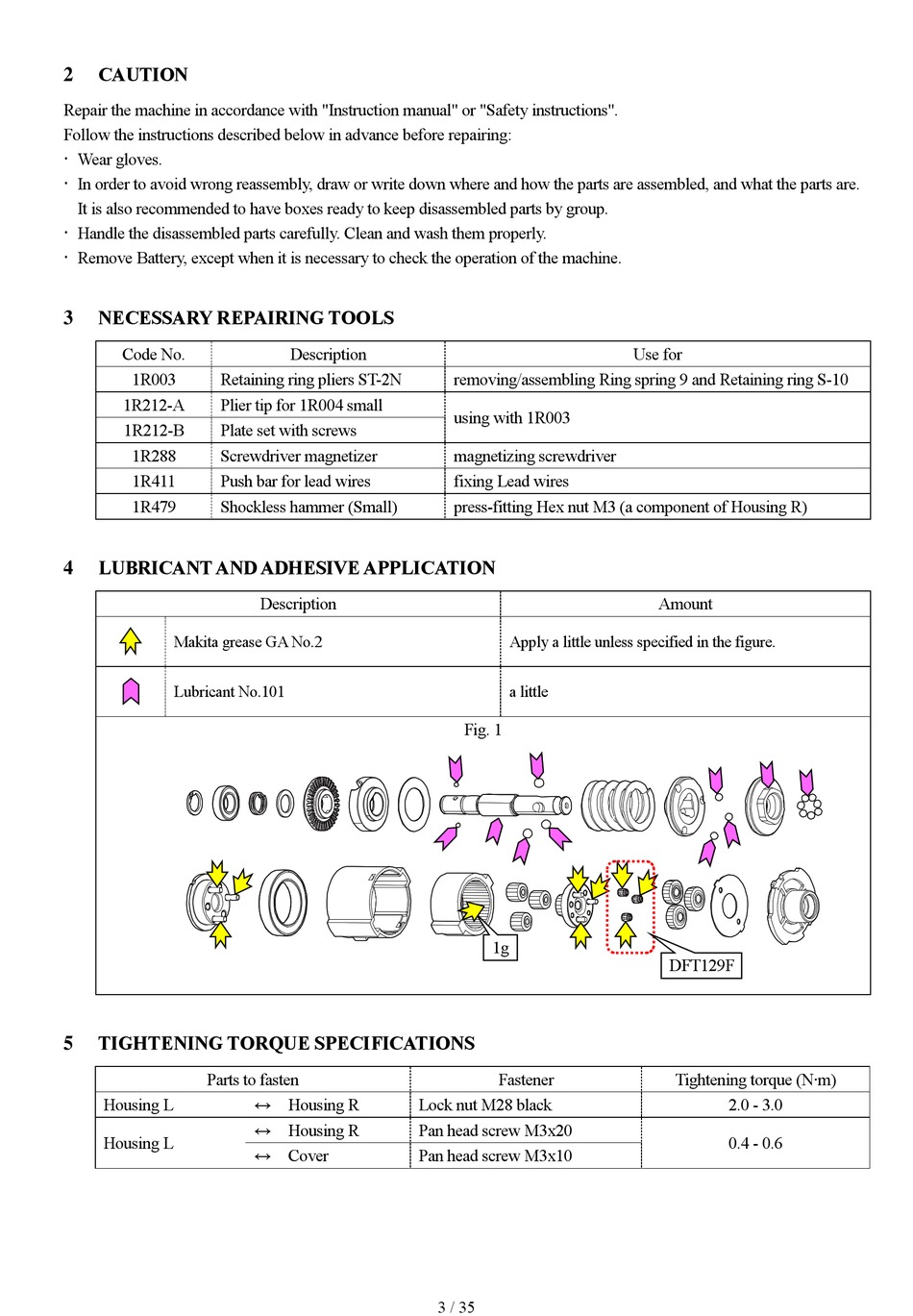

CAUTION

2
Repair the machine in accordance with "Instruction manual" or "Safety instructions".
Follow the instructions described below in advance before repairing:
 Wear gloves.
 In order to avoid wrong reassembly, draw or write down where and how the parts are assembled, and what the parts are.
It is also recommended to have boxes ready to keep disassembled parts by group.
 Handle the disassembled parts carefully. Clean and wash them properly.
 Remove Battery, except when it is necessary to check the operation of the machine.

NECESSARY REPAIRING TOOLS

3
Code No.
1R003
Retaining ring pliers ST-2N
1R212-A
Plier tip for 1R004 small
1R212-B
Plate set with screws
1R288
Screwdriver magnetizer
1R411
Push bar for lead wires
1R479
Shockless hammer (Small)

LUBRICANT AND ADHESIVE APPLICATION

4
Makita grease GA No.2
Lubricant No.101

TIGHTENING TORQUE SPECIFICATIONS

5
Parts to fasten
Housing L
Housing L
Description
Description
↔ Housing R
Lock nut M28 black
↔ Housing R
Pan head screw M3x20
↔ Cover
Pan head screw M3x10
removing/assembling Ring spring 9 and Retaining ring S-10
using with 1R003
magnetizing screwdriver
fixing Lead wires
press-fitting Hex nut M3 (a component of Housing R)
Apply a little unless specified in the figure.
a little
Fig. 1
1g
Fastener
3 / 35
Use for
Amount
DFT129F
Tightening torque (N∙m)
2.0 - 3.0
0.4 - 0.6
