Selecting the die ..............8 Use the die with the greatest feasible height....9 Selecting the punch ............10 Checking penetration depth of the punch......11 Operation ................13 Working with the N 700-0 ..........13 Changing the cutting direction ...........14 Nibbling with templates............15 Making inner cutouts............15 Maintenance ..............16 Changing the tool...............18...
Safety General safety rules Ø Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. Follow precisely the directions contained therein. Ø Read the Operator's Manual and the safety instructions Rest of the world (Material number 125699, red document) in their entirety before starting up the machine.
Ø Arrange for start-ups and checks on manual electric tools to be carried out by a trained specialist. Only used the original accessories provided by TRUMPF. Risk of injury from high-temperature and sharp chips! High-temperature and sharp chips are expelled from the chip ejector at high speed.
37 Cap screw (2 pieces fastening the handle Punch guide 21 Eccentric shaft 38 Handle (can be mounted in Die carrier 36 Clamping screw (fastening screw 2 different positions) for the die carrier) 226 On/Off switch Nibbler N 700-0 Fig. 9041 Description E210EN_03.DOC...

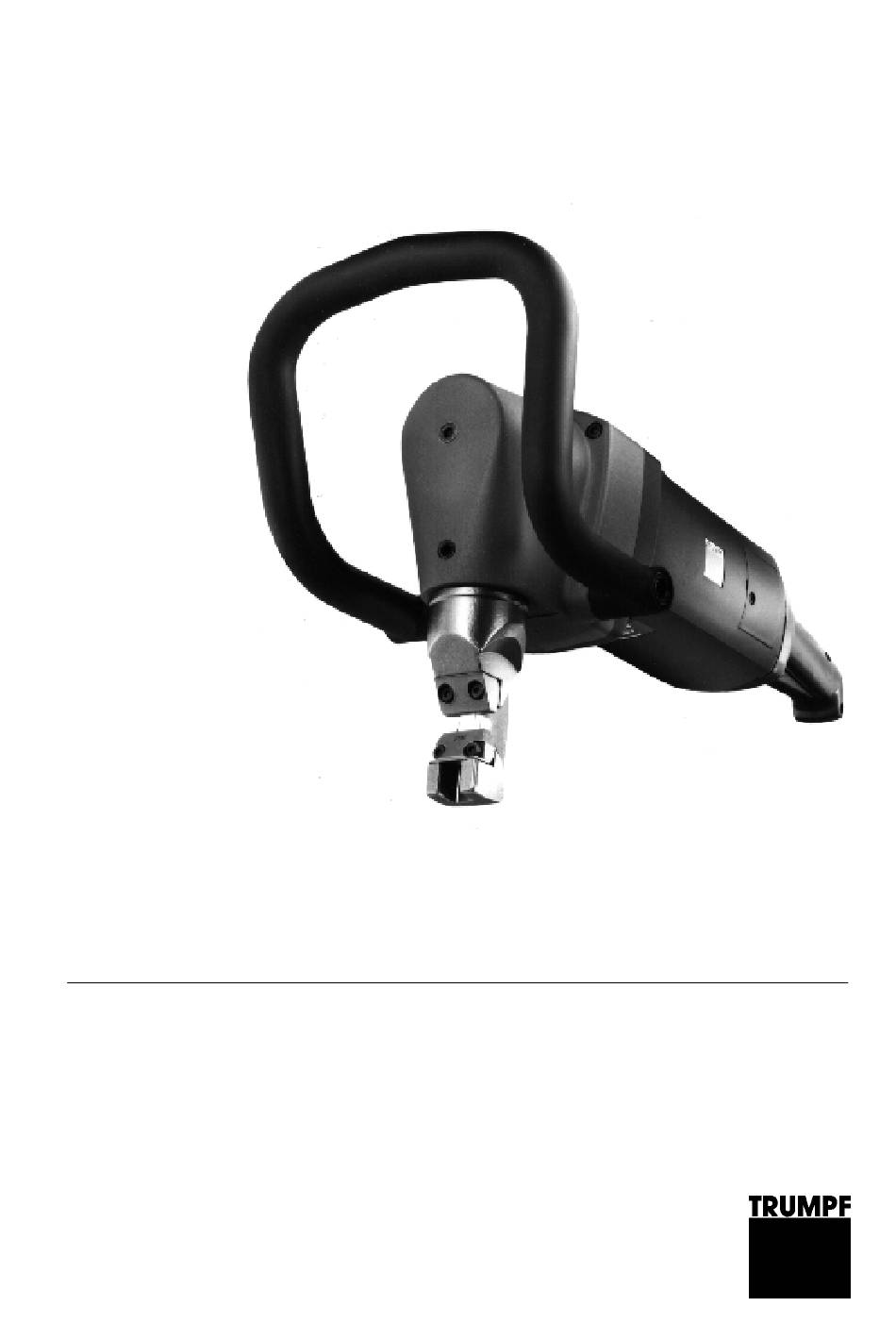

Ø Use machine only for the processing and materials which are described under "Correct use". Warning The TRUMPF Nibbler N 700-0 is an electric hand tool used for the following applications: · Slitting plate-shaped workpieces made of a punchable material such as steel, aluminium, non-ferrous heavy metals, and plastic.
Technical data Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 7.0 mm 7.0 mm 7.0 mm 0.28 in · Steel 400 N/mm² ·...
Tool assembly Selecting the die One of the following types of dies can be selected for the machining process, depending on thickness, tensile strength and type of workpiece: Types of dies Figur: 9431 Type of die Material identification number 098723 098722 098721 Table 3...
Use the die with the greatest feasible height Workpiece Punch guide Clearance between sheet Punch surface and punch guide Direct clearance from the die to the punch Fig. 16811 Note Take care to ensure that the clearance X is kept as small as possible.
Selecting the punch 2 different punches are available for machining sheets of different tensile strengths: · Standard punch for the machining of sheets with a tensile strength of up to 400 N/mm² (e.g. mild steel), Order No. 104589. Standard punch Fig.
Checking penetration depth of the punch Die carrier 36 Clamping screw Punch Penetration depth 21 Eccentric shaft Penetration depth of the punch Fig. 9015 Tool assembly E210EN_03.DOC...
Page 12
The penetration depth of the punch into the die should be 1 to 3 mm. 1. Rotate the eccentric shaft (21) until the punch (9) has reached its maximum penetration depth. 2. Loosen clamping screw (36). 3. Rotate the die carrier (7) by 360° as often as needed until the punch penetration depth of 1-3 mm has been achieved.
Operation Working with the N 700-0 Damage to property possible due to too-high network voltage! Damage to the motor. Caution Ø Check the power supply. The power supply must correspond to the information on the machine type plate. Ø When using an extension cord which is longer than 5 m, take ²...
Recommended for aluminium Wisura oil, Order No. 125874 Recommendation for oil Table5 Working with the N 700-0 1. Do not move the machine towards the workpiece until full speed has been reached. 2. Machine/process the material. Machine the desired cutting line.
Nibbling with templates The following requirements must be met when nibbling with templates: · The template must be at least 5 mm thick. · The contour of the template must have a clearance of 11 mm to the contour to be nibbled out. ·...
Ø Repairs should be carried out only by a trained specialist. Warning Wearing plate 36 Clamping screw Screws for fastening of die and Die carrier Lubricating grease "S1" TRUMPF punch guide Punch Order No. 121486 Punch guide Fig. 9016 Maintenance...
Page 17
Maintenance point Procedure and time interval Recommended lubricants Order No. Lubrication agents Punch Check hourly Punch and die carrier With each tool change Lubricating grease "S1" 121486 Gearbox and After 300 operating hours, Lubricating grease "G1" 0139440 gear head (2) arrange for a trained specialist to relubricate or to replace the lubricating grease.
4. Remove punch (9) by rotating it. Installing the punch 1. Lightly lubricate the square part of the punch and die carrier bore hole with lubricating grease "S1" TRUMPF Order No. 121486. 2. Ensure that penetration depth is correct. Changing the die and the punch guide 1.
Resharpening tools Punch Fig. 9432 The punch can be reground by a total of approximately 10 mm. · Regrind the grinding surface in accordance with the following diagram, making sure that it is well-cooled during the process. · Lightly apply fine-grained oil stone to the cutting edge. ·...
Wearing plate Elevation Depression Fig. 9468 Wearing plate The wearing plate protects the die carrier against excessive wearing. (Order No. 112922) 1. Replace the wearing plate when the elevation has become worn down. 2. Replace the wearing plate when the depression is no longer visible.
Required delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Wearing parts E210EN_03.DOC...
Original accessories Designation Order No. Set of tools (punch and die, mounted) 103555 handle Allen key DIN 911-12 067920 Allen key 118860 Allen key DIN 911-5 067857 2 cap screws M14x45 for the 105083 fastening of the handle DIN 912 Tube lubricating grease "S1"...
