Summary of Contents for Trumpf TruTool S 160

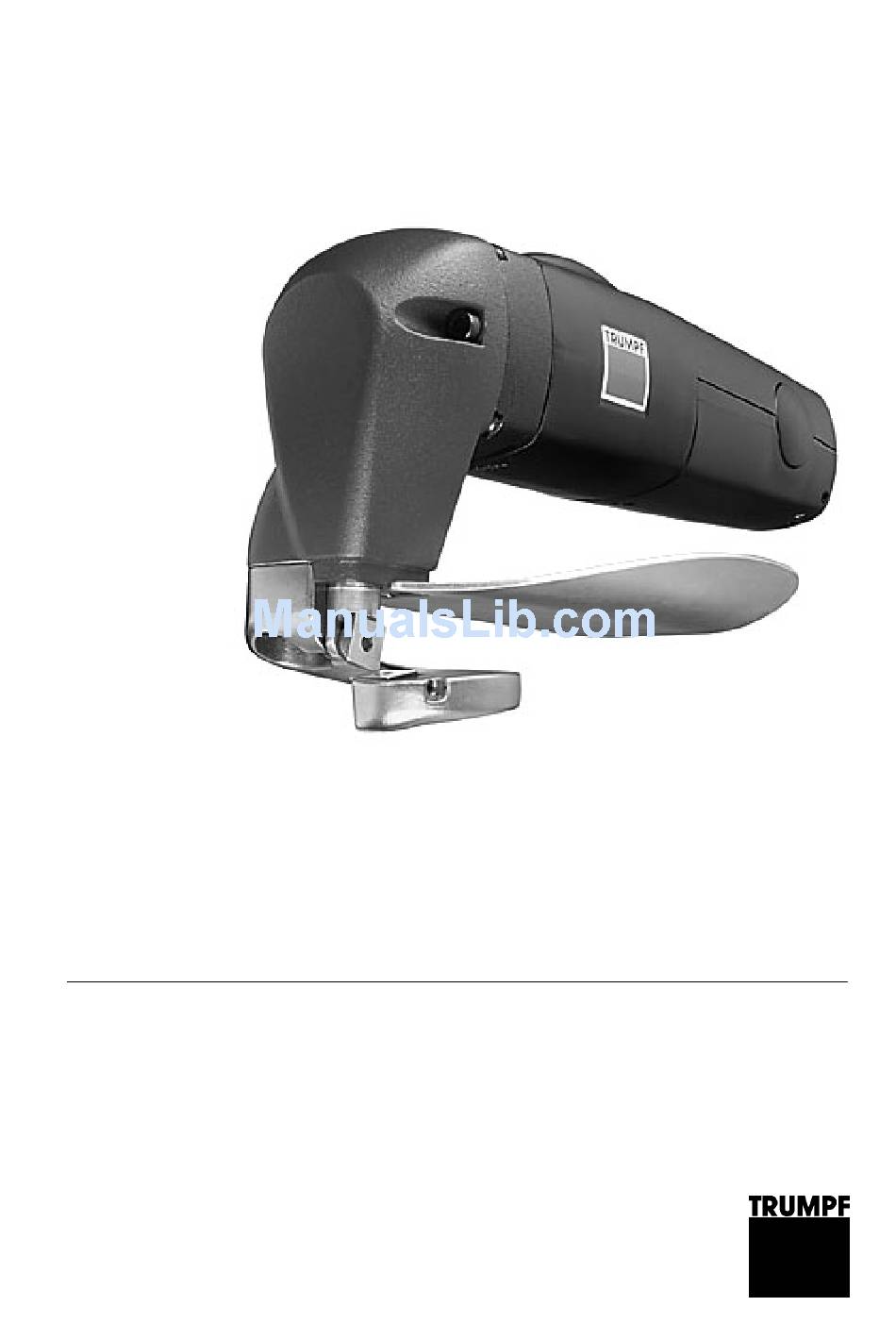

- Page 1 Operator's manual TruTool S 160 (1A1) english...
-
Page 2: Table Of Contents
Correct use ................6 Technical data TruTool S 160 ..........7 Tool assembly..............8 Selecting the blade ..............8 Setting the cutting clearance ..........9 Operation ................10 Working with the TruTool S 160 ........10 Maintenance ..............12 Changing the blade............13 Replacing carbon brushes ..........14 Wearing parts..............15 Original accessories............16... -
Page 3: Safety
Safety Read the Operator's Manual and the general safety rules USA/CAN (Material number 1239438, red document) in their entirety before starting up the machine. Follow precisely the directions contained therein. Rest of the world Read the Operator's Manual and the safety instructions (Material number 125699, red document) in their entirety before starting up the machine. - Page 4 Always guide the electric cord away from the back of the machine and do not pull it across sharp edges. Arrange for start-ups and checks on manual electric tools to be carried out by a trained specialist. Only used the original accessories provided by TRUMPF. Safety E390EN_04.DOC...
-
Page 5: Description
Description 12 Ram 17 Upper blade and lower blade 20 Chip deflector 13 Fixing screw 18 Adjusting screw 163 On/Off switch 15 Fixed blade carrier TruTool S 160 Fig. 24013 Description E390EN_04.DOC... -
Page 6: Correct Use
For processing and materials, only use machines which are named in "Correct use". Warning The TRUMPF portable shears TruTool S 160 are an electric hand tool used for the following applications: • Slitting of plate-shaped workpieces made of steel, aluminium, plastic, etc. -
Page 7: Technical Data Trutool S 160
Technical data TruTool S 160 Rest of the world Values Values Values Values Voltage 230 V 120 V 110 V 120 V Frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz • Steel 400 N/mm² 1.6 mm 1.6 mm 1.6 mm 0.063 in... -
Page 8: Tool Assembly
Tool assembly Selecting the blade Damage to property can result from improper blade selection! The quality of the cut will be severely impaired and the individual tools will be overloaded. Caution Use only appropriate tools. The blade is notable for the following points: •... -
Page 9: Setting The Cutting Clearance
Setting the cutting clearance The blade clearance "a" is factory-set to a sheet thickness of 1.0 m when the machine is first delivered. Set the following values to obtain optimum cutting results: Sheet thickness "s" [mm] Blade clearance = cutting clearance "a"... -
Page 10: Operation
Never touch the tool while the machine is running. Always guide the machine away from the body while working. Do not work holding the machine above your head. Working with the TruTool S 160 Switching on the Move the On/Off switch to the front. - Page 11 Cut in upside-down position, meaning that the cutting table is facing upwards. Switching off the Move the On/Off switch to the rear. TruTool S 160 Note Do not burden the device to such an extent that it comes to a standstill.
-
Page 12: Maintenance
Maintenance Possible lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Damage to property possible due to blunt tools! Overloading of the machine. Check the cutting edge of the cutting tool hourly for wear. -
Page 13: Changing The Blade
Changing the blade Possible lethal danger due to electric shock! Pull the plug out of the socket when carrying out tool changes and before all maintenance work on the machine. Danger Upper and lower blades are identical. They each have 4 cutting edges and can be used interchangeably. -
Page 14: Replacing Carbon Brushes
Replacing carbon brushes The motor comes to a standstill when the carbon brushes are worn out. Have the carbon brushes checked and replaced as needed by a trained technician. Note Only use original replacement parts and take note of the information on the type plate. -
Page 15: Wearing Parts
Required delivery type (e.g. air mail, courier, express mail, – ordinary freight, parcel post). 4. Send the order to the TRUMPF representative office. For TRUMPF service addresses, see the address list at the end of the document. Wearing parts E390EN_04.DOC... -
Page 16: Original Accessories
Original accessories Designation Material No. Set of tools (upper and lower multi- 002946 edge cutters, mounted) Allen key DIN 911-2 Allen key DIN 911 094840 Case 135280 Operator's manual 947984 Safety information (red document), 125699 other countries Safety information (red document), 1239438 Table 7 Original accessories...
