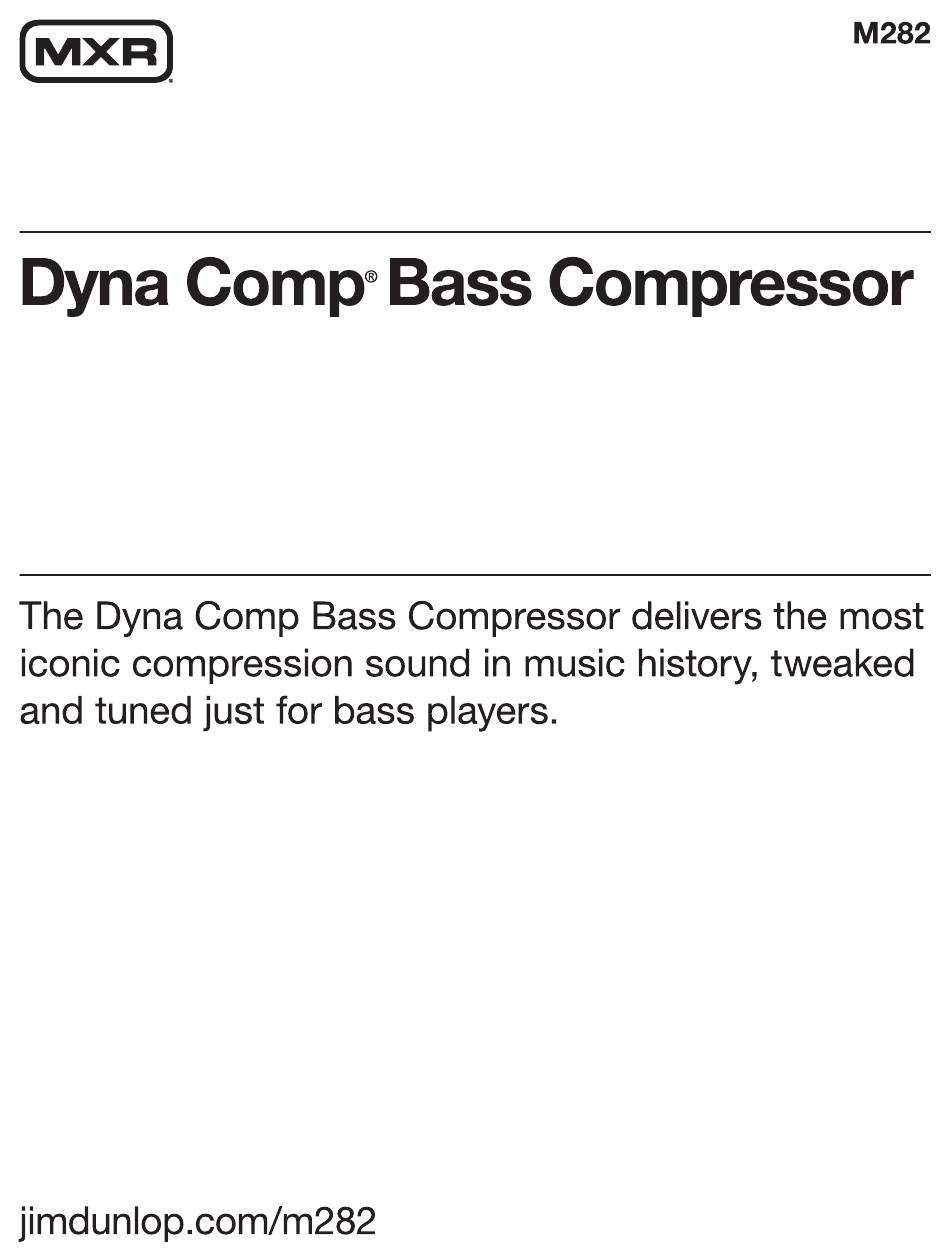

Summary of Contents for mxr Dyna Comp Bass Compressor

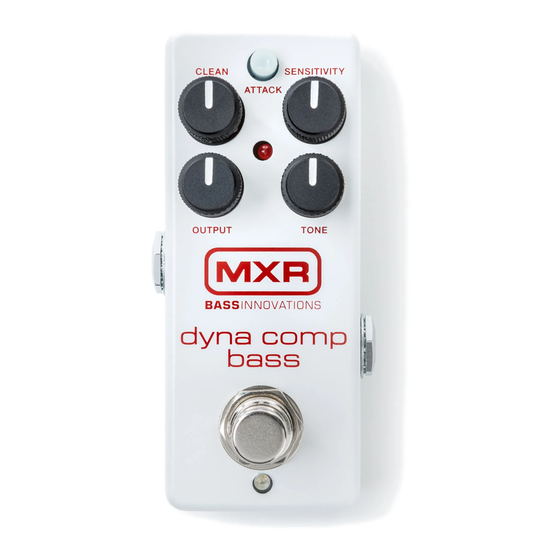

- Page 2 External Controls 1 OUTPUT knob adjusts volume of compressed signal 2 CLEAN knob adjusts wet/dry signal mix added to the compressor’s output 3 SENSITIVITY knob adjusts sustain time 4 ATTACK switch toggles between slow & fast attack times 5 TONE knob cuts/boosts midrange at 1kHz 6 FOOTSWITCH toggles effect on/bypass (blue LED indicates on) M282 | Dyna Comp Bass Compressor 2...
- Page 3 Basic Operation Power The Dyna Comp® Bass Compressor is powered by one 9-volt battery (remove bottom plate to install), the Dunlop ECB003 9-volt adapter, or the DC Brick™, Iso-Brick™, and Mini Iso-Brick™ power supplies. Directions Run a cable from your guitar to the M282’s INPUT jack and run another cable from the M282’s OUTPUT jack to your amplifier.
- Page 4 Specifications Input Impedance 600 k Ω Output Impedance 25 k Ω Max Input Level -5 dBV Max Output Level +2 dBV Max Compression 36 dB THD* 0.2% Noise Floor** -100 dBV Current Draw 11 ma Tone +/- 7dB, 1kHZ Power Supply 9 VDC * Measurements made at -dBV, 1kHZ ** A-weighted, all controls mid position...
