Heated Units

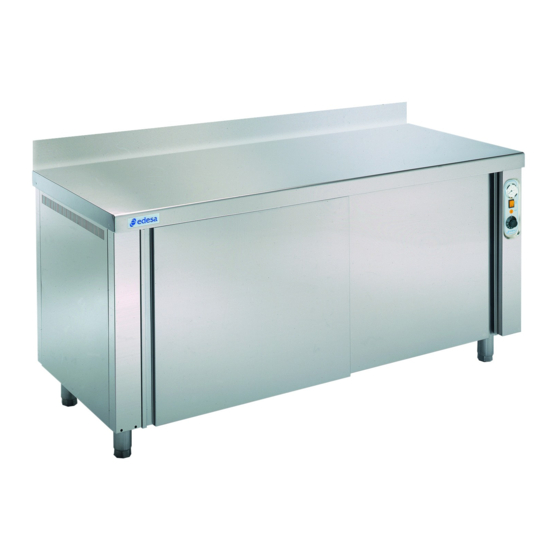

MC-120, MC-180, MCP-120, MCP-180, SMC-12, SMC-16
Installation,operation and maintenance
manual
Versión 1.2
Advertisement
Table of Contents
Related Manuals for Edesa MC-120
Summary of Contents for Edesa MC-120
- Page 1 Heated Units MC-120, MC-180, MCP-120, MCP-180, SMC-12, SMC-16 Installation,operation and maintenance manual Versión 1.2...
- Page 2 Labour and transport costs are the exclusive responsibility of the customer in all cases. Edesa does not accept any responsibility for defects attributable to transport unless claims are made within 24 hours of receipt of the goods.
- Page 3 SAFETY PRECAUTIONS Warning: As this unit is used for heating, the well is a high-temperature zone. Avoid direct contact and take all appropriate safety precautions. While work is being done on the heating system, the unit must be disconnected from the mains power supply.
- Page 4 ELECTRIC DIAGRAM 1-Switch 2-Thermostat 3-Fan 4-Heater 5-Terminal strip 6-Indicator light 7-Relay MC-120, MCP-120, SMC-12 SMC-16 MC-180, MCP-180 Versión 1.2...
- Page 5 Modelos / Models MC-120, MCP-120, MC-180, MCP-180, SMC-12, SMC-16 cumplen con la directiva del Consejo de Europa: comply with the directive of the Council of Europe: 89/392/CEE Directiva Seguridad General Máquinas / General Safety of Machines Directive...
