Bottom View of Source Unit
Fond de l'appareil pilote
Vista inferior de la unidad fuente
Be sure to unfold and read the next page.

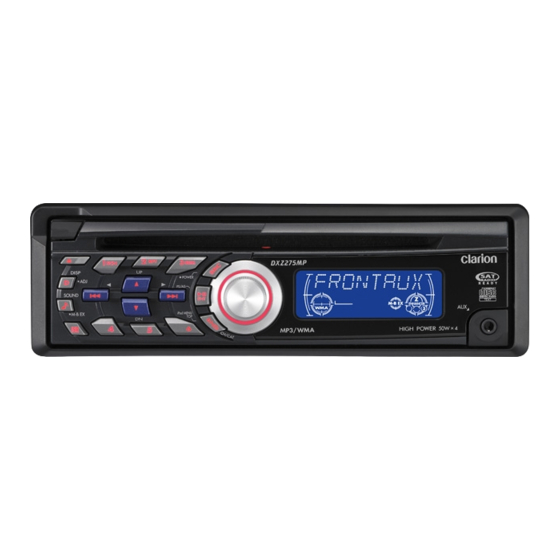

DXZ275MP/DXZ375MP
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DXZ275MP and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarion DXZ275MP

Summary of Contents for Clarion DXZ275MP

  • Page 1 Owner’s manual Mode d’emploi Manual de instrucciones DXZ275MP DXZ375MP CD/MP3/WMA RECEIVER WITH CeNET CONTROL AUTORADIO CD/MP3/WMA / AVEC COMMANDE CeNET RECEPTOR CD/MP3/WMA CON CONTROL CeNET This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 2 Once you’re registered, we can keep you informed of important product information. Register at www.clarion.com - it’s easy to keep your Clarion product up to date. INFORMATIONS DE L’ENREGISTREMENT DE PRODUITS CLARION Cher client: Nous vous remercions d’avoir acheté...

  • Page 3: Table Of Contents

    Thank you for purchasing this Clarion product. Please read this owner’s manual in its entirety before operating this equipment. After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 4: Features

    • High Visibility Single Line Display • 2ch/2V RCA Output (DXZ275MP) • 4ch/4V RCA Output (DXZ375MP) • Front Panel 3.5mm Auxiliary Input (DXZ275MP) • Built-in LPF/HPF (DXZ375MP) 2. PRECAUTIONS 1. When the inside of the car is very cold and...

  • Page 5: Handling Compact Discs

    If you try to play such a compact disc, you may not be able to get it back out of the CD player or it may damage the CD player. • Do not use compact discs that have large scratches, are misshapen, cracked, etc.

  • Page 6: Nomenclature

    [CD SLOT] • CD insertion slot. [AUX] input jack • The input jack for connecting an external device. DXZ275MP/DXZ375MP [IR RECEIVER] • Receiver for remote control unit. (Operating range: 30° in all directions) [ROTARY] knob • Adjust the volume by turning the knob clockwise or counterclockwise.

  • Page 7: Display Items

    The screen will recover when it returns to normal temperature. Operation status indication Frequency, Titles, Clock, etc. are displayed : Z-enhancer indication : MAGNA BASS EX indication : MUTE indication : Disc or Folder random/ repeat/scan indication : Random indication : Repeat indication : Scan indication DXZ275MP/DXZ375MP...

  • Page 8: Dcp

    2. Insert the left side of the DCP into the main unit. DXZ275MP/DXZ375MP Storing the DCP in the DCP Case Hold the DCP, in the orientation as shown in the figure below, and put it into the supplied DCP case.

  • Page 9: Remote Control

    • When replacing the battery, insert properly, with +/– polarities oriented correctly. • Do not subject battery to heat, or dispose of in fire or water. Do not attempt to disassemble the battery. • Dispose of used batteries properly. Insertion guide DXZ275MP/DXZ375MP...

  • Page 10: Functions Of Remote Control Unit Buttons

    ISR memory (radio mode only). [DISP] button • Press to alternate between main display, title display and clock time display. DXZ275MP/DXZ375MP Signal transmitter [ BND ] [ DISP ] [ RDM ] [ RPT ]...
  • Page 11 • Moves preset channels up and down. [SCN] button • Press to perform preset scan. • Press and hold the button for 2 seconds or longer to perform auto store. [RDM] button • Press to alternate between TV and VTR. DXZ275MP/DXZ375MP...

  • Page 12: Operations

    The system check starts within the unit. When the system check is complete, press the [SRC] button again. DXZ275MP/DXZ375MP Selecting a mode 1. Press the [SRC] button to change the operation mode.

  • Page 13: Sound Adjustment

    The factory default setting is “CENTER” (center). (Adjustment range: RIGHT12 to LEFT12 (right 12 to left 12)) ] button. ] button to return to previous ] button. ] button to return to previous ] button. ] button to return to previous DXZ275MP/DXZ375MP...
  • Page 14 The setting changes in the following order: “120Hz” “THROUGH” The factory default setting is “THROUGH” (through). DXZ275MP/DXZ375MP Setting the MAGNA BASS EXTEND The MAGNA BASS EXTEND does not adjust the low frequencies like the normal sound adjustment function, but emphasizes the deep bass frequencies to provide you with a dynamic sound.

  • Page 15: Radio Operations

    1. Press the [BND] button and select the desired band (FM or AM). 2. Press and hold the [ or longer. The stations with good reception are stored automatically to the preset channels. ] button for 2 seconds DXZ275MP/DXZ375MP...
  • Page 16 • Be careful not to press and hold the [ for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ275MP/DXZ375MP Instant station recall (ISR) Instant station recall is a special radio preset that instantly accesses a favorite radio station at a touch of a button.

  • Page 17: Cd/Mp3/Wma Operations

    2. Tracks are played in the order that they were recorded onto a disc. (Tracks might not always be played in the order displayed on the PC.) 3. Some noise may occur depending on the type of encoder software used while recording. DXZ275MP/DXZ375MP...

  • Page 18: Ejecting A Cd

    It may be impossible to extract these discs from the unit and they may cause the unit to break down. DXZ275MP/DXZ375MP Ejecting a CD 1. Press the [Q] to eject the CD. Take it out from the ejected position. “EJECT” appears in the display.

  • Page 19: Selecting A Track

    2. To select a track, press the [x] or [v] button. Top function The top function resets the CD player to the first track of the disc. Press the [BND] button to play the first track (track No. 1) on the disc.
  • Page 20 This function allows you to play the current track repeatedly. 1. Press the [RPT] button to perform repeat play. “TRK RPT” appears in the display. DXZ275MP/DXZ375MP Folder repeat play This function allows you to play a track currently being played in the MP3/WMA folder repeatedly.

  • Page 21: Operations Common To Each Mode

    Then press and hold the button for 2 seconds or longer to store the message and the message return to default setting. “ON” “OFF” ] button. Numbers Symbols ] button for 2 [BND ] button for 1 DXZ275MP/DXZ375MP...
  • Page 22 • LEFT: Telephone calls can be heard on the front left speaker connected to this unit. DXZ275MP/DXZ375MP Cellular phone interrupt setting If you connect this unit and your cellular phone with a separately sold cable, you can listen to your telephone calls on your car speakers.

  • Page 23: Entering Titles

    The factory default setting is “MID”. 1. Press and hold the [DISP] button for 1 second or longer. 2. Select “AUX SENS”. 3. Press the [w] or [z] button to select “LOW”, “MID” or “HIGH”. Symbols ] button. ] button for 2 seconds DXZ275MP/DXZ375MP...

  • Page 24: Operations Of Accessories

    CD mode: Track selection: [x], [v] Fast-forward/fast-backward: [x], [v] Pause: [ See “CD/MP3/WMA Operations” (page 15-18) for details. DXZ275MP/DXZ375MP Other various play functions (in Play mode) Notes: • These functions are not supported when in the iPod menu mode.
  • Page 25 This unit supports the display of title information transmitted from a connected iPod. • Character code information is UTF-8; displayable characters include English alphanumerics, some symbols, and some umlaut characters. • Unsupported characters will be replaced by asterisks (*). DXZ275MP/DXZ375MP...

  • Page 26: Satellite Radio Operations

    XM: “– – – CH”, SIRIUS: “INVLD CH” • A channel not covered by your contract: XM: “UPDATING”, SIRIUS: “CALL 888” “539-SIRI” (alternated) DXZ275MP/DXZ375MP Confirming your SIRIUS ID 1. Press and hold the [D] button for 1 second or longer to display the ADJUST item.

  • Page 27: Preset Memory

    1. Press and hold the [BND] button for 1 second or longer to select the channel mode. 2. Press and hold the [ ] button for 1 second or longer to select the preset scan mode. And start the preset scanning. DXZ275MP/DXZ375MP...

  • Page 28: Cd Changer Operations

    • If a CD-text CD is not input its disc title or a track title, “NO TITLE” appears in the display. DXZ275MP/DXZ375MP Procedure to scroll a title Set “SCROLL” to “ON” or “OFF”. (The factory default setting is “ON”. Refer to the subsection “Setting the method for title scroll”...

  • Page 29: Dvd Changer Operations

    3. Press the [w] or [z] button to set to “ON” or “OFF”. • ON: Sets the diver setting to ON. • OFF: Sets the diver setting to OFF. 4. Press the [D] button to return to the previous mode. DXZ275MP/DXZ375MP...

  • Page 30: In Case Of Difficulty

    Wrong filename File system is not correct. DXZ275MP/DXZ375MP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase.

  • Page 31: Error Displays

    Retry or replace with a non-scratched, non-warped- disc. Eject the disc then reload it properly. Set the correct Parental level. Eject the disc and replace correct region code disc. Disconnect the iPod, then connect it again. Please connect the iPod. Measure DXZ275MP/DXZ375MP...

  • Page 32: Specifications

    Bass Control Action (100 Hz): +14 dB, –14 dB Treble Control Action (10 kHz): +14 dB, –14 dB Line Output Level (CD 1 kHz): DXZ375MP: 3.6 V DXZ275MP: 1.8 V Note: • Specifications and design are subject to change without notice for further improvement. DXZ275MP/DXZ375MP...
  • Page 33 Clarion Co., Ltd. PE-2908B PE-2907B All Rights Reserved. Copyright © 2006: Clarion Co., Ltd. 2006/12 280-8450-00 Printed in China / Imprimé en Chine / Impreso en China...
