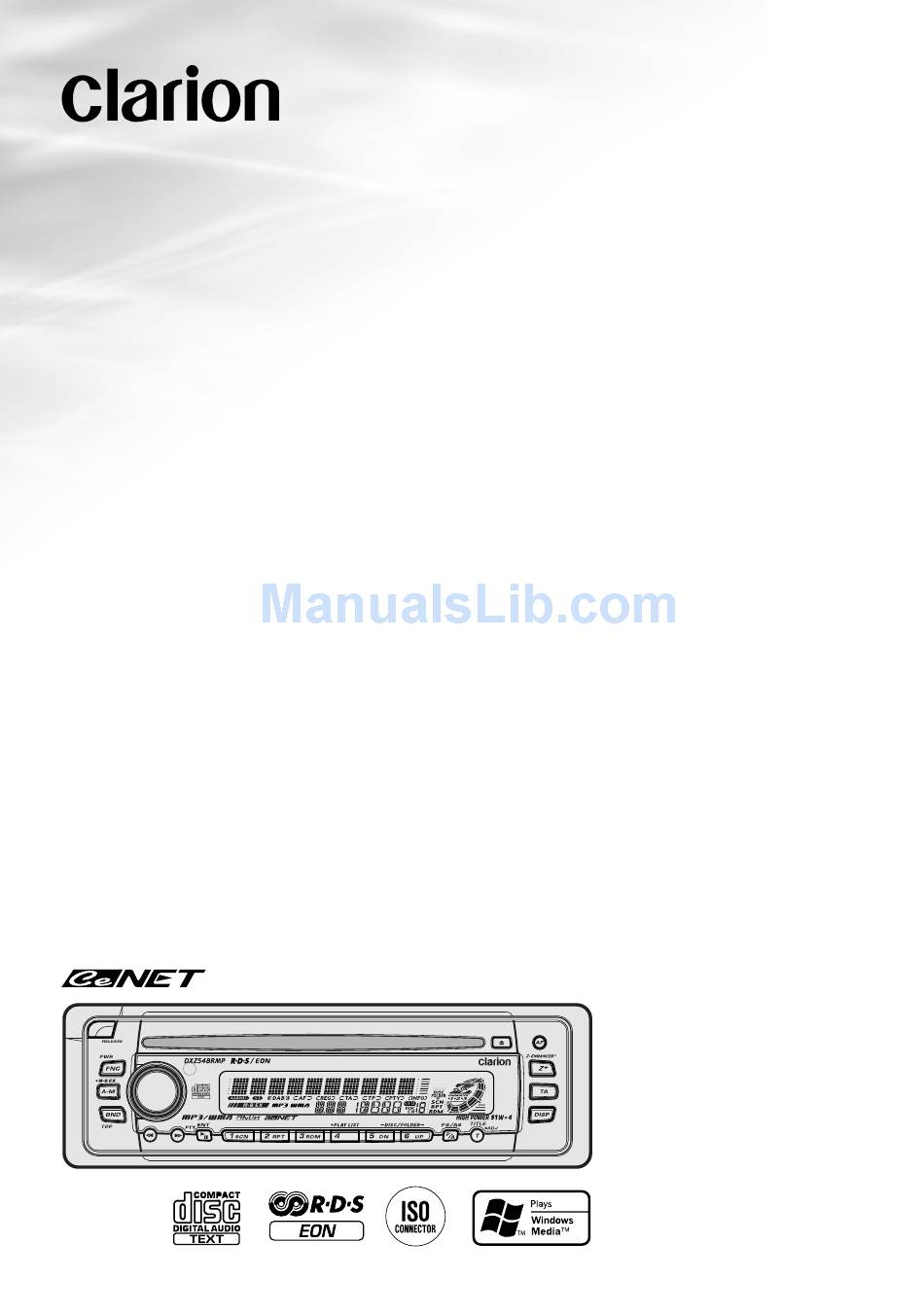

  • Page 1 Mode d’emploi Bedienungsanleitung / Istruzioni per l’uso Gebruiksaanwijzing / Manual de instrucciones Bruksanvisning / Manual de instruções DXZ548RMP RDS-EON FM / MW / LW RADIO CD / MP3 / WMA COMBINATION • COMBINE RADIO FM/PO/GO RDS-EON-LECTEUR DE CD/ MP3/WMA •...
  • Page 2 Thank you for purchasing this Clarion product. ∗ Please read this owner’s manual in its entirety before operating this equipment. ∗ After reading this manual, be sure to keep it in a handy place (e.g., glove compartment). ∗ Check the contents of the enclosed warranty card and keep it carefully with this manual.

  • Page 3: Table Of Contents

    LCD Screen In extreme cold, the screen movement may slow down and the screen may darken, but this is normal. The screen will recover when it returns to normal temperature. DXZ548RMP Contents 1. PRECAUTIONS ... 3 Handling Compact Discs ... 4 2.

  • Page 4: Controls

    Observera: Vik ut denna sida för att kunna se figurerna över bilstereons framsida medan du läser de olika kapitlen. Nota: Certifique-se de abrir esta página e consulte os diagramas frontais conforme realiza a leitura de cada capítulo. DXZ548RMP 3. NOMENCLATURE Note: •...

  • Page 5: Dcp

    Be careful not to damage it by press- ing on it with fingernails, screwdrivers, etc. DCP Rear Panel Main Unit Front connector Note: • If the DCP is dirty, wipe off the dirt with a soft, dry cloth only. DXZ548RMP Main unit connector...

  • Page 6: Remote Control (Optional)

    • Do not short-circuit, disassemble or heat batteries. • Do not dispose of batteries into fire or flames. • Dispose of spent batteries properly. DXZ548RMP Receiver for remote control unit Operating range: 30˚ in all directions Signal transmitter...

  • Page 7: Functions Of Remote Control Unit Buttons

    MP3/WMA mode. Switches reception band. Moves preset channels up and down. No function. Preset scan. When pressed and held for 2 seconds or longer: Auto store. No function. Switches between TV and VTR. DXZ548RMP...

  • Page 8: Adjusting The Volume

    ➜ TV mode ➜ Radio mode... ∗ External equipment not connected with CeNET is not displayed. DXZ548RMP Note:Be sure to read this chapter referring to the front diagrams of chapter “2. CONTROLS” on page 5 (unfold). Adjusting the volume Turning the [ROTARY] knob clockwise increases the volume;...
  • Page 9 [A-M] button several times until the function mode is reached. Basic Operations GAIN 0 ”. Å Å Å Å Î Î Î Î Å Î ”. Î Î Î Î Î FREQ12k ”. Å Å Å Å Å Î Î Î Î Î DXZ548RMP...

  • Page 10: Listening To The Radio

    • CT data is not transmitted in some countries and by some broadcast stations. Also, in some areas, the CT may not display accurately. DXZ548RMP Radio Operations Listening to the radio 1. Press the [FNC] button and select the radio mode.
  • Page 11 2. When a desired station is tuned in, press the [P/A] button again to continue receiving that station. Note: • Be careful not to press and hold the [P/A] button for 2 seconds or longer, otherwise the auto store function is engaged and the unit starts storing stations. DXZ548RMP...

  • Page 12: Rds Operations

    ∗ This function only operates when the DAH923, DAH913 DAB unit, sold separately, is connected. ∗ This factory default setting is “ON”. DXZ548RMP 1. Press and hold the [T] button for 1 second or longer to switch to the adjustment selection display.

  • Page 13: Selecting Pty

    [a] button, it seeks moving down the frequencies. ∗ If no station with the selected PTY broadcast can be received, the unit returns to the previ- ous mode. DXZ548RMP ] button for 1...
  • Page 14 Landes M Oldies Oldies Folk M Folklore Document Feature DXZ548RMP 3. If you press and hold any one of the [DIRECT] buttons for 2 seconds or longer, the selected PTY is stored into that preset channel memory. PTY item SVENSKA...

  • Page 15: Precautions

    1. Always add a file extension “.MP3” or “.WMA” to MP3 or WMA file by using single byte let- ters. If you add a file extension other than specified or forget to add the file extension , the file cannot be played. DXZ548RMP...
  • Page 16 ● Display when CD type track is selected: ● Display when MP3/WMA type track is se- lected: DXZ548RMP 1. Types of recording that can be played are as follows. Setting Set to CD...

  • Page 17: Pausing Play

    Press and hold the [a] button for 1 second or longer. ∗ For MP3/WMA discs, it takes some time until the start of searching and between tracks. In addition, the playing time may have a margin of error. CD/MP3/WMA Operations DXZ548RMP...

  • Page 18: Repeat Play

    (track No. 1) on the disc. ∗ In case of MP3/WMA, the first track of a folder be- ing played will be returned. DXZ548RMP Scan play This function allows you to locate and play the first 10 seconds of all the tracks recorded on a disc.

  • Page 19: Random Play

    5 lists are recognized in the order in which they are written. • When writing to a CD-R/RW, etc., turn off the Disc At Once function. • When adding a play list, it is recommended to write it in the “Root” folder. DXZ548RMP...

  • Page 20: Message Display

    Capital letters ➜ Small letters ➜ Numbers/ Symbols ➜ Umlaut ➜ Capital letters… 6. Turning the [ROTARY] knob to select the desired character. DXZ548RMP 7. Repeat step 4 to 6 to enter up to 30 characters for message. 8. Press and hold the [...

  • Page 21: Dimmer Control

    ∗ When listening to your calls on your car speakers, you can adjust the volume by turn- ing the [ROTARY] knob. ● T-SW MUTE: The sound from this unit is muted during telephone calls. 4. Press the [T] button to return to the previous mode. DXZ548RMP...
  • Page 22 ] button for 2 sec- onds or longer to store the title into memory and cancel title input mode. DXZ548RMP Clearing titles 1. Select and play a CD in the CD changer or tune in to a TV station for which you want to clear the title.

  • Page 23: Operations Of Accessories

    2. Press the [a] button twice to move to the beginning of the previous track. Fast-forward/fast-backward ●Fast-forward Press and hold the [d] button for 1 second or longer. ●Fast-backward Press and hold the [a] button for 1 second or longer. DXZ548RMP...
  • Page 24 2. To cancel disc repeat play, press the [RPT] button again. “DISC” and “RPT” go off from the display and normal play resumes on the current track. DXZ548RMP Random play Random play selects and plays individual tracks on the disc in no particular order. This function continues automatically until it is cancelled.

  • Page 25: Watching A Video

    If there are not 6 stations with good reception, stations previously stored in memory remain and only the strong stations are stored into memory. 1. Press the [BND] button and select the de- sired TV band (TV1 or TV2). DXZ548RMP...

  • Page 26: Digital Radio / Dab Operations

    Sets the diver setting to OFF. ● DIVER ON: Sets the diver setting to ON. 4. Press the [T] button to return to the previous mode. DXZ548RMP Digital Radio / DAB Operations DAB control function When a CeNET cable is used to connect a DAB (DAH913 or DAH923) (sold separately), all func- tions can be operated.

  • Page 27: Programme Scan

    DAB or RDS broadcast station being received has traffic announcement programmes. ∗ For details on “TA”, refer to the section “RDS op- eration” of each owner’s manual. ●Setting the TA standby mode ●Cancelling the TA standby mode ●Searching for a TP station DXZ548RMP...
  • Page 28 Area weather flash Event Event announcement Special Special event DXZ548RMP 1. Perform the following operation depending on the connected model. Press and hold the [T] button for 1 second or longer. 2. Press the [a] or [d] button to select “INFO ”, then press the [...

  • Page 29: Digital Radio/Dab Operations

    (0 to 33). ∗ When the TA, INFO, ALARM or PTY interrupt ends, the volume returns to the level it had before the in- terrupt. Digital Radio / DAB Operations DXZ548RMP...

  • Page 30: In Case Of Difficulty

    Noise is generated or noise is mixed with sound. DXZ548RMP Cause Replace with a fuse of the same amperage. If the fuse blows again, consult your store of purchase. Consult your store of purchase. 1. Turn the unit off.
  • Page 31 Measure Let dry for about 1 hour with the power on. Use ISO9660 level 1, 2 or JOLIET or Romeo file system. Use alphanumeric/ASCII characters for MP3/WMA file name. Use “.M3U” for the file extension of a play list. DXZ548RMP...

  • Page 32: Error Displays

    If an error display other than the ones described above appears, press the reset button. If the problem persists, turn off the power and consult your store of purchase. DXZ548RMP Cause This is a failure of CD deck’s mechanism and consult your store of purchase.

  • Page 33: Specifications

    Power Consumption: Less than 15 A Speaker Impedance: 4 Ω (4 to 8 Ω allowable) Auto Antenna Rated Current: 500 mA or less Weight: Main unit: 1.3 kg Dimensions: Main unit : 178 (W) ✕ 50 (H) ✕ 155 (D) mm DXZ548RMP...
  • Page 34 DXZ548RMP...
