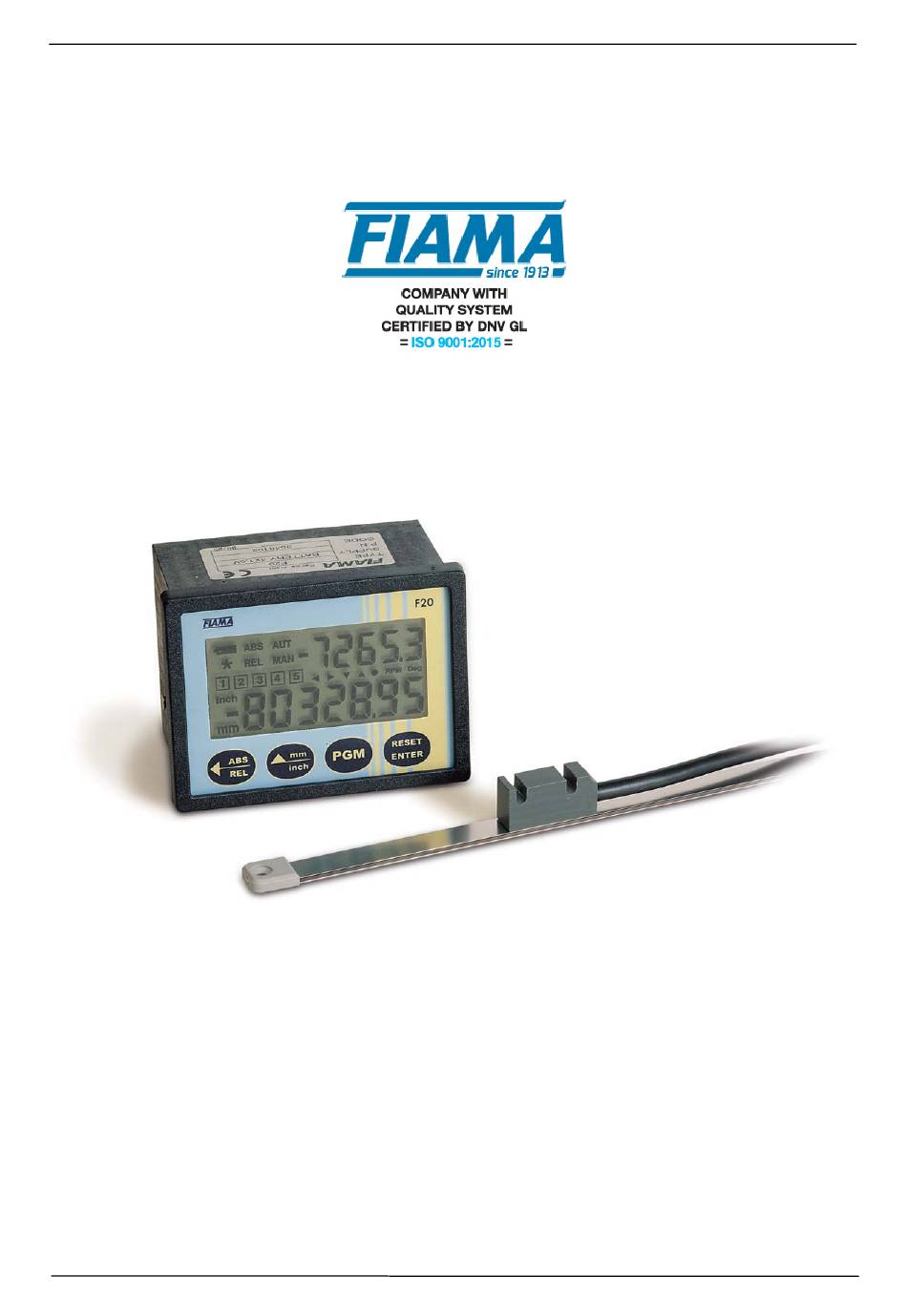

- Page 1 Display for magnetic band USER’S MANUAL AND MAINTENANCE DISPLAY FOR MAGNETIC BAND WITH INTERNAL BATTERY POWER SUPPLY TYPE “F20-“ Data: 13/01/16 file: F20_ing.doc pag 1/8...
-
Page 2: Environmental Conditions
Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre . Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year. -
Page 3: Installation

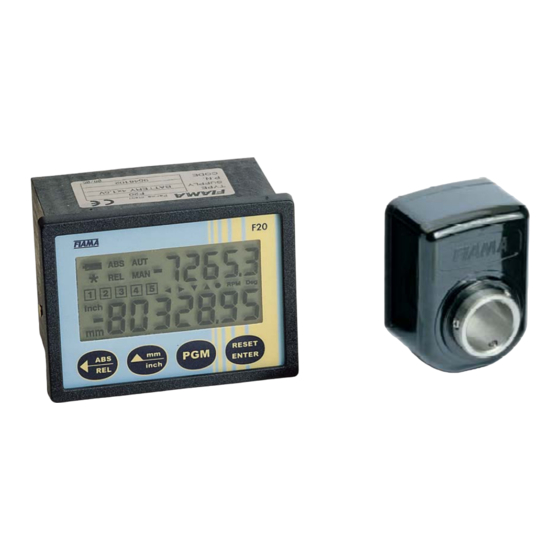

Description F20 is a dimension-display with integrated position sensor to be combined to the magnetic band P25, in order to carry out a complete device for measuring linear or angular shiftings. -
Page 4: Sensor Mounting
Display for magnetic band Sensor mounting The sensor has be mounted according to the following draw, and keeping the indicated tolerances. For the optimal system functioning its is necessary that the distance between the sensor and the magnetic band is not over 1mm of the useful stroke. ±3°... - Page 5 Display for magnetic band Count direction Set out the count direction of the display, range allowed 0 or 1. Factory default 0. Setting 0, the value on the display increases moving the sensor to the right (sensor as per draw on page 1). Setting 1, the value on the display increases moving the sensor to the left.
- Page 6 Display for magnetic band Origin displacement This parameter is added or subtracted from the current quota to correct the value showed on the display, for example following wear or changing of tool. Setting a positive value on display appears the current quota added to this value.
- Page 7 Display for magnetic band Meaning of the symbols on the display DISPLAY FOR RELATIVE QUOTE DISPLAY FOR ABSOLUTE QUOTE 1. Indicator of flat battery: begins to blink when the level of loading goes under a certain value and when it keeps switched on its necessary to change the batteries within 1 month.
-
Page 8: Overall Dimensions
Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
