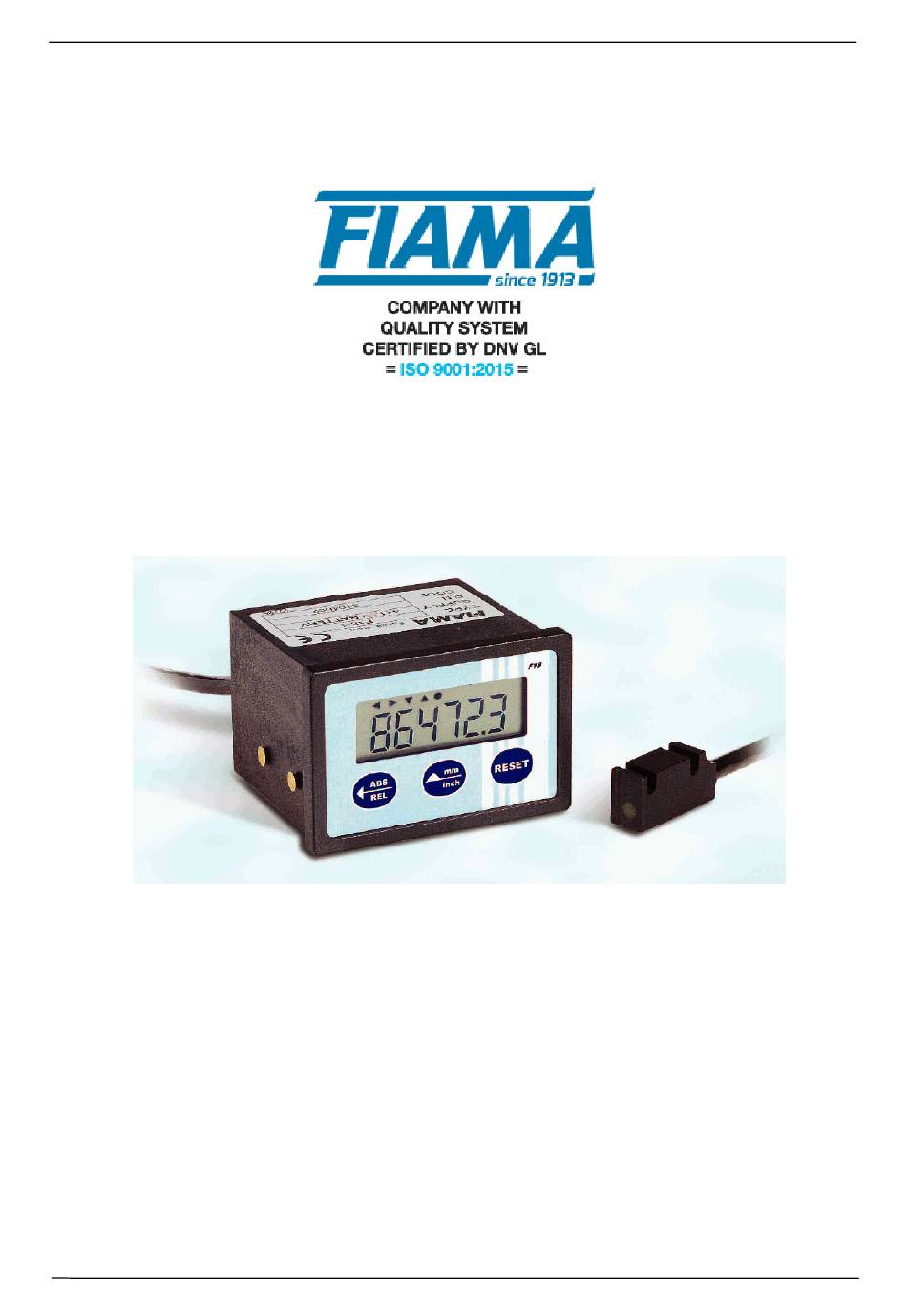

- Page 1 F18-K Display for magnetic band USER AND MAINTENANCE MANUAL “F18-K“ DISPLAY FOR MAGNETIC BAND WITH INTERNAL BATTERY POWER SUPPLY Date: 13/01/16 File: F18_K ing.doc...
-
Page 2: Environmental Conditions
Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance center . Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year. -
Page 3: Installation
F18-K Display for magnetic band Installation Before installing the instrument, read the following warnings: a) Connect the instrument strictly following the instructions of the manual. b) It is the responsibility of the user to check, before using, the correct settings of the parameters of the instrument to avoid damage to persons or things. - Page 4 F18-K Display for magnetic band Sensor mounting The sensor has be mounted according to the following draw, and keeping the indicated tolerances. For the optimal system functioning its is necessary that the distance between the sensor and the magnetic band is not over 1mm of the useful stroke.
- Page 5 F18-K Display for magnetic band Count direction Set out the count direction of the display, range allowed 0 or 1. Setting 0, the value on the display increases moving the sensor to the right (sensor as per draw on page 1).
- Page 6 F18-K Display for magnetic band Adjusting of quota After the assembling of instrument on the machine and setting of all parameters, to visualize on the display the correct measure it is necessary to carry out the reset or preset of quota. Position the sensor in a point in which is known exactly the correct measure that has to be visualized (ex.
- Page 7 F18-K Display for magnetic band Dimensions Connection scheme for versions with connector BROWN WITHE YELLOW GREEN SHIELD View of the male connector on the back of the instrument. Note: the connection of the shield is always necessary. Date: 13/01/16 File: F18_K ing.doc...
- Page 8 Tel. (+39) 0521-672341 - Fax. (+39) 0521-672537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
