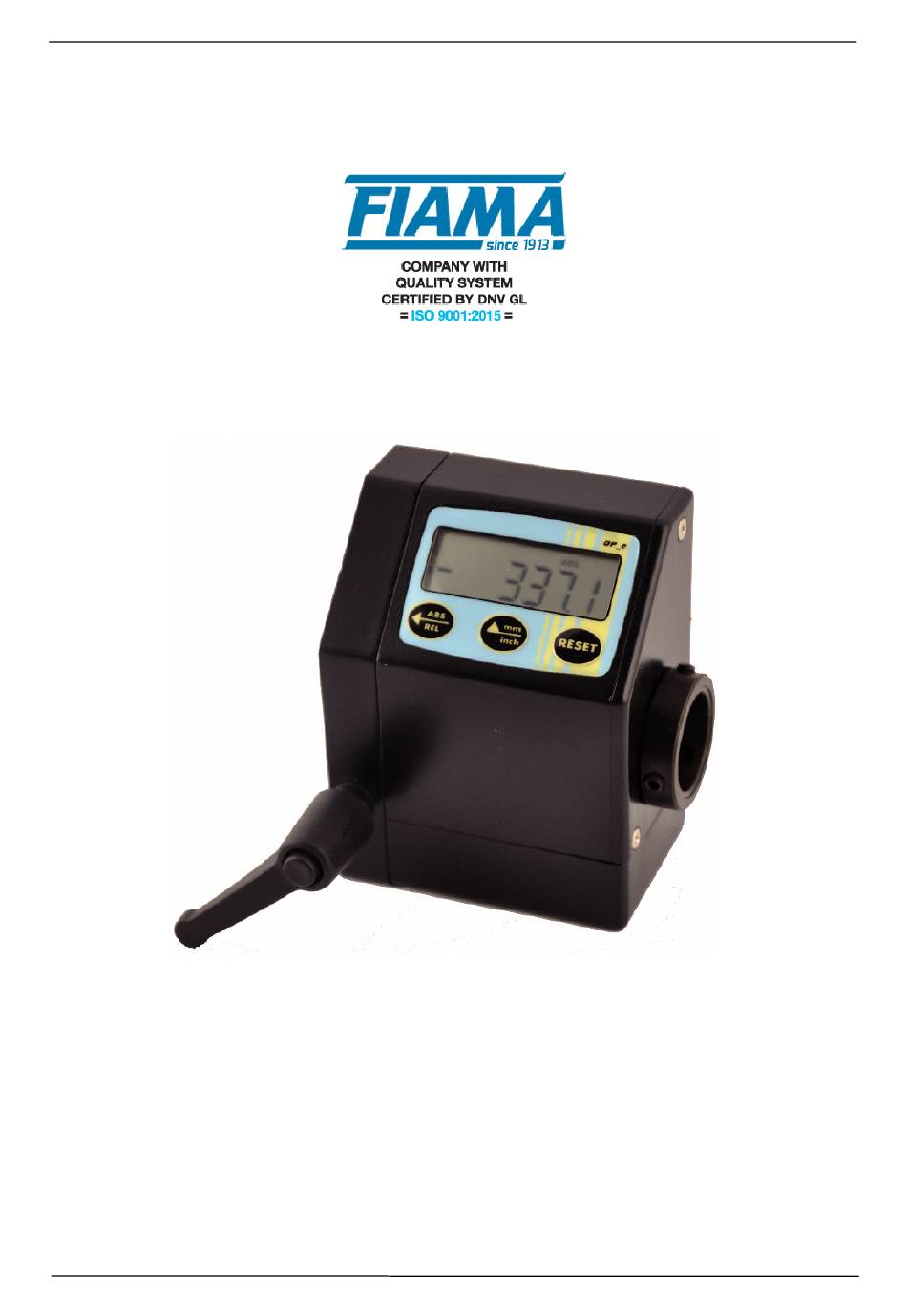

- Page 1 EP25L Hollow shaft display USER’S MANUAL AND MAINTENANCE ELECTRONIC HOLLOW SHAFT DISPLAY BATTERY SUPPLIED TYPE “EP25L“ Date: 13/01/16 file: EP25L_ing.doc pag 1/6...
- Page 2 Do not use hydrocarbon solvents (petrol, diluants, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre . Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year.

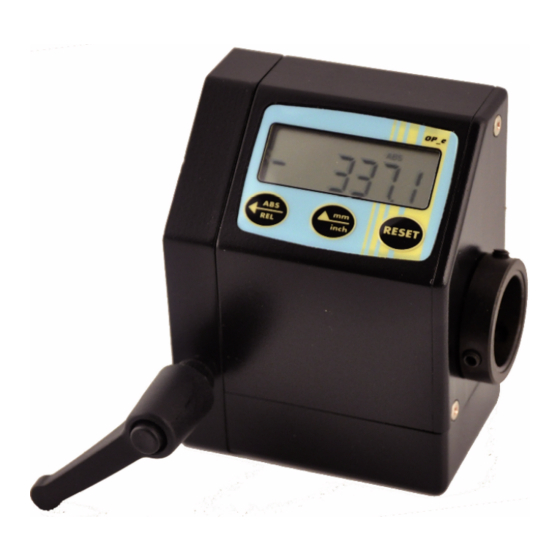

- Page 3 Description The electronic position indicator EP25L, with inner battery supply, includes in the same case a position transducer and a display unit setting up a device for measuring linear or angular shifting, compact, easy assembling, applicable in several type of industry (packaging, woodworking, aluminium, sheet metal, etc.)
- Page 4 EP25L Hollow shaft display Count direction Set out the count direction of the display, range allowed 0 or 1. Setting 0 the value on the display increases, turning the hollow shaft clockwise. Setting 1 the value on the display decreases, turning the hollow shaft clockwise.
- Page 5 EP25L Hollow shaft display Adjusting of quota After the assembling of instrument on the machine and setting of all parameters, to visualize on the display the correct measure it is necessary to carry out the reset or preset of quota. Position the shaft in a point in which is known exactly the correct measure that has to be visualized (ex.
- Page 6 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
