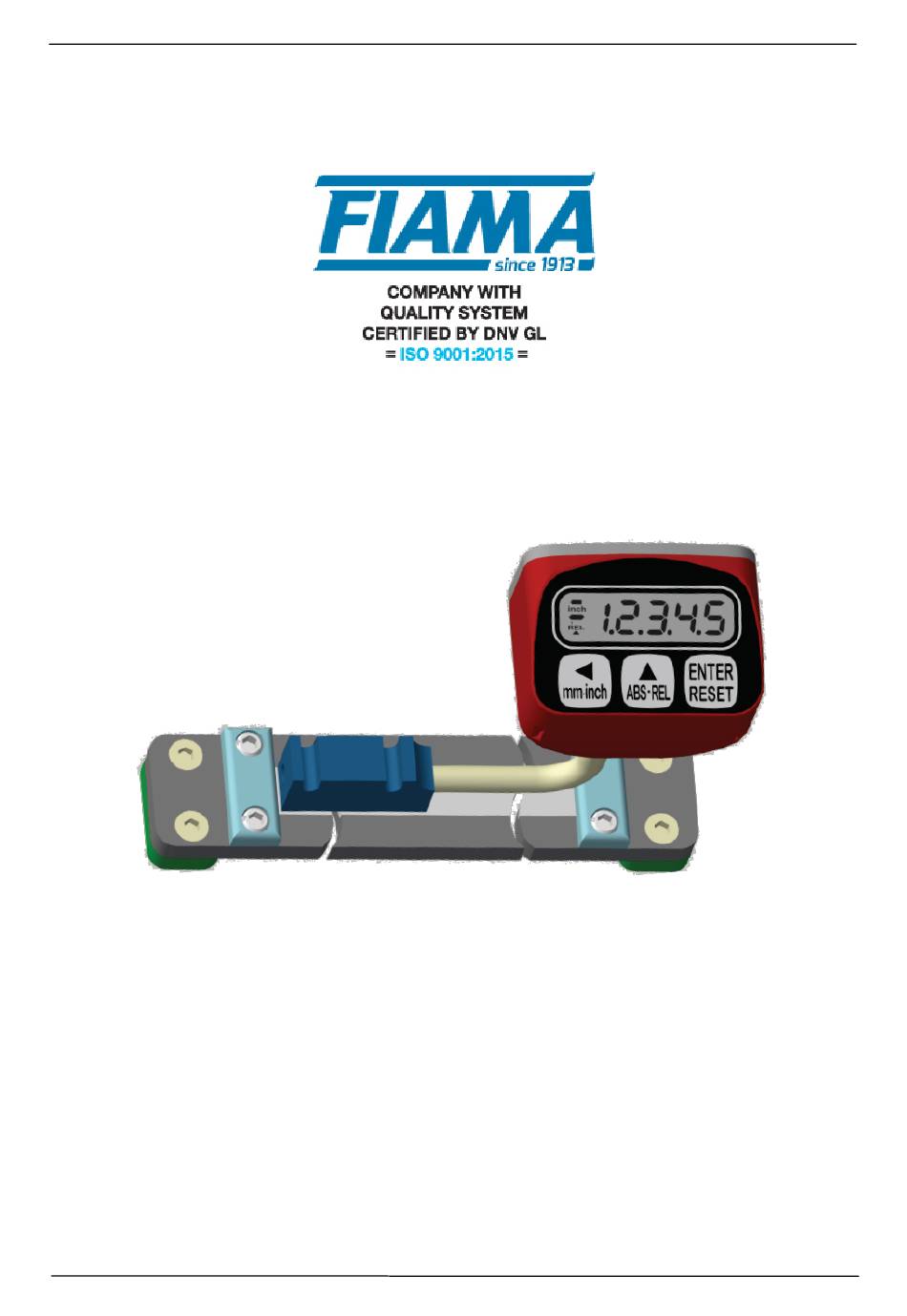

- Page 1 Display for magnetic band USER’S MANUAL AND MAINTENANCE DISPLAY FOR MAGNETIC BAND WITH BATTERY POWER SUPPLY TYPE “F7-“ Data: 13/01/16 F7_ing.doc pag 1/12...
- Page 2 Do not use hydrocarbon solvents (petrol, diluents, etc.): the using of these products could affect the proper functioning of the instrument. Reparations should be done only and exclusively at the FIAMA technical assistance centre. Calibrations and tests It is advisable to calibrate the instrument periodically, once every working year.
-
Page 3: Installation
The electronics are protected by a plastic housing which is robust, shock-resistant, and self- extinguishing. Two versions of the F7 are available: • F7-E with external sensor • F7-I with integrated sensor The display can be fixed quickly and easily using the two threaded holes on the back of the housing or alternatively with the SM bracket support or the SF flanged support which can be supplied optionally. - Page 4 Display for magnetic band This parameter together with the following allows the programming of the value on the display for a certain displacement of the sensor. It means that is necessary to set the value which has to be displayed corresponding to a displacement of the sensor on the magnetic band of 10mm. The Factory value is =10.0, which is the necessary value to read the displacement in VISUAL...
-
Page 5: Battery Replacement
Display for magnetic band pressing 2 times it is possible to set the nominal value for tool 0 (for example the ENTER RESET radius of cutter 0), which is then confirmed by pressing ENTER RESET will appear which is the nominal value for tool 1 (for example the radius of cutter 1): set the correct value and confirm with ENTER RESET... -
Page 6: Display Icons
Display for magnetic band Removing the battery from the instrument switches it off after a few seconds: at this point do not move the sensor to avoid losing the correct displayed value. As soon as the battery is fitted, the instrument switches on with the same value on the display which was present at the moment when it was switched off. -
Page 7: Sensor Mounting
Display for magnetic band Sensor mounting The sensor has be mounted according to the following draw, and keeping the indicated tolerances. For the optimal system functioning its is necessary that the distance between the sensor and the magnetic band is not over 1mm of the useful stroke. ±3°... - Page 8 Display for magnetic band F7-E AM20 Data: 13/01/16 F7_ing.doc pag 8/12...
- Page 9 Display for magnetic band F7-I AM20 Data: 13/01/16 F7_ing.doc pag 9/12...
- Page 10 Display for magnetic band Data: 13/01/16 F7_ing.doc pag 10/12...
- Page 11 Display for magnetic band Data: 13/01/16 F7_ing.doc pag 11/12...
- Page 12 Tel. (+39) 0521.672.341 - Fax. (+39) 0521.672.537 – e-mail: info@fiama.it - www.fiama.it FIAMA srl is not responsible for any damage to persons or things caused by tampering and wrong use and in any case that are not consistent with the features of the instrument.
