- Page 1 PT-PTC-D-BT Ethernet Adaptor Fast Installation Manual WWW.PROCETPOE.COM Data Code:PTD2206002...
- Page 2 Statement Copyright ©2022 Creative Lianjie Network Technology Co., Ltd. Copy right, all rights reserved. The contents of this manual cannot be copied, plagiarised, or translated by any company or individual without the express written permission of Creative Lianjie Network Technology Co., Ltd.

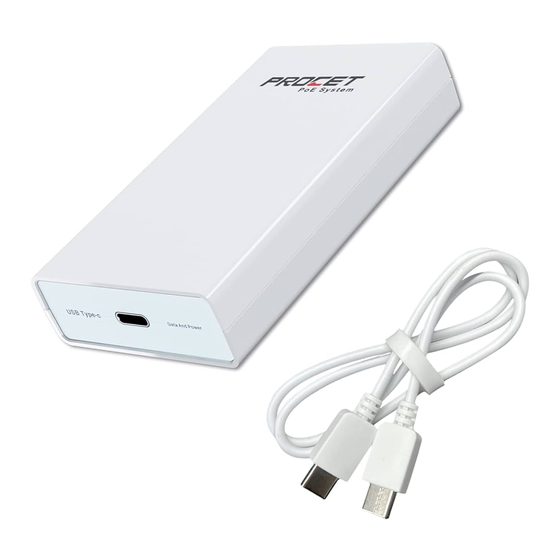

- Page 3 Product Pro le PT-PTC-D-BT is a network power adapter designed based on the IEEE802 .3at standard. The output is a standard Type-C in terface, which can provide 5V/3A 9V/3A 12V/3A 15V/3A 20V/3A power supply and 100Mbps Internet data transmission. PT-PTC-D-BT is designed with a small...
- Page 4 Product Working Diagram 1. RJ45 Port Power Supply LED Indicator (Yellow) P o E I N Light On: Normal power supply Power Link/Act Light O : Abnormal power supply 2. Type-C Port Data Transmission LED Indicator (Green) Light On: Normal connection Blinking: Data transfer Light O : Abnormal connection 3.
- Page 5 Product Working Diagram Input 44-57V DC Input PoE Compliance IEEE802.3 bt Pin Assignment 4/5(+),7/8(-) Or3/6(+),1/2(-) Or 3/6(-),1/2(+) Output 5V 3A 9V 3A 12V 3A 15V 3A 20V 3A Output Data Speed 100Mbps -20℃ To 40℃ Operating Temperature 20%-80%，No Condensation Operating Humidity Work Operating Altitude Below2000m...
- Page 6 Product Working Diagram Light On: Normal connection Light O : Not connected or failed to connect Green Blinking: Data transfer Light On: Normal power supply Yellow Light O : Abnormal power supply FCC CFR47 Part 15 EN 55032-2015 EN 55035-2017 —5—...
-
Page 7: Product Dimensions
Product Dimensions 60MM 22MM Pic3-1 Product Dimensions —6—... -
Page 8: Product Use
Product Use Pic5-1 Product Connection Diagram Notice: 1. Connect the PoE network cable to the RJ45 port of this Power Adaptor, use a CAT5 or above network cable, and the length should be less than 100m. 2. Connect one end of the Type-C cable to the output port of this product, and the other end to the powered device (Such as a mobile phone, tablet computer, etc.) 3. - Page 9 Declaration of Toxic and Hazardous Substances 《Measures for the Administration of the Restricted Use of the Hazardous Substances Item Contained inElectrical and Electronic Products 》Restricted Substances or Elements Cr VI PBDE ○ ○ ○ ○ ○ × Metal Parts ○ ○...
- Page 10 This product should not be discarded randomly after the expiration date or after maintenance. Please hand it over to a company quali ed for the disposal of waste electronic products. Please refer to the national or local regulations on the disposal of WEEE for the correct method. Product Quality Certi cate Qualification Card PASS...
