- Page 1 PT-PTC-A-AF Ethernet Adaptor Fast Installation Manual WWW.PROCETPOE.COM Data Code:PTD2206002...
- Page 2 Statement Copyright ©2022 Creative Lianjie Network Technology Co., Ltd. Copy right, all rights reserved. The contents of this manual cannot be copied, plagiarised, or translated by any company or individual without the express written permission of Creative Lianjie Network Technology Co., Ltd.
-
Page 3: Product Profile

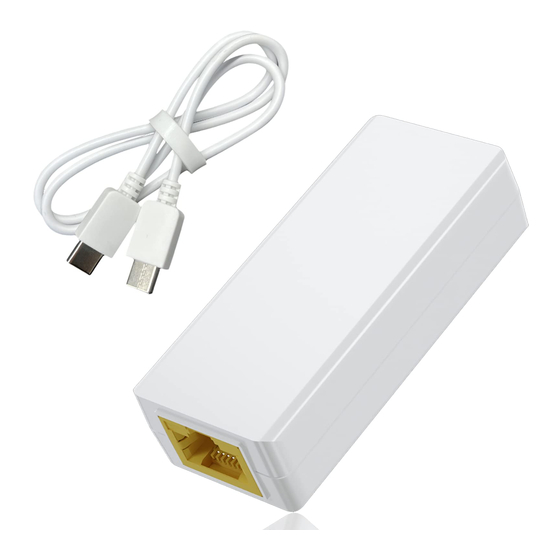

Product Profile PT-PTC-A-AF is a network power adapter designed based on the IEEE802 .3af standard. The output is a standard Type-C in terface, which can provide 5V/2A power supply. PT-PTC-A-AF is designed with a small volume of a white plastic case, which is convenient since it can be carried around on the desktop or can be fixed and opened... - Page 4 Product Working Diagram 1.RJ45 Port Input Power Supply LED Indicator (Yellow) Light On: Normal power supply Light Off: Abnormal power supply 2.Type-C Port Output Power Supply LED Indicator (Green) Light On: Normal connection Light Off: Abnormal connection 3.RJ45 Port 4.Type-C Port 2-1 Product Working Diagram —3—...
- Page 5 Product Working Diagram Input 44-57V DC Input PoE Compliance IEEE802.3 af Pin Assignment 4/5(+),7/8(-) Or3/6(+),1/2(-) Or 3/6(-),1/2(+) Output 5V 2.0A Output Data Speed None -20℃ To 40℃ Operating Temperature Operating Humidity 20%-80%，No Condensation Work Operating Altitude Below2000m Environment Storage Temperature -20℃-70℃...
- Page 6 Product Working Diagram Light On: Normal connection Yellow Light Off: Not connected or failed to connect Blinking: Data transfer Light On: Normal power supply Green Light Off: Abnormal power supply FCC CFR47 Part 15 EN 55032-2015 EN 55035-2017 —5—...
-
Page 7: Product Dimensions
Product Dimensions 29MM 17MM Pic3-1 Product Dimensions —6—... -
Page 8: Product Use
Product Use Pic5-1 Product Connection Diagram Notice: 1. Connect the PoE network cable to the RJ45 port of this Power Adaptor, use a CAT5 or above network cable, and the length should be less than 100m . 2. Connect one end of the Type-C cable to the output port of this product, and the other end to the powered device (Such as a mobile phone, tablet computer,etc.) 3. - Page 9 Declaration of Toxic and Hazardous Substances 《Measures for the Administration of the Restricted Use of the Hazardous Substances Contained inElectrical and Electronic Products 》 Restricted Substances or Elements Item Cr VI PBDE ○ ○ ○ ○ ○ × Metal Parts ○...
- Page 10 This product should not be discarded after the expiration date or after maintenance. Please hand it over to a company qualified for the disposal of waste electronic products. Please refer to the national or local regulations on the disposal of WEEE for the correct method. Product Quality Certificate Qualification Card PASS...
