Block Diagram; Hardware Features; Connector And Jumper Descriptions; Cc3100Modboost Block Diagram - Texas Instruments CC3100MODBOOST User Manual

www.ti.com
2.1

Block Diagram

2.2

Hardware Features

• CC3100MOD module with fully integrated solution
• 2×20 pin stackable connectors
• Power from on-board LDO, using USB or 3.3 V from MCU LaunchPad
• Three (3) push buttons
• Jumper for current measurement with provision to mount 0.1R resistor for measurement with voltmeter
• 8 Mbit serial flash (M25PX80 from Micron)
• 40-MHz crystal, 32-KHz crystal, and optional 32-KHz oscillator
• 2-layer PCB with 6-mil spacing and track width
2.3

Connector and Jumper Descriptions

2.3.1 Push Buttons and LEDs
Reference Usage
SW1 OOB Demo
SW2 RESET
SW3 nHIB
SWRU396A – December 2014 – Revised September 2015CC3100MOD SimpleLink™ Wi-Fi® Network Processor Module BoosterPack
Submit Documentation Feedback

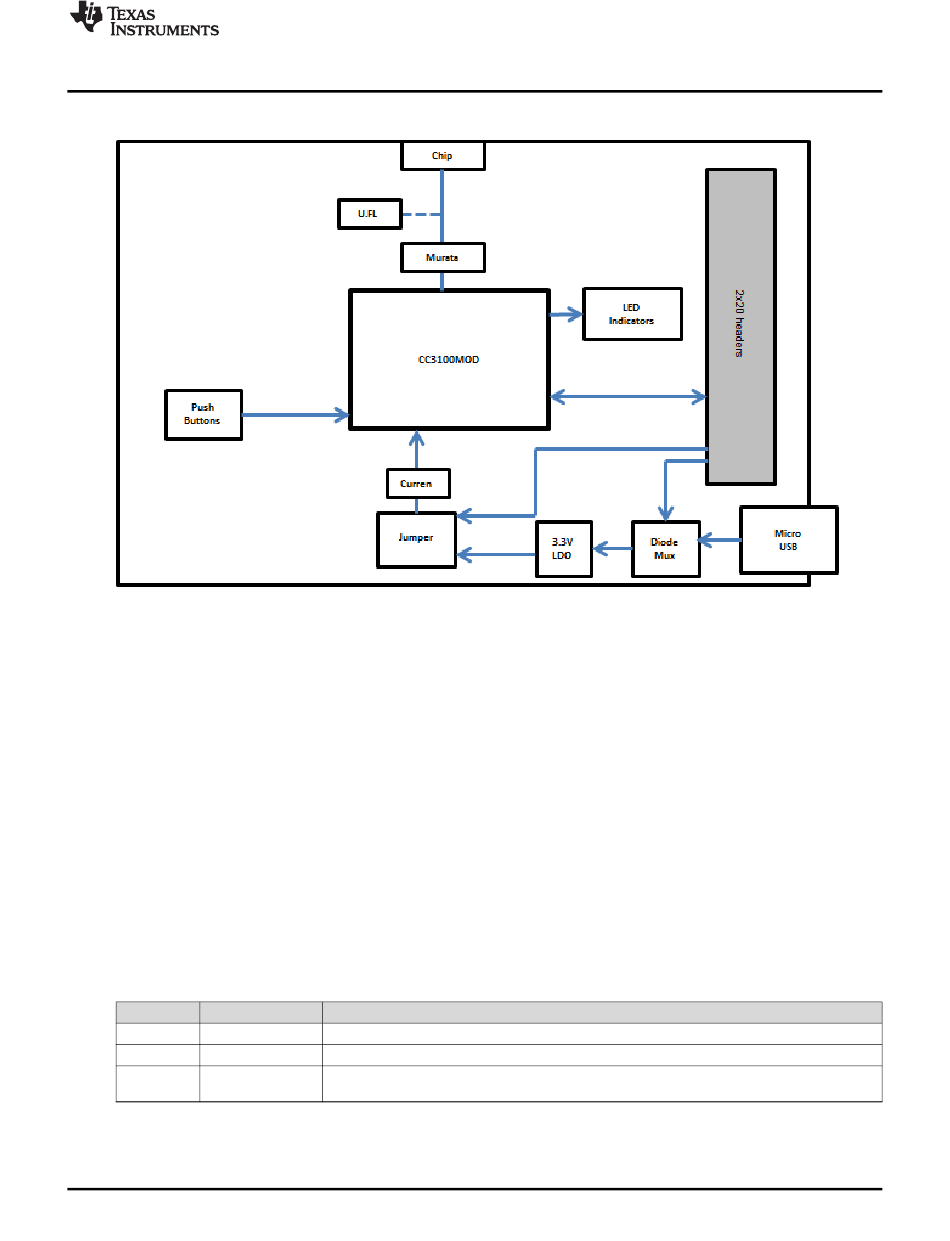

Figure 3. CC3100MODBOOST Block Diagram
Table 1. Push Buttons
Resets the device to a known state. The use of this pin is optional.
Boots the device to the bootloader mode for flashing the firmware over a universal
asynchronous receiver/transmitter (UART).
Copyright © 2014–2015, Texas Instruments Incorporated
Comments
Used as an input for the OOB demo.
Hardware Description
7
