1 Introduction
1.1 Intended Use
®
The mLabs
Smart is designed to be used with mLabs
Micropoint Biotechnologies Co., Ltd., hereinafter referred to as "Micropoint", to perform tests
in clinical laboratories by using immunofl uorescence technique.
1.2 Product Contents
®
The mLabs
Smart, shown in Figure 1-1, consists of a motherboard module, a built-in printer, a
touchscreen, a test module, a cartridge tray, an incubation track, cartridge-push components, a
power module, an IC card reading module, a barcode scanning module, and a shell.
1.3 List of Accessories
The following accessories are provided with this device:
1* Power cord
1* Calibration cartridge
1* Waste box
1* Printer paper roll
1* Pipette
For other accessories, please see the Packing List.
1.4 Technical Specifi cations
Display screen
Keyboard
I/O
Printer
Wireless(reserved)
OS
Language
Memory
Dimension
®
Test Cartridges manufactured by
®

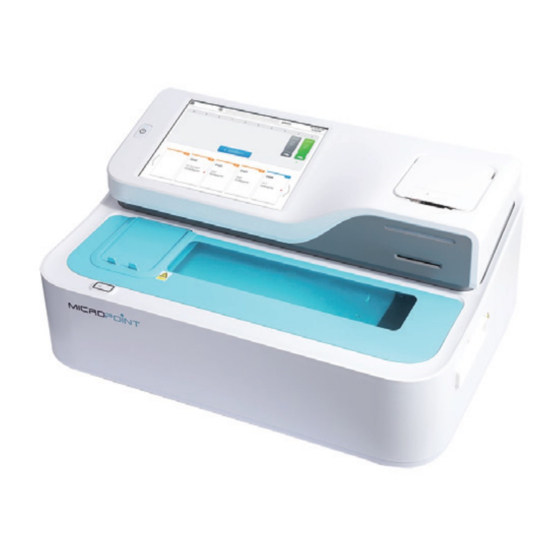

Figure1-1 mLabs
Smart
264mm(10.4 in.) LCD
Touchscreen
USB*1 Ethernet*1
Built-in 50 mm (2 in.) DIA thermal printer
WiFi
window7
English, Deutsch, Espanol, Francais, Italiano,
Portugues
4G
550*355*260 (L×W×H)
®
User's Manual of mLabs
Smart
1
