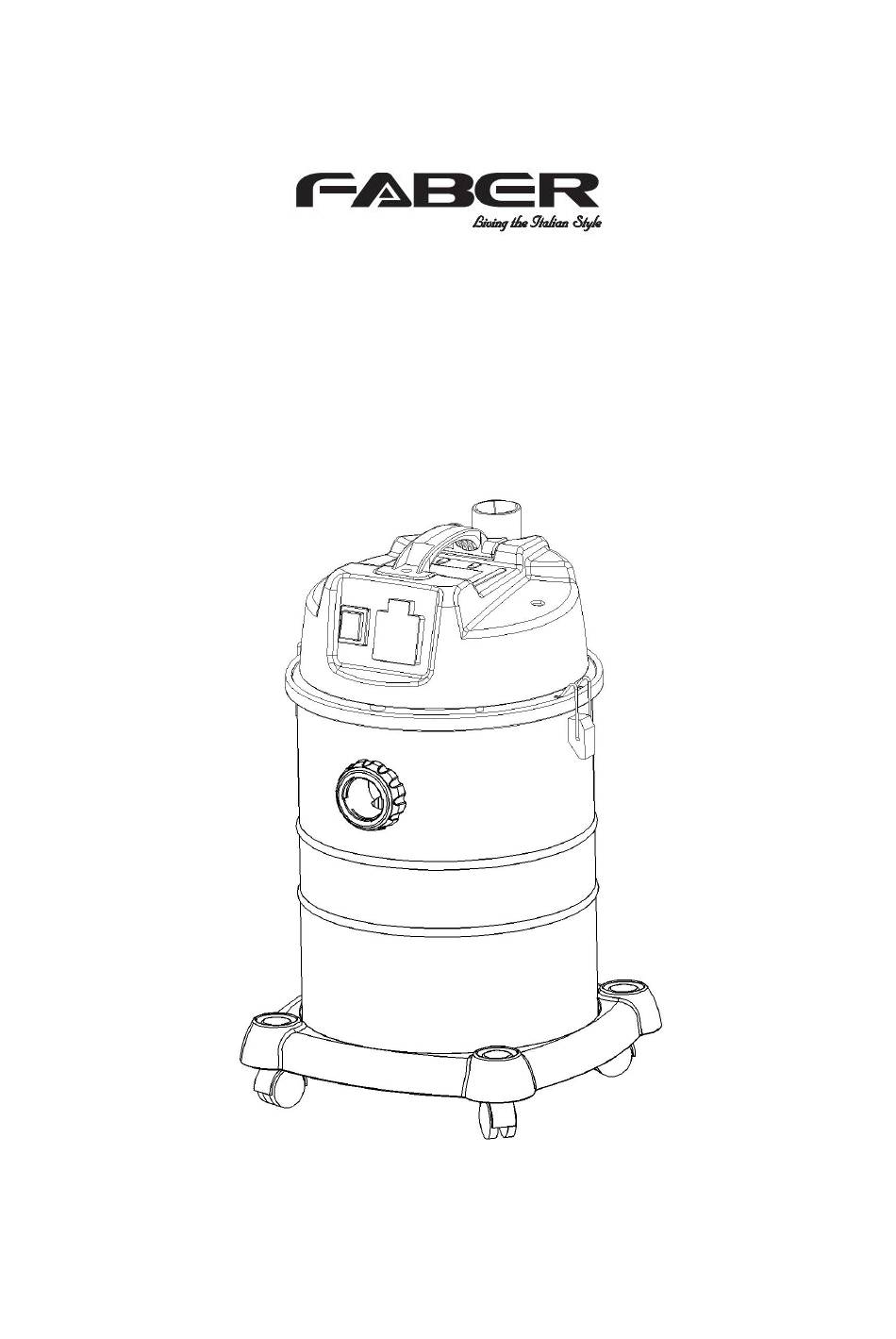

- Page 1 Operating Instructions Wet & Dry Vacuum cleaner Model: FVC-WD POWERVC 825 Capacity: 25Litres 220-240V~ 50/60Hz, 3100W Read all the sections of this booklet and follow all the instrucions carefully...
-
Page 2: Safety Instructions And Warnings
SAFETY INSTRUCTIONS & WARNINGS IMPORTANT SAFETY INSTRUCTIONS •For your safety: carefully read and understand all instructions, this appliance complies with mandatory safety regulations for electrical equipment. However, improper use will harm personal and property, please read these instructions carefully, and then open the electrical. •... -
Page 3: Technical Data
To return your used device, please use the return and collection systems or contact the retailer where the product was purchased. They can take this product for environmental safe recycling. Technical data FVC-WD POWERVC 825 240V~, 50/60Hz, 1600W,25L, Max.Load of socket outlet:1500W, Class I, IPX4 Product Parts Name... -
Page 4: Installation
Standard accessories including Installation... - Page 5 Caution： Make sure that the power cord plug and socket are de-energized when assembling the vacuum cleaner Open the vacuum cleaner you purchased 1. Make sure the power cord is disconnected from the socket（Fig1） 2. Loose Clips（Fig2） 3. Raise the nose assembly from the dust pan. (Fig 3) 4.
- Page 6 Operation of vacuuming dusts 1. Make sure the power cord is disconnected from the socket.（Fig1） 2. Loose Clips.（Fig 2） 3. Raise the Head assembly from the dust tank. (Fig 3) 4. Install the cloth filter in the battel in turn.(Fig.4) 5）...
- Page 7 Operation when dusts tank is full 1. The dust inside the dust bucket is full. (Fig 1) 2. Turn off the switch. (Fig 2) 3. Unplug the power cord. (Fig3) 4. Release the buckle. (Fig 4) 5. Raise the nose assembly from the dust container. (Fig 5) 6.
- Page 8 Operation of water cleaning 1. Make sure the power cord is disconnected from the socket.（Fig1） 2. Cover the bottom cap basket with watering absorbing sponge, make sure cover the whole basket. (Fig2) 3.Put out he cloth filter. (Fig 3) 4. Place the Head assembly on the dust bucket that has been fitted with the filter assembly and lock it with both sides of the buckle.
- Page 9 WARNING: BE SURE TO READ, UNDERSTAND, AND APPLY INFORMATION, ENTITLED ‘SAFETY INSTRUCTIONS & WARNINGS’. DO NOT VACUUM IN AREAS WITH FLAMMABLE GASES, VAPORS, OR EXPLOSIVE DUSTS IN THE AIR. FLAMMABLE GASES OR VAPORS INCLUDE BUT ARE NOT LIMITED TO; LIGHTER FLUID, SOLVENT TYPE CLEANERS, OIL-BASE PAINTS, GASOLINE, ALCOHOL OR AEROSOL SPRAYS.
-
Page 10: Filter Cleaning
Filter cleaning 1. Periodically check the cleaning filter to maintain performance. 2. If the suction very tiny dust, the filter may need more frequent cleaning. 3. Wash filter sponge with cold or warm water without the use of detergent. (Fig 1 Fig 2) 4. -
Page 11: Troubleshooting
TROUBLESHOOTING WARNING! TO REDUCE THE RISK OF ELECTRIC SHOCK-UNPLUG BEFORE TROUBLESHOOTING Symptom Possible Causes Corrective Action 1) No power supply. 1) Check power supply –cord, breakers, fuses. Vacuum will not operate 2) Faulty power cord. 2) Unplug and check the power cord. If damaged,have it repaired by a professional.
