Honda CQ-EH9160A Service Manual

Specification*
General
Power Supply
Current Consumption
Output Voltage
Output Impedance
AM Radio
Frequency Range
Usable Sensitivity
FM Stereo Radio
Frequency Range
Usable Sensitivity
Cassette Player
Reproduction System
Tape Speed
Wow and Flutter
Signal to Noise Ratio
DC 12V (11V - 16V),
Test Voltage 13.2V
Negative Ground
Less than 1.0A (at VOL. MAX)
More than 400mVrms
1.5kΩ
530 - 1,710kHz
24dB/µV (S/N 20dB)
87.75 - 107.9MHz
6dB/µV (S/N 30dB)
4-Track, 2-Program Stereo
4.76cm/sec.
Less than 0.2% (WRMS)
More than 40dB
AUTOMOTIVE ELECTRONICS
HONDA

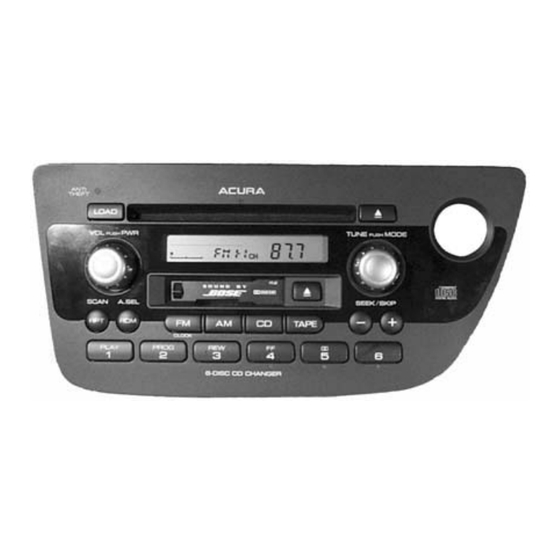

CQ-EH9160A
AM/FM MPX ELECTRONIC TUNING
RADIO with Stereo Cassette Tape
Player and 6-Disc CD Changer
PART No. : 39100-S6M-A100
ID CORD : 1TJ2
VEHICLE : ACURA RSX
DESTINATION : North America
PRODUCED AFTER : Apr., 2001
CD Player
Signal to Noise Ratio
Total Harmonic Distortion
Channel Separation
Dimensions** (W×H×D)
Weight**
* Specifications and the design are subject to possible modification
without notice due to improvements.
** Dimensions and Weight shown are approximate.
Doldy noise reduction manufactured under license from Dolby
Laboratories Licensing Corporation.
"Dolby" and the double-D symbol
Laboratories Licensing Corporation.
ORDER No.0154
More than 70dB (IHF-A)
Less than 0.4%
More than 50dB (IHF-A)
180×102×165mm
2.4kg
are trade marks of Dolby
