ASME A112.18.1/CSA B125.1
Models/Modèles/Modelos
710-HDF-DST & 711-HDF-DST
Series/Series/Seria
Write purchased model number here
Inscrivez le numéro de modèle ici
Escriba aquí el número del modelo comprado
You may need/Articles dont vous pouvez avoir besoin/Usted puede necesitar:
For easy installation of your Delta
faucet, you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care and maintenance
information.
Pour installer votre robinet Delta
facilement, vous devez :
• LIRE TOUTES les instructions avant de débuter.
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.

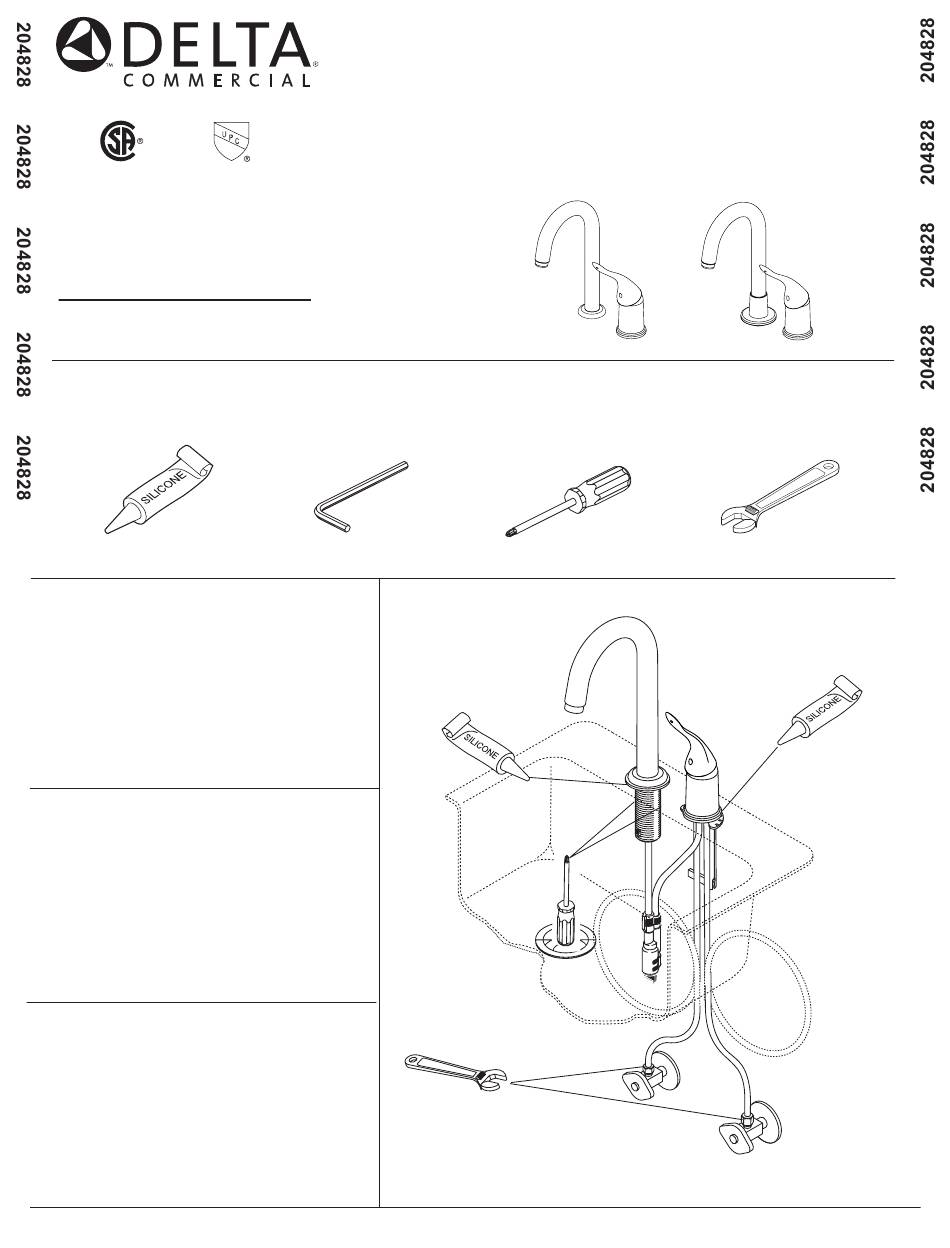

SINGLE LEVER BAR FAUCET
ROBINET DE BAR À UNE MANETTE
LLAVE MONOMANDO DE BARES
Page 1
204828 Rev. B
Advertisement
Table of Contents
Related Manuals for Delta 710-HDF-DST
Summary of Contents for Delta 710-HDF-DST
- Page 1 • LIRE TOUTES les instructions avant de débuter. • LIRE TOUS les avertissements ainsi que toutes les instructions de nettoyage et d’entretien. Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar.
- Page 2 Valve Installation Spout Installation NOTE: These faucets are designed to fit a maximum countertop thickness of 2-1/2”. Slide the gasket (1) up over tubes of valve assembly (2) and place in groove in base (3). Feed tubes down through mounting hole in sink making sure that the SHUT OFF WATER SUPPLIES.
- Page 3 Thread sleeve (1) over bonnet (2) and hand tighten. Place Slide tube end (1) into adapter (2) and secure with clip (3). Pull moderately on tube to handle (3) on stem (4) and secure with set screw (5). Install ensure connection has been made. button (6) into set screw hole.
- Page 4 Loop tubing (2) created. Delta is not responsible for tubing that Tubing is cut too short: buy a coupling union and if it is too long. Note: Recommended tubing minimum is cut too short or cut in a way that will not allow bend diameter is 8”.
- Page 5 Incorrect Installation Correct method Installation Incorrecte Bonne méthode Instalación Incorrecta Método Correcto Do not install sleeve Ensure cut is straight. upside down. N’installez pas le Assurez-vous que Custom Fit Connections - Plastic Sleeve Installation Instructions manchon à l’envers. la coupe est droite. 1.
- Page 6 Remove aerator (1) and move faucet handle (2) to the full on mixed position. Turn on hot and cold water supplies (3) and flush water lines Check all connections at arrows for leaks. Re-tighten if necessary, but for one minute. IMPORTANT: This flushes away any debris that do not overtighten.
- Page 7 Setting the Handle Limit Stop (Optional) This faucet includes an integrated handle limit stop that has two positions. scalding because it limits the amount of hot water in the mix; however, this handle limit stop will not always prevent scalding because it does not compensate for Position 1, to the left, allows full handle motion (the full range between “all cold”...
