Models/Modelos/Modèles
594-DST & 794-DST
Series/Series/Seria
Linden™
Write purchased model number here.
Escriba aquí el número del modelo comprado.
Inscrivez le numéro de modèle ici.
For easy installation of your Delta
faucet you will need:
• To READ ALL the instructions completely
before beginning.
• To READ ALL warnings, care, and
maintenance information.
Para instalación fácil de su llave Delta
usted necesitará:
• LEER TODAS las instrucciones completamente
antes de empezar.
• LEER TODOS los avisos, cuidados, e
información de mantenimiento.
Pour installer votre robinet Delta
facilement, vous devez:
• LIRE TOUTES les instructions avant de débuter;
• LIRE TOUS les avertissements ainsi que toutes
les instructions de nettoyage et d'entretien;
www.deltafaucet.com
70649
SINGLE HANDLE LAVATORY
CENTERSET AND VESSEL FAUCETS
LLAVES MONOCONTROL DE MONTURA DE
CENTRO Y DE RECIPIENTE PARA LAVAMANOS
ROBINETS À UNE MANETTE POUR BASSIN
DE COMPTOIR ET

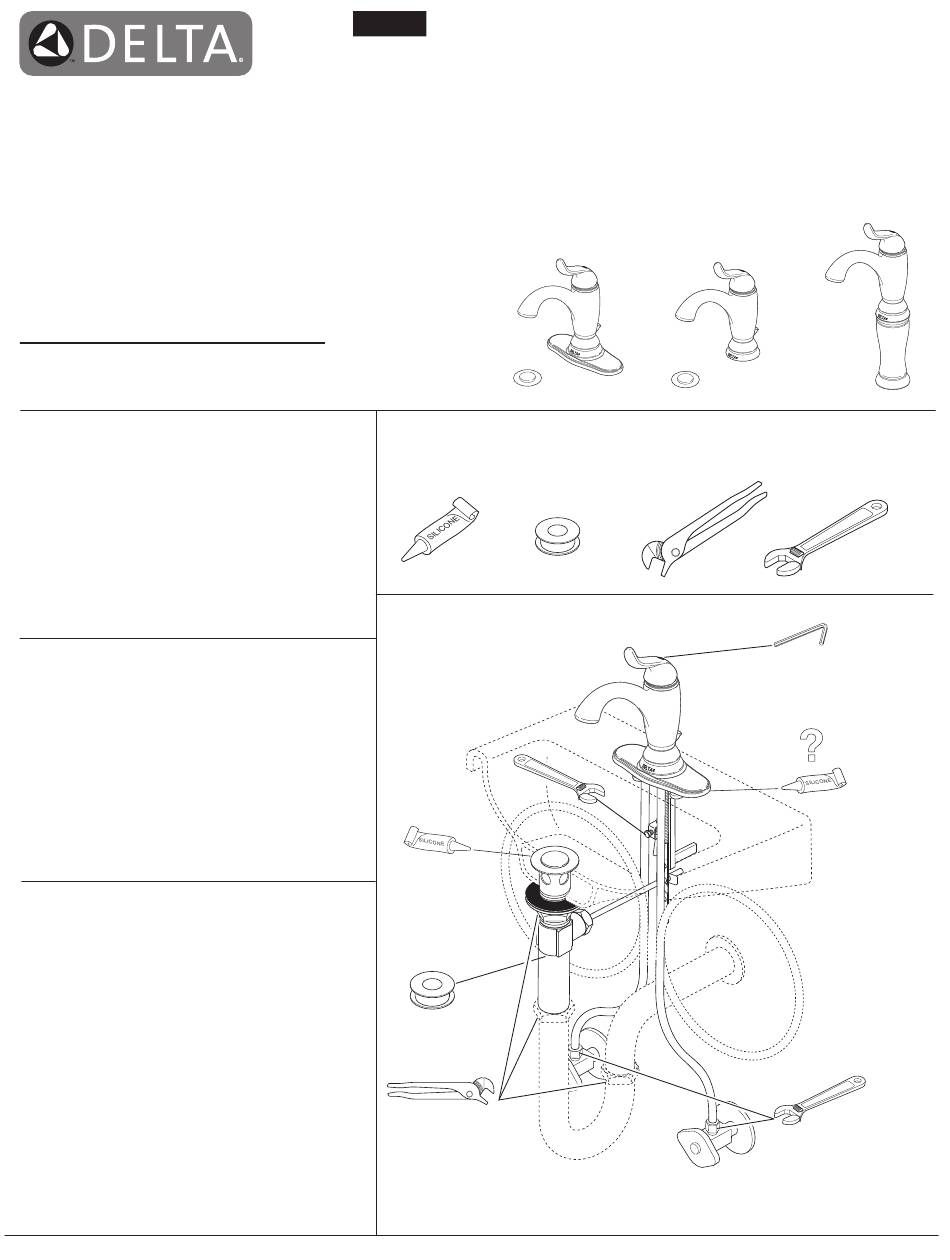

You may need/Usted puede necesitar/
Articles dont vous pouvez avoir besoin:
1
ENTRAXE COURT
T E FLO N
1/8"
(3.17mm)
6/29/15
Rev. E
Advertisement
Related Manuals for Delta Linden 594-DST Series
Summary of Contents for Delta Linden 594-DST Series
- Page 1 • To READ ALL warnings, care, and maintenance information. 1/8" (3.17mm) Para instalación fácil de su llave Delta usted necesitará: • LEER TODAS las instrucciones completamente antes de empezar. • LEER TODOS los avisos, cuidados, e información de mantenimiento.
-
Page 2: Cleaning And Care
® use and service. If repair or replacement is not practical, Delta Faucet Company may elect to January 1, 1995 and installed in the United States of America, Canada and Mexico. refund the purchase price in exchange for the return of the product. These are your exclusive remedies. - Page 3 For Three Hole Mount For Single Hole Mount Para Las Instalaciones De Tres Agujeros Para Las Instalaciones De Un Agujero Montage Sur Trois Trous Montage sur un trou For three hole mount: For single hole mount: Slide gasket (1) and escutcheon (2) up over tubes and mounting Slide single hole gasket (1) up over tubes and mounting stud.
- Page 4 Loop tubing created. Delta is not responsible for tubing that is • Tubing is cut too short: buy a coupling union and a (2) if it is too long.
- Page 5 Incorrect Installation Correct method Instalación Incorrecta Método Correcto Installation Incorrecte Bonne méthode Do not install sleeve Ensure cut is straight. upside down. No instale la manga Asegúrese que el Custom Fit Connections - Plastic Sleeve Installation Instructions boca abajo. corte esté recto. 1.
- Page 6 Step 3b Metal Pop-Up Remove pivot nut (1). Install horizontal Step 3c Remove stopper (1) and flange (2). Apply silicone to underside of flange (1). Insert rod (2) and stopper (3) as removable body (2) into sink. Screw flange (1) into body (2). (4) or non-removable (5).
- Page 7 Remove aerator (1) using supplied wrench (2) and turn faucet Check all connections at arrows for leaks. Retighten if necessary, handle (3) to the full on mixed position. Turn on hot and but do not overtighten. cold water supplies (4) and flush water lines for one minute. Important: This flushes away any debris that could cause damage to internal parts.
-
Page 8: Maintenance
Cleaning and Care Maintenance If faucet exhibits very low flow: Care should be given to the cleaning of this reinstalling parts, make sure bonnet nut (4) is A. Remove and clean aerator (1) with supplied tightened securely with a wrench.* product. - Page 9 Model / Modelo / Modèle 594-DST RP70623▲ RP37036 Handle, Red/Blue Button Set Screw ▲ Specify Finish & Set Screw Tornillo de Ajuste Especifíque el Acabado Vis de calage Précisez le Fini Manija, Botón Rojo/Azul y Tornillo de Ajuste Manette, Bouton Rouge/ RP54972▲...
- Page 10 Model / Modelo / Modèle 794-DST RP37036 Set Screw ▲ Tornillo de Ajuste Specify Finish RP70623▲ Vis de calage Especifíque el Acabado Handle, Button & Set Screw Précisez le Fini Manija, Botón l y Tornillo de Ajuste Manette, Bouton et Vis de Calage RP54972▲...
- Page 11 Notes / Notas / Notes 70649 Rev. E...
- Page 12 Notes / Notas / Notes www.deltafaucet.com 70649 Rev. E...
