Related Manuals for TieJus ZS-GQ2
Summary of Contents for TieJus ZS-GQ2

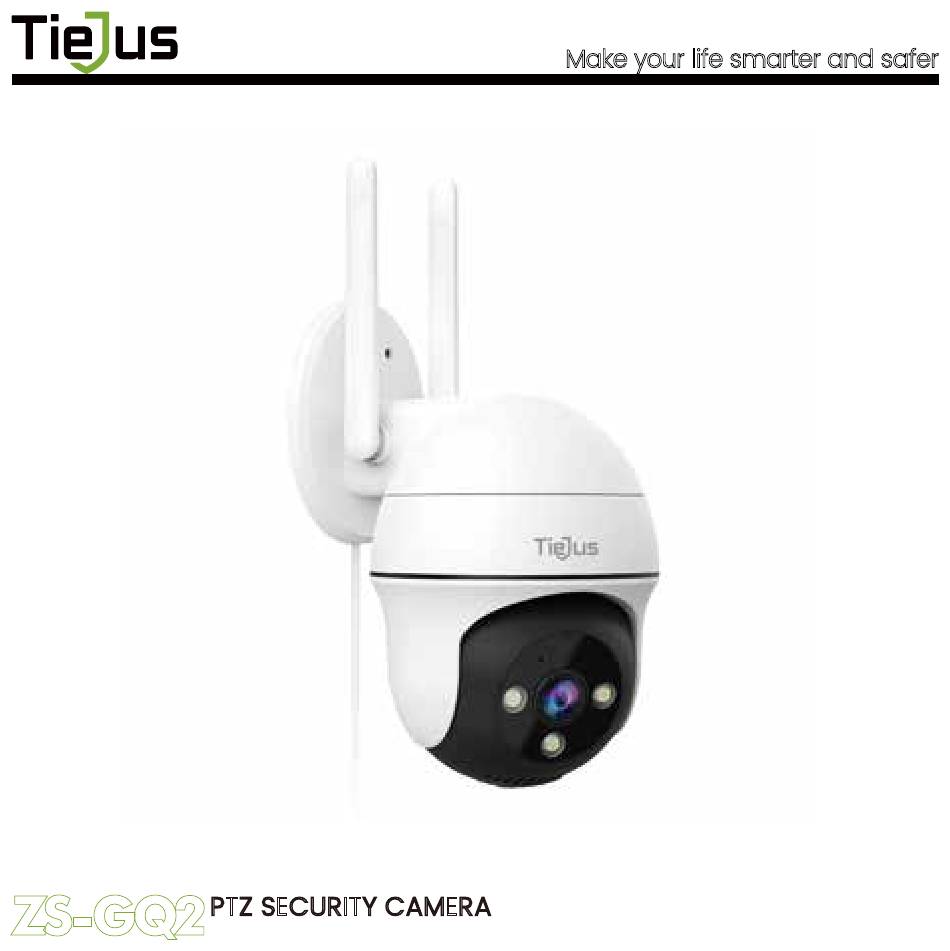

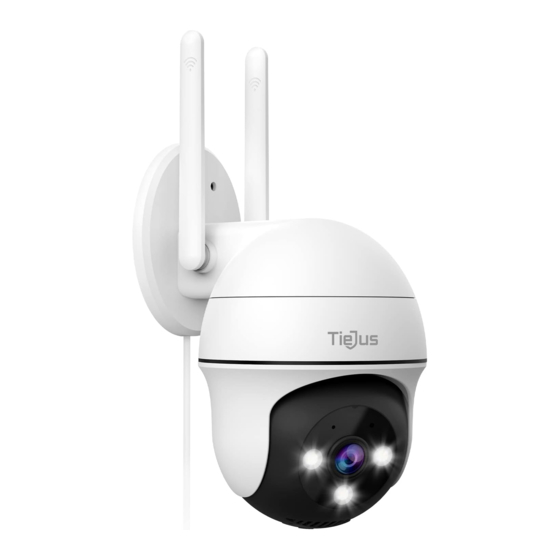

- Page 1 Make your life smarter and safer QUICK START GUIDE FCC ID：2AZL7-ZY-C6 ZS-GQ2 PTZ SECURITY CAMERA WIRED I WIFI I 24/7 RECORDING...
- Page 2 If you have any problems, please feel free to send us an E-mail. We will solve your problems within 24 hours. In addition, your advice or suggestions will be much appreciated and welcomed. Product Service Email: Tech@tiejus.com Distributor: distributor@tiejus.com More About Us Web: www.tiejus.com Facebook: www.facebook.com/zumimalloffice...
- Page 3 Brand Story TieJus is a young and fresh security brand that has attracted millions of technology enthusiasts in just 6 months of establishment. TieJus is committed to creating a smarter and easier modern lifestyle for consumers. Let more consumers enjoy convenient modern life without worrying about information security.
-
Page 4: Table Of Contents
INDEX PAGE 1. What’s in the Box ----------------------------------------- P1 2. Product Diagram ---------------------------------------- P2 3. Reset Camera ------------------------------------------ P3 4. Download and Install App --------------------------------- P4 5. Account Registration ------------------------------------- P5 6. Add Camera to App ------------------------------------- P5 6.1 Preparations for Connection -----------------------------P5 6.2 Connect Camera to App -------------------------------P6 7. - Page 5 INDEX PAGE 12. PIR Body Detection ------------------------------------- P1 1 12.1 Body Detection Alarm Setting -------------------------- P1 1 12.2 Alarm Notifications ---------------------------------- P12 12.3 Record/Playback/Delete ----------------------------- P12 13. Multi Device Management ------------------------------- P13 13.1 Multi Camera Management --------------------------- P13 13.2 Multi User Sharing ----------------------------------- P13 14.
-
Page 6: What's In The Box
1. What’s in the Box TIEJUS Camera * 1 Power Adapter *1 Quick User Guide *1 Screws Set *1... -
Page 7: Product Diagram
2. Product Diagram Wi-Fi Antenna SD Card Slot Reset Key Bracket Working Status Light Lens Speaker LED Light Power Button Keep pressing for 5-10 seconds to power on/power off Reset Button Keep pressing for 5-10 seconds to reset Blink Slowly in Red Awaiting Wi-Fi connection, ready for adding devices Blink Fast in Red Wi-Fi connecting... -
Page 8: Reset Camera
3. Reset Camera ① Keep pressing to remove device ② Press the reset button for 5-10s until hear the 'Boogu' sound ③ Reconnect as before… 5:48 5:51 Home Home All Devices Living room Bedroom All Devices Living room Bedroom 02- 1 6- 2 02 2 0 1: 56 :08 PM Tips 064958492 Are you sure you would like to... -
Page 9: Download And Install App
4. Download and Install App Download ZUMIMALL App from Google Play™ or App Store™. Or scan the QR codes as below, with your smart phone. NOTE: Google Play™ is a trademark of Google Inc. App Store™ is a service mark of Apple Inc. Android ZUMIMALL NOTE:... -
Page 10: Account Registration
5. Account Registration New user needs to sign up ZUMIMALL App with email address. Click 'Sign up' to create a New Account and follow the steps to complete registration. 5:51 5:51 5:51 Glad to meet you! < < Sign up Sign up >... -
Page 11: Connect Camera To App
6.2 Connect Camera to App 5:48 5:48 5:49 < Select Device Home Add Camera All Devices Living room Bedroom Battery Camera Battery Camera Smart (WIFI) Doorbell Power Plug Camera Please power on the device. Add Device Please place the camera & phone close to your router for the best signal. - Page 12 5:50 5:50 < < Connect Network Scan QR Code 02:06 Make sure the device in an energized state Make sure the device is connected to the router Scan the QR code below with the device Make sure the device and the phone are on the same network at a distance of 5-8 inches.
-
Page 13: Camera Installation
7. Camera Installation ① Use the screws provided to secure the camera where you want it to be mounted. ② Adjust the viewing angle of the camera. 8. Important Notes To reduce false alarms, please note that: ① Do not install the camera in a position facing strong lights/mirror/window/ swimming pool. -
Page 14: Monitoring Area
9. Monitoring Area ① It is not suggested to install the camera vertically towards the moving objects, otherwise, it may not detect the motion events or cause delay. ② It is suggested to make the angle between sensor and detected objects more than 10 degrees. -
Page 15: Device Menu
10. Device Menu 5:51 5:51 5:51 5:51 < < < 060238708 060238708(X1pro) 060238708 Home 02-16-2022 01:53:01 PM 02-16-2022 01:53:01 PM 02-16-2022 01:55:10 PM All Devices Living room Bedroom 0 2- 1 6 - 20 2 2 0 1:56 :08 PM Bit Rate:5KB/s WiFi:82% Bit Rate:5KB/s... -
Page 16: Two-Way Audio
11. Two - Way Audio 5:51 < 060238708 ① Open the microphone permission of ZUMIMALL APP. 02-16-2022 01:53:01 PM ② Long press the intercom button to start speaking, and the sound will be emitted from the camera at this time. Bit Rate:5KB/s WiFi:82% ③... -
Page 17: Alarm Notifications
12.2 Alarm Notification This camera supports 7*24 hours recording, and also supports event recording. Here are system's reactions: ① Alarm notifications with sounds from App. ② Pictures/videos automatically stored in Micro SD Card or Cloud. 12.3 Record/Playback/Delete ① On 'MESSAGES' page, click 'Alarm Messages', you can view all the records listed. ②... -
Page 18: Multi Device Management
13. Multi Device Management 13.1 Multi Camera Management Click '+' to add 5:51 5:48 more devices < Home 060238708 All Devices Living room Bedroom 0 2 -1 6 - 2 0 22 0 2 :5 0:1 0 PM Watch 4 cameras live at the same time 064958492 0 2 -1 6 - 2 0 22 0 3 :2 0:1 0 PM... - Page 19 5:49 5:49 5:51 5:48 < < Enter account Device Share Select Device Home All Devices Living room Bedroom 0 2 -1 6 -2 0 2 2 0 1 :5 6 : 0 8 PM Scan QR Code Enter account Recent Contacts Please enter the other party’s account 064958492 The device has not been shared with anyone.
-
Page 20: Faq
14. FAQ 1. Unable to connect network ① Check WiFi name and password (password cannot contain special symbols). ② Make sure WiFi is 2.4GHz, 5GHz is not supported. ③ Please make sure the camera and mobile phone are in the same WiFi environment when connecting, and add the camera near the router. - Page 21 6. No alarm video recording ① Make sure the camera is triggered. ② Ensure that the Micro SD card is inserted correctly and recognized successfully, or subscribe to cloud services. 7. No alarm push ① Open the phone settings, click the notification, find the "ZUMIMALL" APP, and open the permission notification.
- Page 22 10. Device offline ① Check whether the device is in sufficient state, and observe whether the camera status indicator lights up normally. ② Check whether the WiFi network is good, restart the router. ③ If the camera is installed far away from the router and cannot obtain a good WiFi signal, it is recommended to move the router to a closer place or install a WiFi signal extender to increase the WiFi strength.
- Page 23 14. No sound is heard when the device is talking ① Open the speaker button on the APP. ② Adjust the intercom volume in the settings. ③ Turn on the phone media volume. ④ Release the intercom button and listen to the other party. 15.
- Page 24 If you have other questions, please send us the SN number of your camera and describe the problem you have encountered, we will solve it as soon as possible. Email: Tech@tiejus.com How to find SN number? 5:51 5:51 5:51 <...
