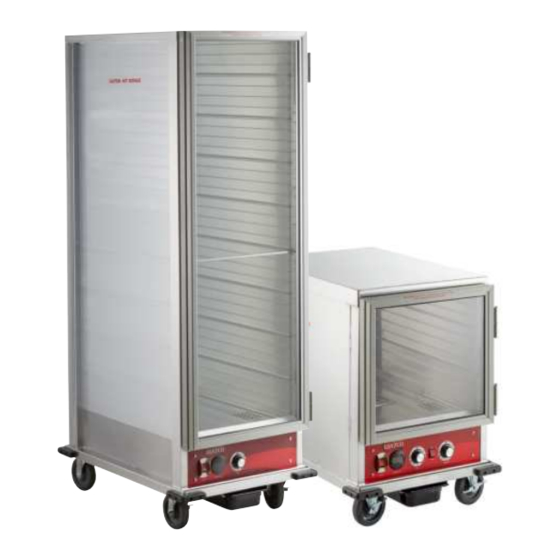

- Page 1 User Manual User Manual Heater/Proofer Cabinets Models: 177HEAT1836, 177HEAT1836I, 177HPI1812, 177HPI1836, 177HPU1812, 177HPU1836 01/2021 Please read and keep these instructions. Indoor use only. www.AvantcoEquipment.com...
-
Page 2: Table Of Contents
Water dripping onto the floor from open doors can be a slip hazard. Identifying Your Cabinet MADE IN CHINA For future reference, cord the cabinet model number and serial ITEM: 177HEAT1836I number found on the serial plate located on the rear of the cabinet. MANUFACTURER ITEM: DESCRIPTION : INSULATED FULL SIZE HEATING MODEL: _____________________________ SERIAL#: _________________ &... -
Page 3: General Information
Insulated 120V 1440W 23.1" x 33.4" x 31.6" 177HEAT1836 Heating Only Full Size Non-Insulated 120V 1440W 23.1" x 33.2" x 66.5" 177HEAT1836I Heating only Full Size Insulated 120V 1440W 23.1" x 33.4" x 67.5" 177HPU1836 Holding/Proofing Full Size Non-Insulated 120V 1440W 23.1"... -
Page 4: Installation
User Manual Installation 1. Upon delivery of the unit, check for shipping damage. Check the packaging and cabinet for shipping damage after unloading the unit, and after removing all packaging. Notify freight company immediately of shipping damage with pictures and description. 2. -
Page 5: Operating Instructions
User Manual Operating Instructions 1. Refer to the Serial Plate for electrical requirements. These cabinets are rated at 120V 1440W and must be plugged into a dedicated grounded 120V 15 or 20 Amp outlet. NOTE: modification of cord and plug will void warranty and may cause the unit to be inoperable. 2. -
Page 6: Service Specifications
User Manual HEATING/HOLDING INSTRUCTIONS The temperature range for heating/holding control is 80-185°F. The dial numbers 1-9 do not correspond or relate to a specific calibrated temperature. Exact temperature settings must be obtained through familiarization with the unit and are dependent on the ambient environment temperature and conditions where the unit is placed. The dial also has an OFF position to turn the heater off. -
Page 7: Recommended Temperature Guidelines-Food Holding Chart
User Manual Recommended Temperature Guidelines Food Holding Chart Food Product Covered/Uncovered Temperature Setting Baked Fish Uncovered 175°F Baked Potatoes Uncovered 180°F Biscuit Covered 180°F Broccoli Uncovered 170-175°F Chicken Nuggets Covered 175°F Corn on the Cob Uncovered 170-175°F Croissants Covered 175°F Egg Patties Uncovered 180°F... -
Page 8: Drawer Assembly
User Manual Drawer Assembly 177DRWRHP Drawer Diagram For Models 177HPU1812, 177HPI1812, 177HPU1836 & 177HPI1836 www.AvantcoEquipment.com... - Page 9 User Manual Drawer Assembly 177DRWRHEAT Drawer Diagram For Models 177HEAT1836 & 177HEAT1836I www.AvantcoEquipment.com...
- Page 10 User Manual Drawer Replacement Parts 177DRWRHP 177DRWRHP Item # Diagram # Photo Part No. Description Quantity Quantity HCD-030 Cable Bushing 177PCORD HCD-031 Power Cable HCD-026 Terminal Block 177PHCD035 HCD-035 Knob HCD-024 Thermometer Main Switch HCD-016 with Red Light Limit Temperature 177PHCD019 HCD-019 Thermostat...
-
Page 11: Cabinet Assembly
User Manual Cabinet Assembly 177HPI1836 Diagram www.AvantcoEquipment.com... - Page 12 User Manual Cabinet Assembly 177HPU1836 Diagram www.AvantcoEquipment.com...
- Page 13 User Manual Cabinet Assembly 177HEAT1836 Diagram only heat drawer www.AvantcoEquipment.com...
- Page 14 User Manual Cabinet Assembly 177HEAT1836I Diagram www.AvantcoEquipment.com...
- Page 15 User Manual Cabinet Assembly 177HPU1812 Diagram www.AvantcoEquipment.com...
- Page 16 User Manual Cabinet Assembly 177HPI1812 Diagram NONE www.AvantcoEquipment.com...
- Page 17 Use for Cabinets 177HPU1812 Half Size Rear Hanging Panel 177HPI1812 177HPU1836 177HPI1836 Full Size Rear Hanging Panel 177HEAT1836 177HEAT1836I 177HPU1812 08/09 Magnetic Strips (Top 1 pc., Left/Right 2 pcs. Included) 177HPI1812 177HPU1836 177HPI1836 08/09 Magnetic Strips (Top 1 pc., Left/Right 2 pcs. Included)
-
Page 18: Electric Schematic Power Supply
User Manual Electric Schematic Power Supply HEAT/PROOF Models (177HP Drawer) www.AvantcoEquipment.com... - Page 19 User Manual Only HEAT Models (177HEAT Drawer) www.AvantcoEquipment.com...
-
Page 20: Troubleshooting
User Manual Troubleshooting CAUTION Before disassembling unit, electrical power must be disconnected by unplugging the unit. Failure to unplug the unit prior to servicing may result in electrical shock. Each unit is shipped with this instruction manual and should be used as a reference guide for all service areas. The manual provides a picture of the drawer, showing the location of electrical components and a description of each. -
Page 21: Limited Replacement Warranty
Equipment Limited Warranty Avantco warrants its equipment to be free from defects in material and workmanship for a period of 1 year. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made within 1 year from the date of purchase of the equipment.
