Electric Countertop Food

Warmers/Cookers

Models:

177W50, 177W50CKR, 177W43

UNITS MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES

Please read and save these instructions for future reference. Indoor use only.

www.AvantcoEquipment.com

User Manual

01/2021

Table of Contents

Need help?

Do you have a question about the 177W50 and is the answer not in the manual?

Questions and answers

Summary of Contents for Avantco 177W50

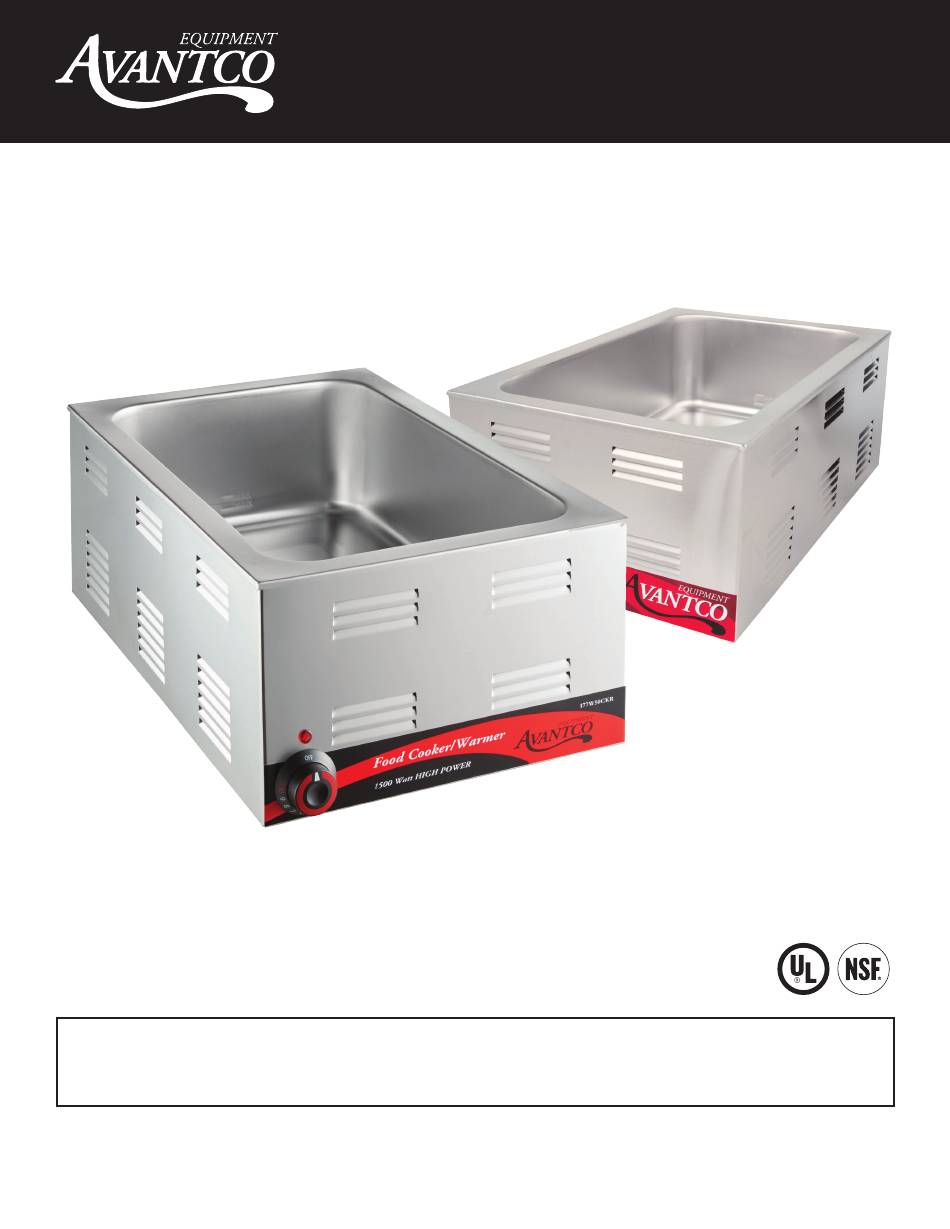

Page 1 User Manual User Manual Electric Countertop Food Warmers/Cookers Models: 177W50, 177W50CKR, 177W43 01/2021 UNITS MUST BE KEPT CLEAR OF COMBUSTIBLES AT ALL TIMES Please read and save these instructions for future reference. Indoor use only. www.AvantcoEquipment.com...
Page 2: Table Of Contents
User Manual NOTE: Save these instructions for future reference. Index Owners Information ................4 Safety Warnings ................. 4 Specifications ..................6 Operating Instructions ................7 General Cleaning................8 Troubleshooting .................. 9 Wiring Diagram ................. 10 Parts ....................11 Warranty .....................14 www.AvantcoEquipment.com...
Page 3: Owners Information
User Manual Owner's Information Please complete this information and retain this manual for the life of the equipment. For warranty purposes, please fill out and retain this information. An example of the serial plate(s) for these units are included below for reference. Model No.
Page 4: Safety Warnings
User Manual Avantco Electric Countertop Food Warmers are designed to keep foods at optimum serving temperatures without affecting quality. They are built for tough kitchen duty with rugged stainless steel construction and simply dial controls. Food Warmers keep everything from...
Page 5 User Manual ELECTRIC SHOCK HAZARD • Wire unit into properly grounded electrical panel of the correct voltage, size, and configuration. • Turn OFF power switch, unplug power cord/turn off power at circuit breaker, and allow unit to cool before performing any cleaning, adjustments, or maintenance. •...
Page 6: Specifications
• If the supply cord is damaged, the manufacturer or an authorized service agent or a similarly qualified person must replace it to avoid a hazard or NEMA 5-15P voiding the warranty. Model 177W50 177W50CKR 177W43 Style Warmer Warmer/Cooker Warmer Well Size Full - 12"...
Page 7: Operating Instructions
User Manual Operating Instructions General Information • Always clean equipment thoroughly before first use • Check rating label for your model designation and electrical rating • Ensure unit is proper installed by a qualified electrician WARNING: ELECTRICAL SHOCK HAZARD. FAILURE TO FOLLOW THE INSTRUCTIONS IN THIS MANUAL COULD RESULT IN SERIOUS INJURY OR DEATH.
Page 8: General Cleaning
User Manual Installation and First Use Instructions (continued) 4. Fill the unit with warm/hot water up to the “MAX” fill line but not below the “MIN” fill line. NOTE: Failure to keep proper water level way result in lower performance or even burnout 5.
Page 9: Troubleshooting
User Manual 2. Fill the water pan with a mixture of 75% water and 25% white vinegar to a level where it covers the lime and mineral deposits. 3. Install the water pan with deliming solution into the unit. 4. Plug in and turn on the unit. Allow the unit to run for 30 minutes. 5.
Page 10 User Manual 177W50 Parts List Item Part # Description 425001 Well 425002 Heating Element 1 425003 Heating Element 2 425004 Dissipator Plate 425005 Body 415005 Bottom Cover B00064 Power Cord B00065 Bushing B00063 Plastic Pad B00066 Thermostat B00067 Knob B00068...
Page 11 User Manual 177W50CKR Parts List Item Part # Description 415001 Well 415002 Heating Element 1 415003 Dissipator Plate 415004 Body 415005 Bottom Cover B00055 Power Cord B00065 Bushing B00063 Plastic Pad B00066 Thermostat B00067 Knob B00068 Pilot Light B00069 Limit Thermostat 415006 Clamp 415007...
Page 12 User Manual 177W43 Parts List Item Part # Description 435001 Well 435002 Heating Element 435003 Dissipator Plate 435004 Body 435005 Bottom Cover B00064 Power Cord B00065 Bushing B00063 Plastic Pad B00068 Pilot Light B00066 Thermostat B00067 Knob B00069 Limit Thermostat 415006 Clamp 415007...
Page 13: Warranty
Equipment Limited Warranty Avantco warrants its equipment to be free from defects in material and workmanship for a period of 1 year. This is the sole and exclusive warranty made by Avantco covering your Avantco brand equipment. A claim under this warranty must be made within 1 year from the date of purchase of the equipment.
