Hexnuts
SIDE VIEW
Brackets
11
TOP VIEW
9
14

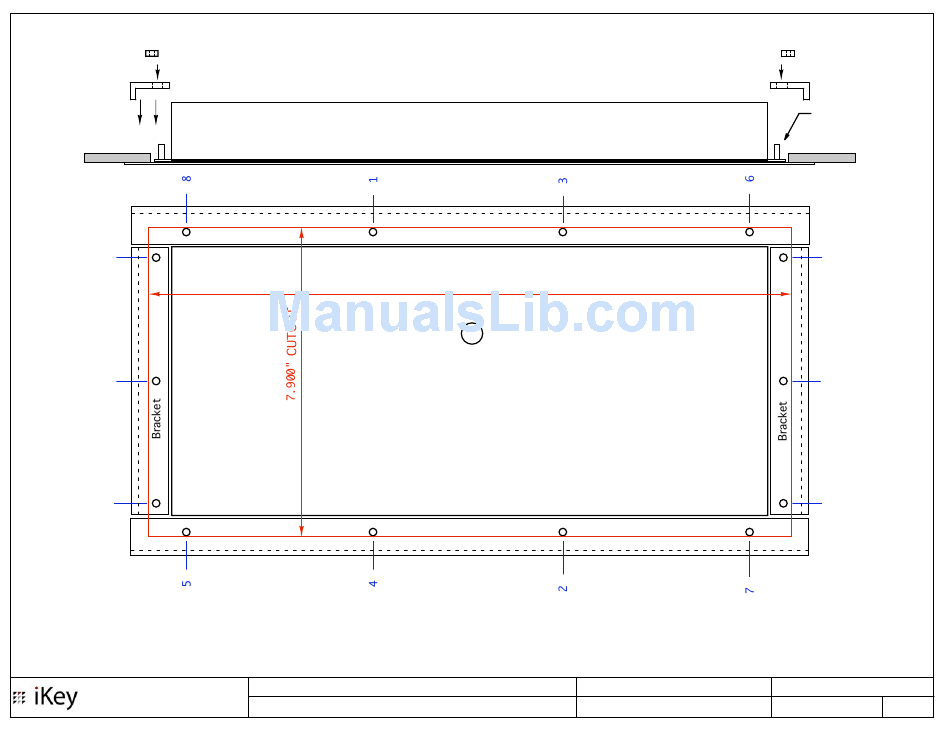

1. PLACE UNIT IN 7.9"X16.4" CUT PIT
2. PLACE 4 BRACKETS ON EACH SIDE AND HAND TIGHTEN LOCKING HEXNUTS OVER ALL 14 8-32 STUDS
3. TIGHTEN WITH TORQUE WRENCH (18-20 IN.LB.) IN ORDER SHOWN ABOVE
©2002 IKEY,LTD
iKey, ltd.
2621 Ridgepoint Dr. Ste 235
ph: (512) 837-0283
Austin, Texas 78754
fx: (512) 927-8530
Part Number: PM-1000 and PM-5K
Drawing Title: MOUNTING INSTRUCTIONS
REAR COVER
Bracket
16.400"
CUTOUT
REAR COVER
Bracket
Drawing Number: XXXX
Revision: 1.000
8-32 TH'D
STUD
13
10
12
Sheet:
1 OF 1
JKH
Date: 01.29.02
