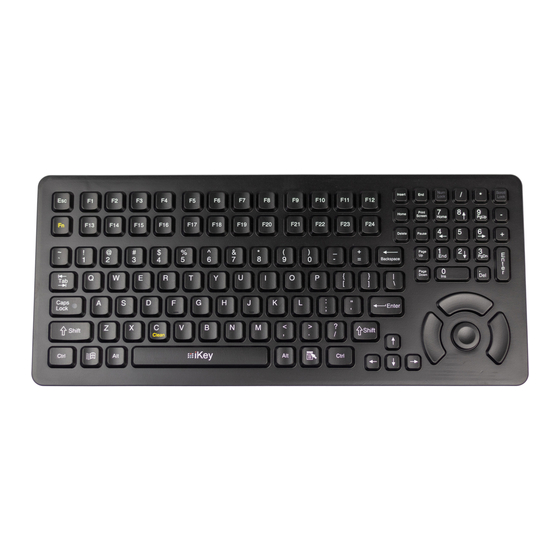

iKey DU-5K Dimensions & Features Manual

DW-5K
Esc F1 F2 F3
Fn F13 F14 F15
~ ! @ #
` 1 2 3
Q W E
Tab
A S
Caps
Lock
Z X
Shift
Ctrl Alt
KEY SWITCH
MATERIAL: Industrial Silicone Rubber
LIFE: Greater than 10 million cycles
TRAVEL: 0.055 in.
ACTUATION FORCE: 6.35 oz. (180g)
FEEDBACK: Tactile with Mechanical Snap
HUMIDITY
100% Humidity Resistant
©2007 IKEY,LTD
iKey, ltd.
2621 Ridgepoint Dr. Ste 235
ph: (512) 837-0283
Austin, Texas 78754
fx: (512) 927-8530
6.330"
centered
F4 F5 F6 F7 F8
F16 F17 F18 F19 F20
$ % ^ & * (
4 5 6 7 8 9
R T Y U I
D F G H J K
<
C V B N M
,
Alt
14.940"
POWER
4.5V from 3AA batteries
6 month average battery life
FLAMMABILITY
PRINTED CIRCUIT BOARD: 94VO
SILICONE OVERLAY: 94HB
INTERFACE CABLE: 94VO
Part Number: DW-5K

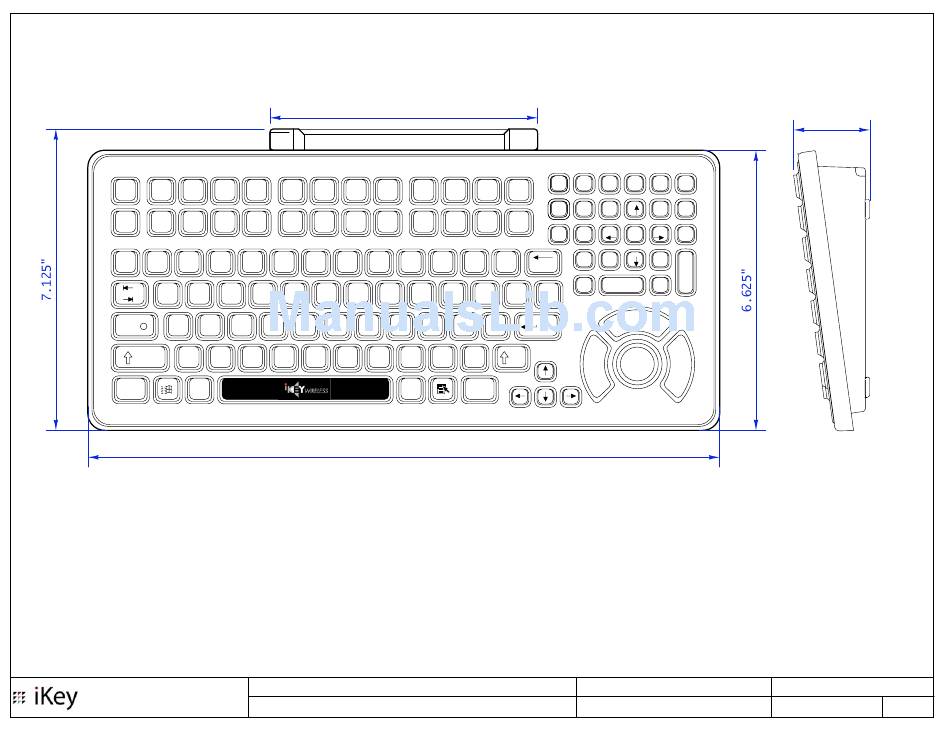

Drawing Title: DIMENSIONS/ FEATURES
Insert End
F9 F10 F11 F12
Print
Home
Screen
F21 F22 F23 F24
BIND
Delete Pause
) _ +
Page
Up
0 - =
Backspace
Page
{ }
|
O P Down
[ ]
\
:
L "
Enter
;
'
> ?
Shift
. /
Ctrl
Drawing Number: MKT0033
Revision: 1.000
Num Num Scroll
/
*
Lock Lock Lock
7 7 8 9
-
Home Home PgUp
4 5 6
+
1 2 3
E
End PgDn
n
t
e
.
r
0
Del
Ins
TEMPERATURE
STORAGE: -40º F to +194º F (-40º C to +90º C)
OPERATING: -40º F to +140º F (-40º C to +60º C)
SHOCK
3 X 11 ms pulses of 50g on each of 3 axis
VIBRATION
POWER SPECTRAL DENSITY: .04g/HZ
FREQUENCY RANGE: 20Hz-2Khz
DURATION OF TEST PER AXIS: 3 hours
Sheet:
Date: 08.29.05
1.800"
SCALE 1:2"
1 OF 2
JAE
