iKey DT-1000 Dimensions & Features Manual

DT-1000
Esc F1 F2 F3
F13 F14 F15
! @ #
~
1 2 3
`
Q E
W
Tab
A S
Caps
Lock
Z X
Shift
Control Alt
KEY SWITCH
MATERIAL: Industrial Silicone Rubber
LIFE: Greater than 10 million cycles
TRAVEL: 0.055 in.
ACTUATION FORCE: 6.35 oz. (180g)
FEEDBACK: Tactile with Mechanical Snap
HUMIDITY
100% Humidity Resistant
©2003 IKEY,LTD
iKey, ltd.
2621 Ridgepoint Dr. Ste 235
ph: (512) 837-0283
Austin, Texas 78754
fx: (512) 927-8530
F4 F5 F6 F7 F8 F9 F10
F16 F17 F18 F19 F20 F21 F22
$ % ^ & * ( )
4 5 6 7 8 9 0
R T Y U
I O P
D F G H J K L
N >
C V B M <
, .
Alt
16.250"
POWER
KEYBOARD: 5V@20ma (from CPU port)
FLAMMABILITY
PRINTED CIRCUIT BOARD: 94VO
SILICONE OVERLAY: 94HB
INTERFACE CABLE: 94VO
Part Number: DT-1000

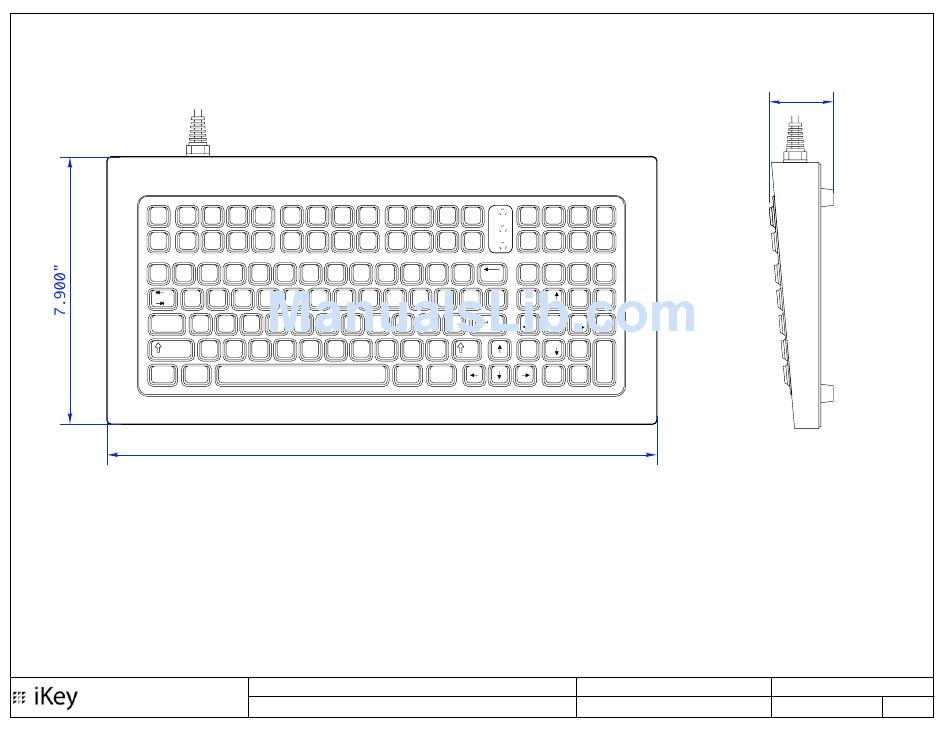

Drawing Title: DIMENSION/FEATURES
Num
Lock
F11 F12 Insert Home PgUp Prt Sc
Caps
Lock
Scroll
F23 F24 Delete End PgDn
Scroll Lock
Lock
_
+
Num Pause
/ *
- Backspace Lock Break
=
9
{ } | 7 8
-
[ ] \
Home PgUp
: 4 6
" 5
+
Enter
;
'
? 1 2 3
Shift
/
End PgDn
Enter
.
0
Control
Ins Del
Drawing Number: TIPDT1KMKT
Revision: 1.000
1.900"
TEMPERATURE
OPERATING: -40 F to +140 F (-40 C to +60 C)
STORAGE: -40 F to +194 F (-40 C to +90 C)
SHOCK
3 X 11 ms pulses of 50g on each of 3 axes
VIBRATION
POWER SPECTRAL DENSITY: .04g/HZ
FREQUENCY RANGE: 20Hz-2Khz
DURATION OF TEST PER AXIS: 3 hours
Sheet: 1 OF 1
Date: 10.21.03
JAE
