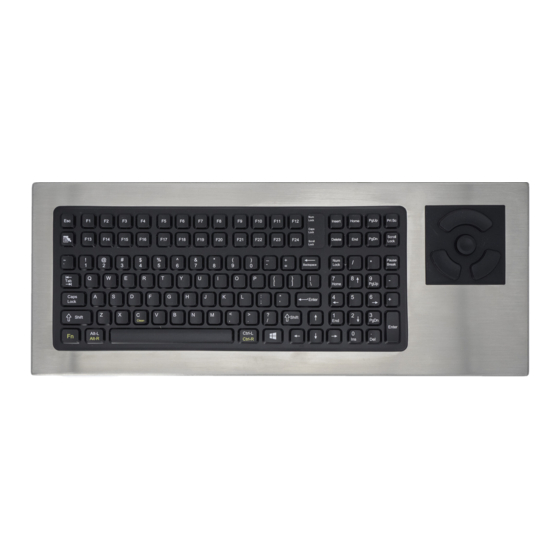

iKey DT-2000 Dimensions & Features Manual

DT-2000
KEY SWITCH
MATERIAL: Industrial Silicone Rubber
LIFE: Greater than 10 million cycles
TRAVEL: 0.055 in.
ACTUATION FORCE: 6.35 oz. (180g)
FEEDBACK: Tactile with Mechanical Snap
HUMIDITY
100% Humidity Resistant
©2007 IKEY,LTD
iKey, ltd.
2621 Ridgepoint Dr. Ste 235
ph: (512) 837-0283
Austin, Texas 78754
fx: (512) 927-8530
Esc F1 F2 F3 F4 F5 F6 F7 F8 F9 F10
F13 F14 F15 F16 F17 F18 F19 F20 F21 F22
! @ # $ % ^ & * ( ) _
~
` 1 2 3 4 5 6 7 8 9 0 -
Q W E R T Y U I O P
Tab
A S D F G H J K L :
Caps
Lock ;
Z X B N M < >
C V
Shift
, .
Alt Control
Control Alt
20.250"
POWER
KEYBOARD: 5V@20ma (from CPU port)
HULAPOINT: 5V@10ma (from mouse port)
FLAMMABILITY
PRINTED CIRCUIT BOARD: 94VO
SILICONE OVERLAY: 94HB
INTERFACE CABLE: 94VO
DT-2000
Part Number:

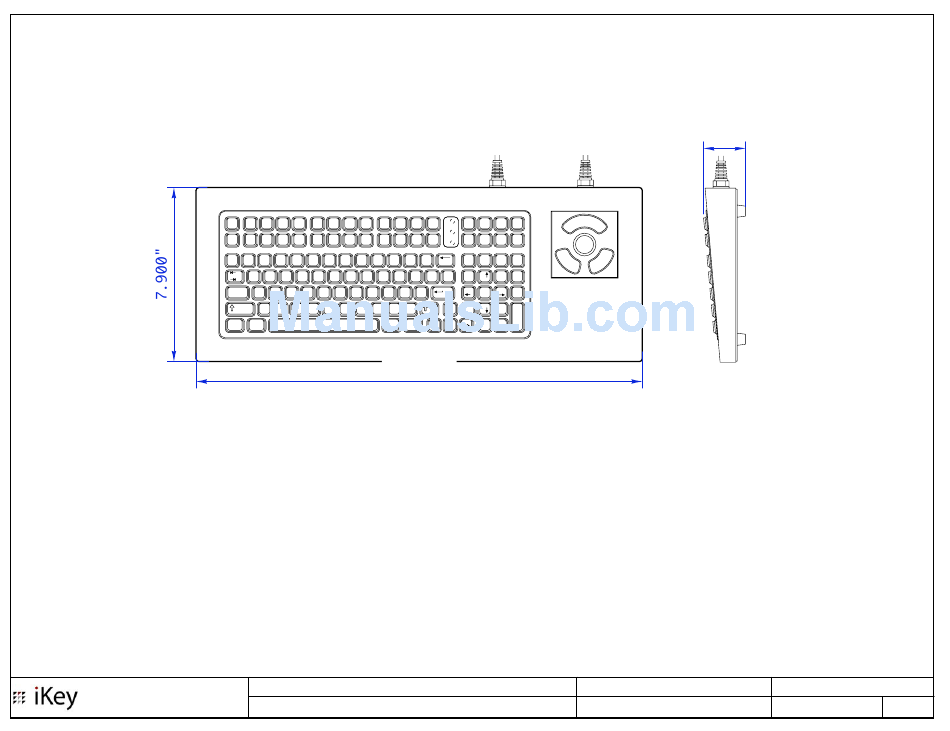

DIMENSIONS/FEATURES
Drawing Title:
Num
Lock
F11 F12 Insert Home PgUp Prt Sc
Caps
Lock
Scroll
F23 F24 Delete End PgDn
Scroll
Lock
Lock
+
Num Pause
/ *
Backspace
= Lock Break
{ } | 7 8 9
-
[ ] \
Home PgUp
" 4 5 6
Enter +
'
? 1
2 3
Shift
/
End PgDn
Enter
.
0
Ins Del
Drawing Number:
Revision: 1.000
1.900"
TEMPERATURE
STORAGE: -40º F to +194º F (-40º C to +90º C)
OPERATING: -40º F to +140º F (-40º C to +60º C)
SHOCK
3 X 11 ms pulses of 50g on each of 3 axis
VIBRATION
POWER SPECTRAL DENSITY: .04g/HZ
FREQUENCY RANGE: 20Hz-2Khz
DURATION OF TEST PER AXIS: 3 hours
DT-2000-MKT
Sheet:
Date: 12.04.03
SCALE 1:4"
1 OF 2
JAE
