Human Touch HT-5270 Manual

To ensure that Human Touch

products are repaired in a manner that is fully consistent with the practices used during the manufacturing process, Human Touch requires that all

product repairs are performed using only factory-new parts and in accordance with these product repair instructions.

Tools Required: Phillips-head screwdriver

SAVE ALL REMOVED PARTS FOR USE DURING REASSEMBLY

1. Use the remote control to fully deploy the foot and calf massager.

2. Power off the chair and unplug it.

3 Using a Phillips-head screwdriver, remove the eight screws that secure the safety sensor to the chair (Fig.1).

4. Detach the safety sensor from the chair enough to expose the canvas attachment to the chair frame, then detach the canvas (Fig.2).

HT-5270

Safety sensor

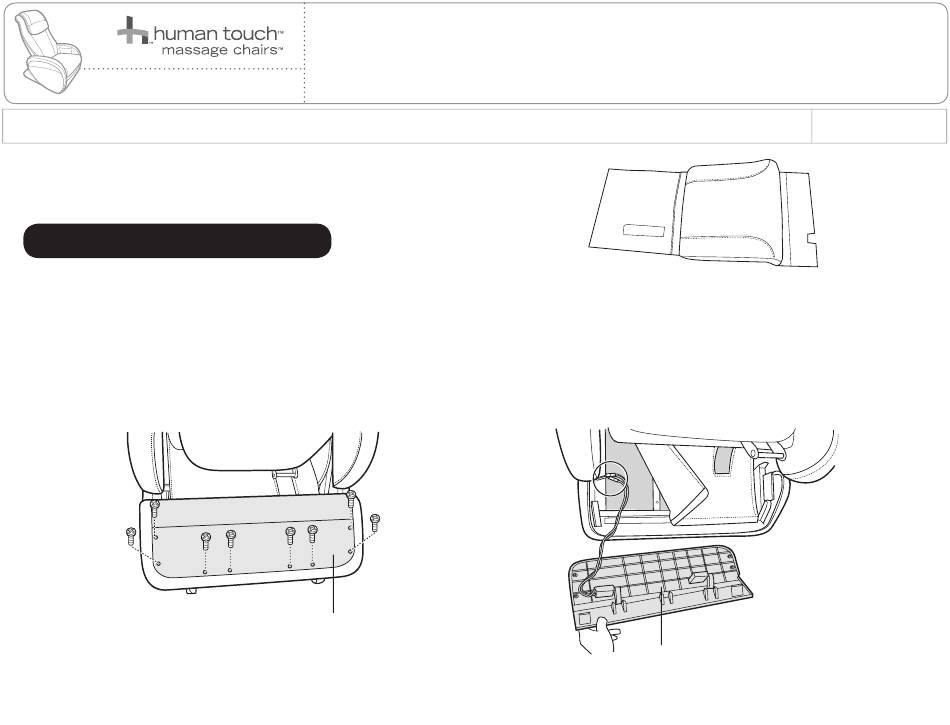

(Fig.1)

REPLACING THE SEAT PAD

Safety sensor

(Fig.2)

06/01/08

SERVICE LEVEL: 2

Seat pad
