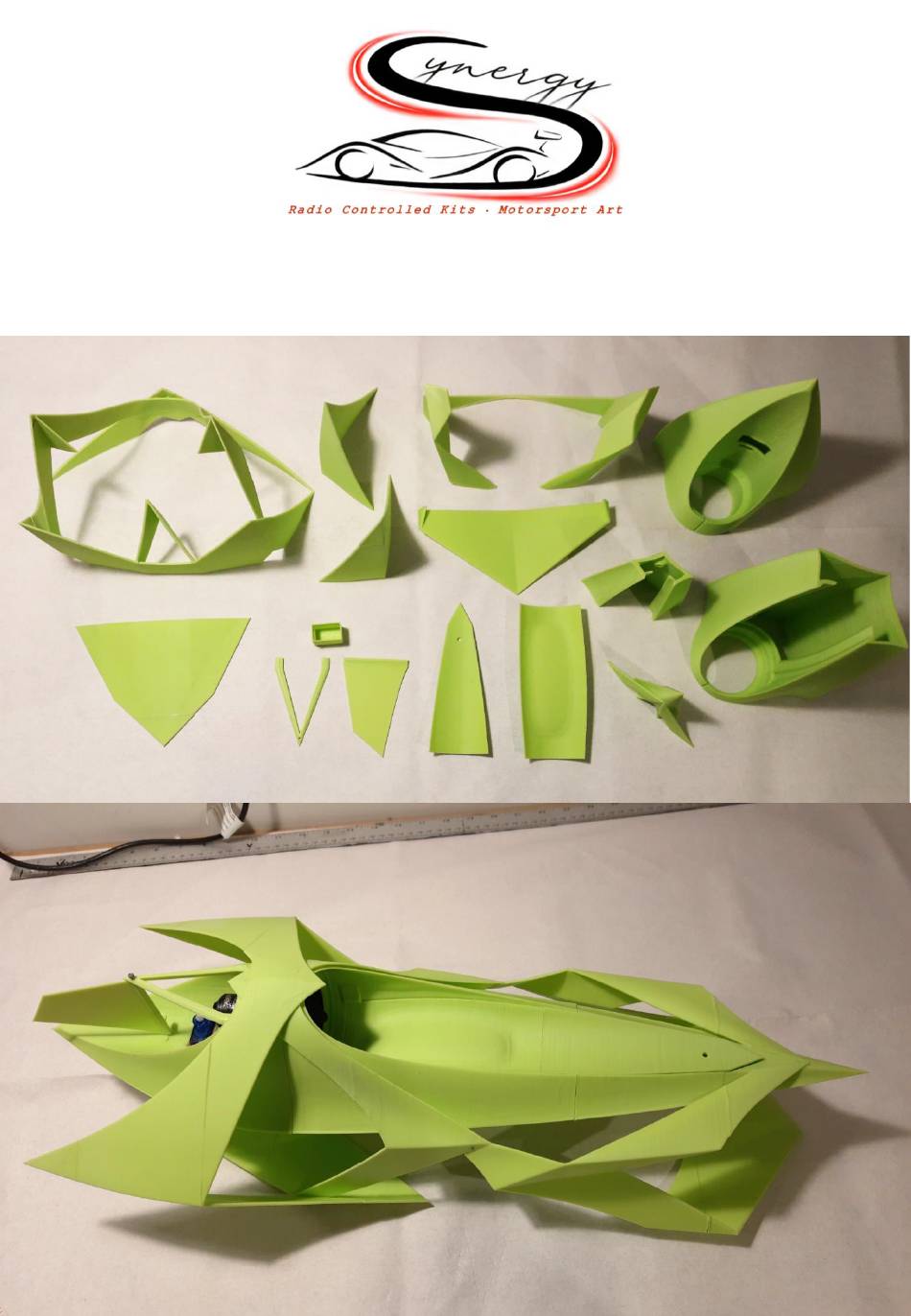

- Page 1 HB 02 Birdroni Assembly Instuction Manual...
-
Page 2: Table Of Contents
About This instruction manual contains the steps needed in order to assemble the HB–02 Birdroni, including the assembly of 3D printed parts, installation of waterproofing, and the installation of the electronics. You can refer to the electronics handbook here. Page Number About………………………………………………...………………………….. -
Page 3: 3D Printed Parts
3D Printed Parts Please Note: Your parts may differ slightly from the parts in the images shown, please rest assured that you have the latest and correct parts. Part 1: Nose Part 2: Second Hull Piece Part 3: Third Hull Piece Part 4: Fourth Hull Piece Part 7: Stopper Part 5: Front Cover Part 6: Rear Cover... -
Page 4: Non-3D Printed Parts
Non-Printed Parts Included in the kit Seal Servo Motor Glue and Activator Wire Cable Extensions M3 and M1 Bolts Wire, 1mm diameter Electronics: Not Included in the Kit Please Note: These may differer from your electronics. LiPo Battery Transmitter Receiver... -
Page 5: Before We Get Started
Before we get started: Safety Notices: Read the glue and activator label ad take care while using it. The glue sets very quickly and will stick to your skin if you’re not careful Take care when handling the 3D printed parts as some contain very sharp edges Recommendations: 1. -
Page 6: Kit Assembly Instructions
Kit Assembly Instructions Step 1 Prepare parts 3 and 4 • Follow the ‘Using Glue and Acticator Guide’, • here is a short summary: Test fit these together prior to gluing to • ensure the correct faces are bonded together Take the glue and apply it to one of the •... - Page 7 Step 5 Prepare the EDF and the hull, remove the • lip of the EDF if it has one. Test fit the EDF in the hull EDF mount by • inserting it from to front of the hull to the rear, notice how much clearance there is between it and the mount walls.
- Page 8 Step 8 Prepare the parts shown: part 8 and the • servo motor Note the servo motor had screw attachment • points removed for simpler mounting Notice the orientation of the servo relative • to part 8 Insert the servo into part 8 (following the •...
- Page 9 Step 12 Prepare the parts shown: part 13 and 14 • Notice the orientation of parts in the picture • and test fit the faces which are to be bonded together bond them together Ensure you follow the G&A Guide •...
- Page 10 Step 15 Prepare the parts shown: the hull, front • hydro surface and rear hydro surface Take care in the followings steps when • assembling these parts, it is crutial that they line up withthe bonding points so that the hydro surfaces are in the correct place These hydro surfaces attach to the hull in •...
- Page 11 Step 19 Prepare the parts shown: part 15 and the • wire Cut a piece of wire about 30mm long • using some scissors or wire cutters Test fit the wire inside of hinge hole of the • rudder from the underside. Pull the wire back out so you can see •...
-
Page 12: Electronics Installation Instructions
Step 23 Insert one of the tips into the steering arm • mount on the side of the rudder and the other into a servo arm. (you may find it easier to take the servo arm off to do this)) Press the wire so it hooks around both •... - Page 13 Installing the Electronics Step 1 Get all of the electronics ready, see page 1 for guidance • If your ESC isn’t waterproof it is recommended to waterproof it • Step 2 Plug EDF into the ESC • Place the ESC inside and tuck the •...
- Page 14 Step 5 Test your electronics, • Servo movement, move the servo control and • see the sservo movement Test the EDF by increasing the throttle slightly • and placing your hand behing the EDF You should feel air blowing on your hand, if •...
- Page 15 Step 7 Go out and enjoy yourself with your • very own HB-02 Birdroni!
