VegaStream Vega 50 10 FXO H.323 Initial Configuration Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
This document describes how to configure the Vega 50 10 FXO H.323 gateway using the web
browser interface. The configuration described here will allow the Vega to be rapidly installed and
tested.

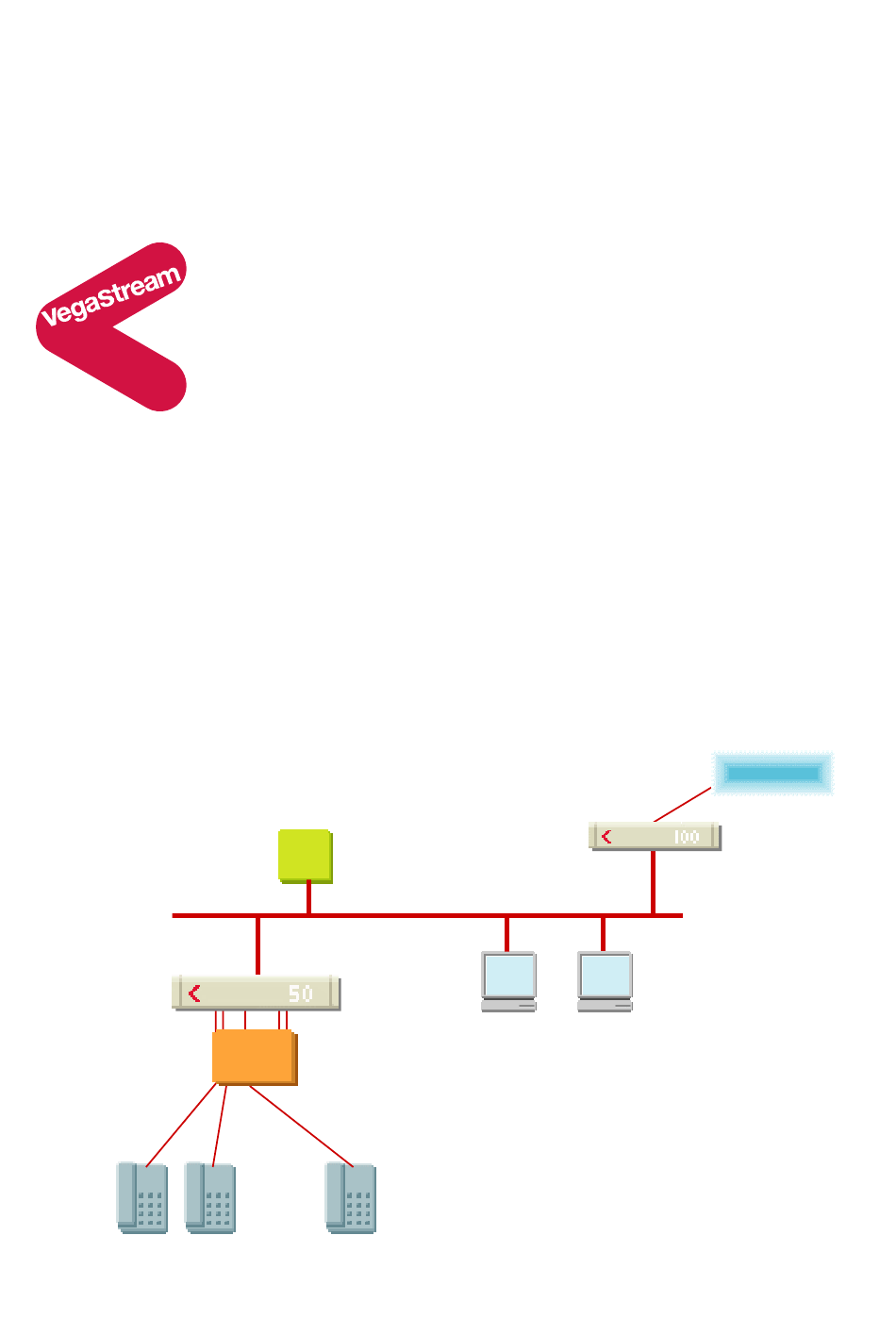

The instructions below will configure the Vega 50 FXO (connected to 10 extension ports of a PBX or a
CO Switch) to operate as follows:
•
Calls presented to the Vega from the PBX or CO switch will be routed using the H.323
gatekeeper; the telephone number passed to the gatekeeper will be the port ID on which the
call was received (06 .. 13 or 56, 57).
•
Calls received by the Vega on the H.323 interface will be routed to one of the telephony
interfaces. The physical interface over which the call is routed will be defined by the leading
two digits of the telephone number (06 .. 13 or 56, 57). The digits following the leading two
digits will be used as the digits to dial.
06
POTS Telephones
Version 0.4
For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater.
gk
H.323 Gatekeeper
Vega 50
05
10 FXO
13 56 57
...
pbx
...
Initial configuration
Vega 50
(H.323)
LAN
26 February 2004
10 FXO
– R5.2
pstn
© 2004 VegaStream Ltd.
Page 1 of 33

Advertisement

loading
Need help?

Need help?

Do you have a question about the Vega 50 10 FXO H.323 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VegaStream Vega 50 10 FXO H.323

Summary of Contents for VegaStream Vega 50 10 FXO H.323

  • Page 1 10 FXO (H.323) – R5.2 This document describes how to configure the Vega 50 10 FXO H.323 gateway using the web browser interface. The configuration described here will allow the Vega to be rapidly installed and tested. The instructions below will configure the Vega 50 FXO (connected to 10 extension ports of a PBX or a CO Switch) to operate as follows: •...
  • Page 2 Configure pointer to CD ROM documentation Save Changes Archive Vega Configuration Please also see: Technical Support Version 0.4 26 February 2004 Page 2 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 3 Power Switch CH 9, FXO 9 CH 1, FXO 1 Before installing your Vega, ensure that you read the VegaStream VoIP Gateways Safety and Compliance Information document. LAN: Using the yellow booted cable connect the LAN port on the Vega to a standard or fast Ethernet hub or switch (10 baseT or 100 baseTx).
  • Page 4 If this is not the IP address required, it can be overridden, together with other LAN parameters by typing: set lan.use_dhcp=0 set lan.ip=aaa.bbb.ccc.ddd set lan.subnet=eee.fff.ggg.hhh set lan.gateway=iii.jjj.kkk.lll save reboot system Version 0.4 26 February 2004 Page 4 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 5 Enter the IP address of the Vega into the “Address” field of your web browser. You will then be presented with the login page: Version 0.4 26 February 2004 Page 5 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 6 Username: admin Password: admin Select On the left hand side menu select Users Version 0.4 26 February 2004 Page 6 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 7 If the web interface is not used for this length of time the Vega will automatically log off the session. This change is only activated by logging out and back into the web browser session. Version 0.4 26 February 2004 Page 7 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 8 Optional: If there are any LAN values that need to be set up manually, set them up now (e.g. tftp and ftp addresses), then Select and then click “here” to return Version 0.4 26 February 2004 Page 8 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 9 Dial Plan Firstly, turn off the default profile: In the Profiles section Select Version 0.4 26 February 2004 Page 9 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 10 In the Profiles section, on Profile 2 (the new profile): Select Set Name = Outbound_To_LAN select and then click “here” to return Version 0.4 26 February 2004 Page 10 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 11 In the Profiles section, on Profile 2 (the new profile): Select In the Plans in this Profile, Plan ID 1: Select Version 0.4 26 February 2004 Page 11 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 12 “here” to return … to return to the Dial Planner Profiles section Select Version 0.4 26 February 2004 Page 12 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 13 “The Dial Planner” in the Vega Primer. Version 0.4 26 February 2004 Page 13 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 14 6. Configure for Gatekeeper operation On the left hand side menu select H.323 Select Select Version 0.4 26 February 2004 Page 14 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 15 Scroll to the bottom of the page Version 0.4 26 February 2004 Page 15 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 16 If more than one alias is required then select and configure as required. Version 0.4 26 February 2004 Page 16 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 17 Add more codecs so that by default the Vega will handle calls with any of the codecs it supports. In H.245 Capabilities Select Version 0.4 26 February 2004 Page 17 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 18 “here” to return Modify all H245 Cap ID entries until the list looks as follows: Version 0.4 26 February 2004 Page 18 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 19 Adjust them so that they have the capabilities as indicated below: Scroll to the bottom of the Media Channels page Version 0.4 26 February 2004 Page 19 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 20 T.38 codec is offered (as configured here), because if both are offered negotiations do not always complete correctly. Version 0.4 26 February 2004 Page 20 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 21 Now configure the FXO ring cadence detector so that it detects incoming ring cadences correctly: On the left hand side menu select POTS Version 0.4 26 February 2004 Page 21 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 22 Scroll down to the bottom of the page, to the FXO ring-detection parameters section Version 0.4 26 February 2004 Page 22 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 23 Select Version 0.4 26 February 2004 Page 23 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 24 Ring tones parameters Country Ring tone values Longest silence 2000ms 4000ms Shortest ring 400ms 2000ms Version 0.4 26 February 2004 Page 24 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 25 On the left hand side menu select POTS Select Advanced POTS Scroll down to the FXO Configuration section Version 0.4 26 February 2004 Page 25 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 26 In the FXO Configuration Hardware Profile Configuration section select Version 0.4 26 February 2004 Page 26 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 27 - 600R (typically US) - 900R - default select and then click “here” to return Version 0.4 26 February 2004 Page 27 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 28 On the left hand side menu select Scroll to the bottom of the screen Select Advanced LAN Version 0.4 26 February 2004 Page 28 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 29 (Substitute appropriate drive letter if D: is not the CD-ROM) select and then click “here” to return Version 0.4 26 February 2004 Page 29 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.

  • Page 30: Save Changes

    The Vega will reboot and once back on-line, it will be ready to take its first call. Version 0.4 26 February 2004 Page 30 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 31 If the ftp server requires a login username and password configure the following: set _advanced.lan.ftp.anonymous_login=0 set _advanced.lan.ftp.username=<ftp username> set _advanced.lan.ftp._password-<ftp password> Version 0.4 26 February 2004 Page 31 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
  • Page 32 12. Technical Support Support information can be found on the VegaStream Support web site www.VegaAssist.com If you require help from VegaStream support personnel, please use the serial interface or telnet into the unit, log in and then type: show support...
  • Page 33 Berks RG12 1RE FL 33431 +44 (0) 1344 784900 +1 561 995 2300 Version 0.4 26 February 2004 Page 33 of 33 For use with Vega 50 10 FXO – H.323 version 09.01.05.2 T004 or greater. © 2004 VegaStream Ltd.
